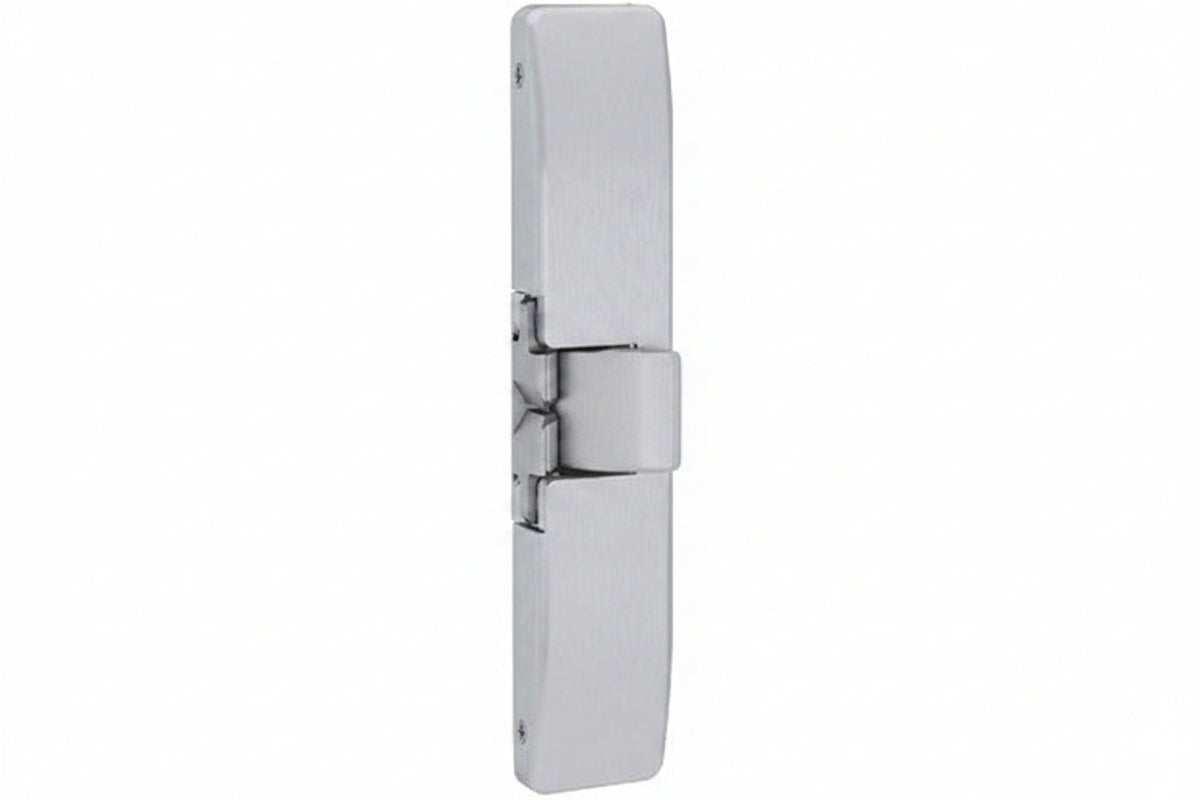

HES 9500-630 9500 Series Surface Mounted Electric Strike, Fire Rated, Satin Stainless Steel

The HES 9500 Series is a three-hour fire-rated, surface-mounted electric strike engineered for demanding security applications. Designed to work with rim exit devices featuring a 3/4" Pullman latch, this solution requires no frame cutting—simply mount it to the surface, align with the latchbolt, and secure. Built from 3/4" thick stainless steel, the 9500 delivers exceptional durability with static strength of 1,500 lb and dynamic strength of 70 ft-lb. The endurance rating of 1,000,000 cycles ensures long-term reliability in high-traffic environments. Its modular design separates the base from the decorative cover, making field adjustments straightforward. This strike accommodates both metal and wood frames and is fully outdoor-rated, exceeding Grade 1 standards for strength and performance. Field-selectable configuration allows you to choose fail-safe or fail-secure operation and select between 12 or 24VDC power. Horizontal adjustability provides installation flexibility, while tamper-resistant construction protects against unauthorized tampering. NFPA 80-07 compliant for retrofit applications into fire-rated frames, the HES 9500 combines professional-grade security with practical installation and maintenance benefits.
