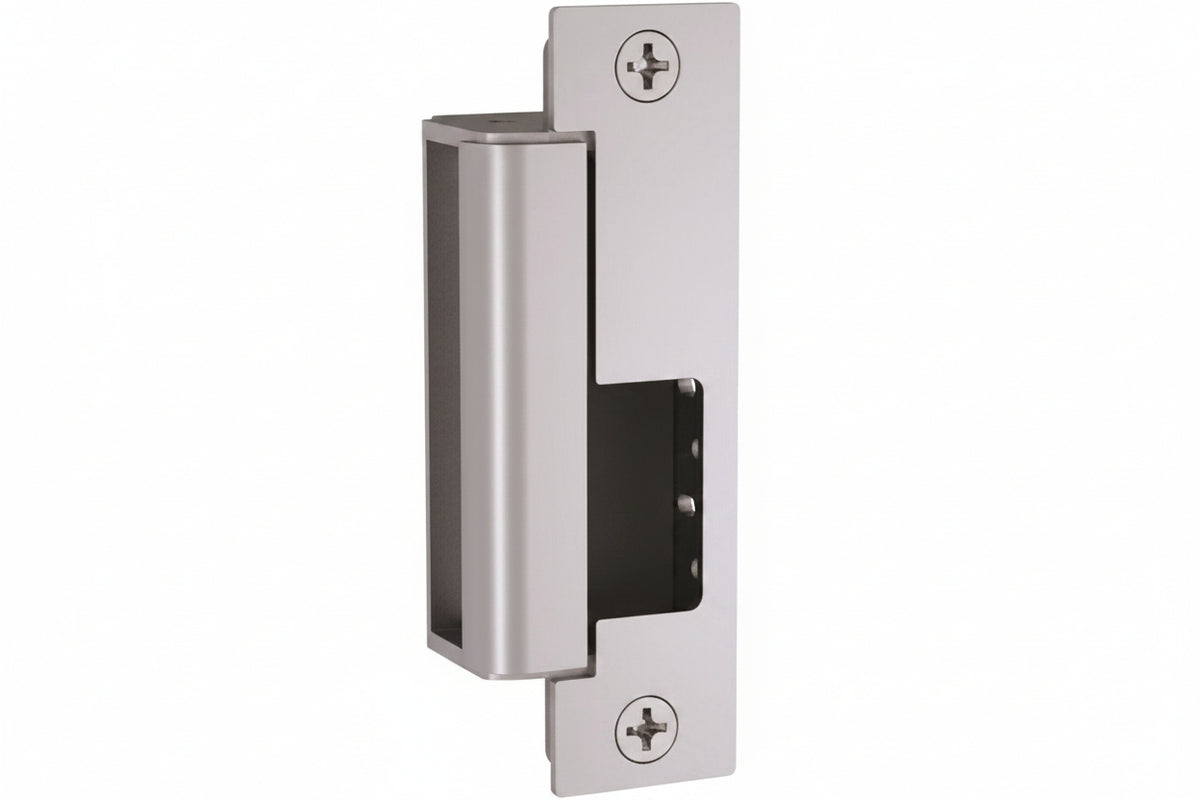

HES 1500C-630-LMS 1500 Series Complete Pac Electric Strike with 1LB Faceplate Kit for Latchbolts, Lock Monitor and Strike Monitor, Satin Stainless Steel

Name: HES 1500C-630-LMS 1500 Series Complete Pac Electric Strike with 1LB Faceplate Kit for Latchbolts, Lock Monitor and Strike Monitor, Satin Stainless Steel
Brand: HES
SKU: Raz-1500C-630-LMS
Price: 888.0 USD
Availability: InStock

Strike it secure.

A heavy-duty fail secure electric strike for latchbolt locks. This complete pac includes the 1LB faceplate kit and is rated for 1,000,000 cycles.

$888.00

In stock

Fast shippingHESSecure checkout

HES 1500C-630-LMS Complete Pac Electric Strike

Fire-rated, 1-1/2 hour double doorUL 10C

Fail secure (standard)12V DC, 250mA

A door strike has to hold up and fit the frame.

Doors and frames rarely line up perfectly, and busy entrances put a strike through constant use. The 1500 Series is built heavy-duty and tamper resistant, with a keeper that adjusts to the frame.

Without itWithout it, a misaligned door and frame can leave you working around a strike that does not fit.

✓

With the 1500C-630-LMSWith it, the horizontally adjustable keeper allows for door and frame misalignment, and the plug-in connector simplifies wiring.

What you get

Built for demanding doors

The 1500 Series pairs rugged construction with fire-door and windstorm ratings.

Heavy-duty, tamper resistant

Tamper resistant, heavy-duty construction with an endurance rating of 1,000,000 cycles.

HES 1500C-630-LMS 1500 Series Complete Pac Electric Strike with 1LB Faceplate Kit for Latchbolts, Lock Monitor and Strike Monitor, Satin Stainless Steel

1,000,000

cycle endurance rating

Rated for one million cycles of use.

Fire-rated

UL 10C fire-rated for a 1-1/2 hour double door and conformant to CAN4-S104 (ULC-S104) fire door standards.

Adjustable keeper

A horizontally adjustable keeper allows for door and frame misalignment, with a 1/2" keeper depth (310-2).

Windstorm resistant

Meets ANSI/SDI 250.13 windstorm resistance requirements.

Details

Everything you need to know.

Brand	HES
Model	1500C-630-LMS
Series	1500
Security Configuration	Fail Secure
Input Voltage	12V DC
Input Current	250mA
Holding Strength	70lb
Door Handling	Non-Handed
Material	Stainless Steel
Width	1.25"
Height	4.88"
Compatible Door Frame Type	Metal

Description

HES 1500C-630-LMS 1500 Series Complete Pac Electric Strike with 1LB Faceplate Kit for L...

Heavy-duty electric strike engineered for latchbolt applications in cylindrical and mortise locksets with 3/4" latchbolts. This complete package pairs a reliable strike body with a 1LB faceplate kit for straightforward installation. Built for demanding environments with tamper-resistant, heavy-duty construction. UL 10C fire-rated for 1-1/2 hour double doors and compliant with fire door standards. Meets ANSI/SDI 250.13 windstorm resistance requirements with an endurance rating of 1,000,000 cycles. Horizontally adjustable keeper accommodates door and frame misalignment. Features 1/2" keeper depth, non-handed design for flexible mounting, and fail-secure operation as standard. Plug-in connector simplifies wiring and maintenance. Finished in satin stainless steel for corrosion resistance and a clean, professional appearance. Ideal for commercial security applications requiring reliable access control with proven durability and compliance.

Good to know: Fail secure is standard, and the strike is non-handed. The spec sheet lists a metal door frame type and a 12V DC input.
