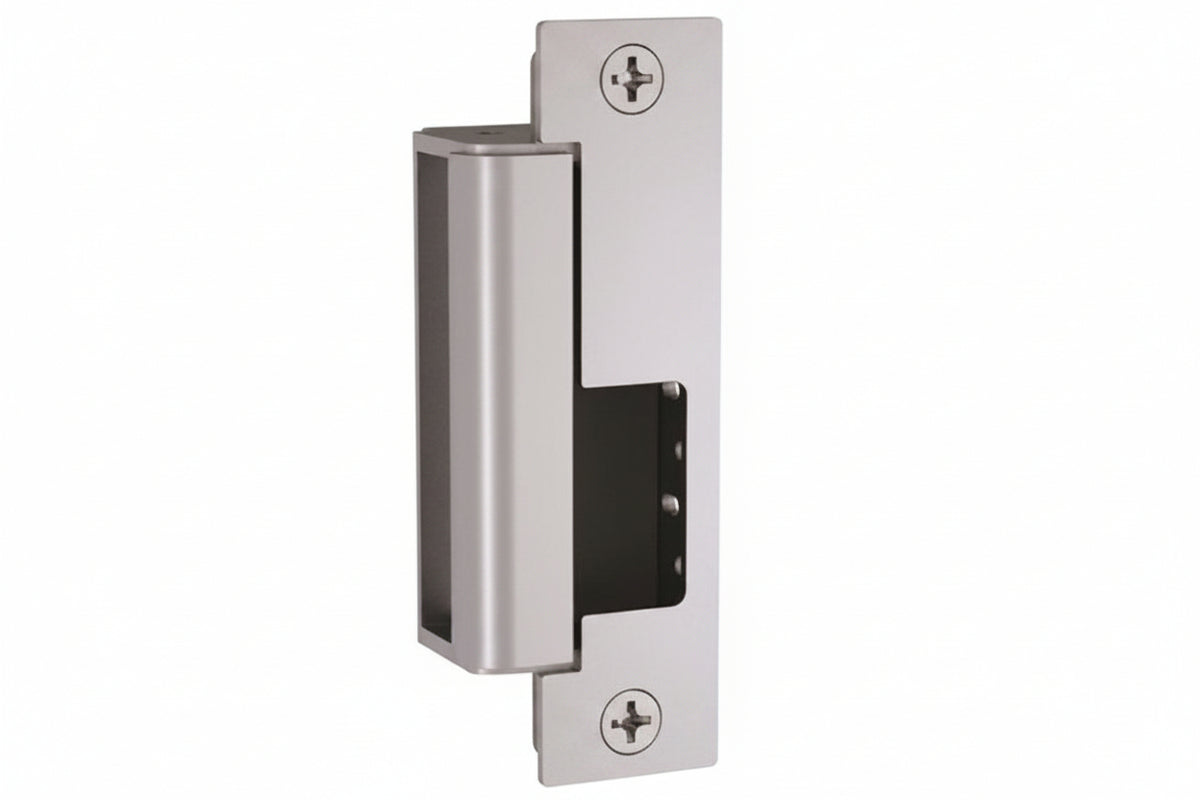

HES 1500C-630-LM 1500 Series Complete Pac Electric Strike with 1LB Faceplate Kit for Latchbolts, Lock Monitor, Satin Stainless Steel

Name: HES 1500C-630-LM 1500 Series Complete Pac Electric Strike with 1LB Faceplate Kit for Latchbolts, Lock Monitor, Satin Stainless Steel
Brand: HES
SKU: Raz-1500C-630-LM
Price: 870.0 USD
Availability: InStock

Locked tight, always monitored.

A heavy-duty, low-profile stainless steel electric strike for latchbolt locks. It releases the door on command and its lock monitor reports the lock status.

$870.00

In stock

Fast shippingHESSecure checkout

HES 1500C-630-LM Complete Pac Electric Strike

Fail secure, 12V DC450mA input current

UL 294 (6th Edition) listedANSI/BHMA A156.31, Grade 1

A door should only open for the right person.

Access control is only as dependable as the strike holding the door. You need to know it is built to code, holds firm and can report its own status.

Without itWithout a monitored strike, you can only assume the door is latched and holding.

✓

With the 1500C-630-LMThe 1500C-630-LM holds with 70lb of strength and its lock monitor reports lock status to your system.

What you get

Built to code, built to last

The 1500 Series pairs a Complete Pac with fire, windstorm and endurance ratings.

Lock status monitoring

The included lock monitor supports security integration by reporting the status of the lock.

HES 1500C-630-LM 1500 Series Complete Pac Electric Strike with 1LB Faceplate Kit for Latchbolts, Lock Monitor, Satin Stainless Steel

1,000,000

cycles of endurance

Rated for one million cycles in a stainless steel body.

Fire-rated construction

UL 10C fire-rated for 1-1/2 hour double door, and conformant to CAN4-S104 (ULC-S104) and NFPA-252.

Windstorm and code approved

ANSI/SDI 250.13 windstorm resistant and Florida Building Code approved under TAS 201, 202, 203.

Complete Pac, non-handed

The strike body and 1LB faceplate kit come together, and the non-handed design suits left or right-hand mounting.

Details

Everything you need to know.

Brand	HES
Model	1500C-630-LM
Security Configuration	Fail Secure
Input Voltage	12V DC
Input Current	450mA
Holding Strength	70lb
Material	Stainless Steel
Finishing	Satin
Door Handling	Non-Handed
Features	Lock Status Monitoring
Compatible Door Frame Type	Metal
Certifications & Standards	UL Listed

Description

HES 1500C-630-LM 1500 Series Complete Pac Electric Strike with 1LB Faceplate Kit for La...

Heavy-duty, low-profile electric strike engineered for latchbolt applications on cylindrical and mortise locksets with 3/4" latchbolts. Stainless steel construction delivers durability and corrosion resistance. Complete Pac includes strike body and 1LB faceplate kit for simplified installation and flexibility across multiple lock types. Non-handed design accommodates left or right-hand mounting. Fire-rated and code-compliant: UL 10C (1-1/2 hour double door), CAN4-S104 fire door conformant, NFPA-252 fire door conformant, and Florida Building Code approved. Windstorm resistant per ANSI/SDI 250.13 and rated for 1,000,000 cycles of endurance. Meets ANSI/BHMA A156.31 Grade 1 and UL 294 (6th Edition) standards. Lock monitor included for enhanced security integration.

Good to know: The spec table lists the compatible door lock type as Rim Exit, while the product description refers to latchbolt locks. Confirm your lock is compatible before ordering.
