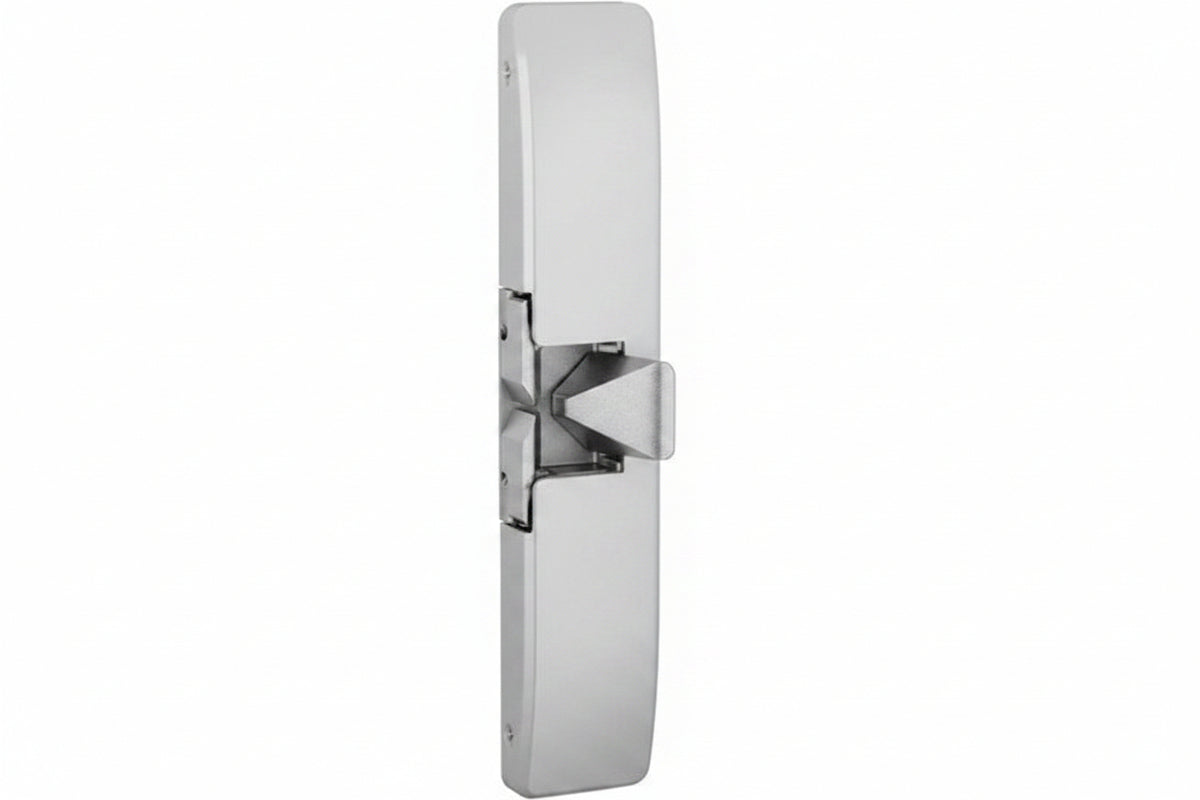

HES 9500-12/24D-630-LBM 9500 Series Surface Mounted Electric Strike with Latchbolt Monitor, Fire Rated, Satin Stainless Steel

Name: HES 9500-12/24D-630-LBM 9500 Series Surface Mounted Electric Strike with Latchbolt Monitor, Fire Rated, Satin Stainless Steel
Brand: HES
SKU: Raz-9500-12/24D-630-LBM
Price: 901.0 USD
Availability: InStock

Fire-rated entry, no frame cutting.

A 3 hour fire rated, surface mounted electric strike for rim exit devices with a 3/4" Pullman latch. Place it on the frame, align it with the latchbolt and secure it.

$901.00

In stock

Fast shippingHESSecure checkout

HES 9500-630-LBM Surface Mounted Electric Strike

3 hour fire ratedSurface mounted, no frame cutting

Latchbolt MonitorFail secure / fail safe, field set

Cutting a fire-rated frame is slow and risky.

Rim exit doors still need electric control, and a strike that fits the frame without cutting keeps the retrofit simple.

Without itYou cut into the frame to fit a mortise strike, then work around a fire-rated opening.

✓

With the 9500-12/24D-630-LBMThe 9500 sits on the surface of the frame, with every component enclosed in a 3/4" thick stainless steel housing.

What you get

Built for rim exit doors

The 9500 Series pairs a surface mount with strength and flexibility for fire-rated openings.

Field selectable operation

Set the strike to fail secure or fail safe in the field.

HES 9500-12/24D-630-LBM 9500 Series Surface Mounted Electric Strike with Latchbolt Monitor, Fire Rated, Satin Stainless Steel

1,000,000

cycles of endurance

Backed by 1,500 lbs static strength and 70 ft-lbs dynamic strength.

Easy adjustments

A separate base and decorative cover make adjustments easier, with horizontal adjustability built in.

Metal or wood frames

Installs in metal or wood frames, and the non-handed design suits either door swing.

Tamper resistant steel

Stainless steel construction with a tamper resistant design for long-term security performance.

Details

Everything you need to know.

Brand	HES
Model	9500-12/24D-630-LBM
Series	9500
Fire Rating	3 hour
Compatible Door Lock Type	Rim Exit
Security Configuration	Fail Secure
Input Voltage	12V DC
Input Current	450mA
Material	Stainless Steel
Depth	0.75"
Height	9.00"
Door Handling	Non-Handed

Description

HES 9500-12/24D-630-LBM 9500 Series Surface Mounted Electric Strike with Latchbolt Moni...

The durable fire-rated surface-mounted electric strike solution. This three-hour fire-rated strike accommodates rim exit devices with a 3/4" Pullman latch and installs without frame cutting—simply place on the surface, align with the latchbolt, and secure. All components are fully enclosed in a 3/4" thick stainless steel housing. Outdoor-rated and exceeding Grade 1 standards, this strike delivers 1,500 lbs static strength and 70 ft-lbs dynamic strength with 1,000,000-cycle endurance. Field-selectable for fail-secure or fail-safe operation and compatible with 12 or 24VDC. The separate base and decorative cover enable effortless adjustments, while horizontal adjustability and non-handed design provide installation flexibility across metal or wood frames. Complies with NFPA 80-07 guidelines for fire-rated frame retrofit. Tamper-resistant construction and stainless steel durability ensure long-term security performance.

Good to know: Wood screws are not included for installs in wood frames.
