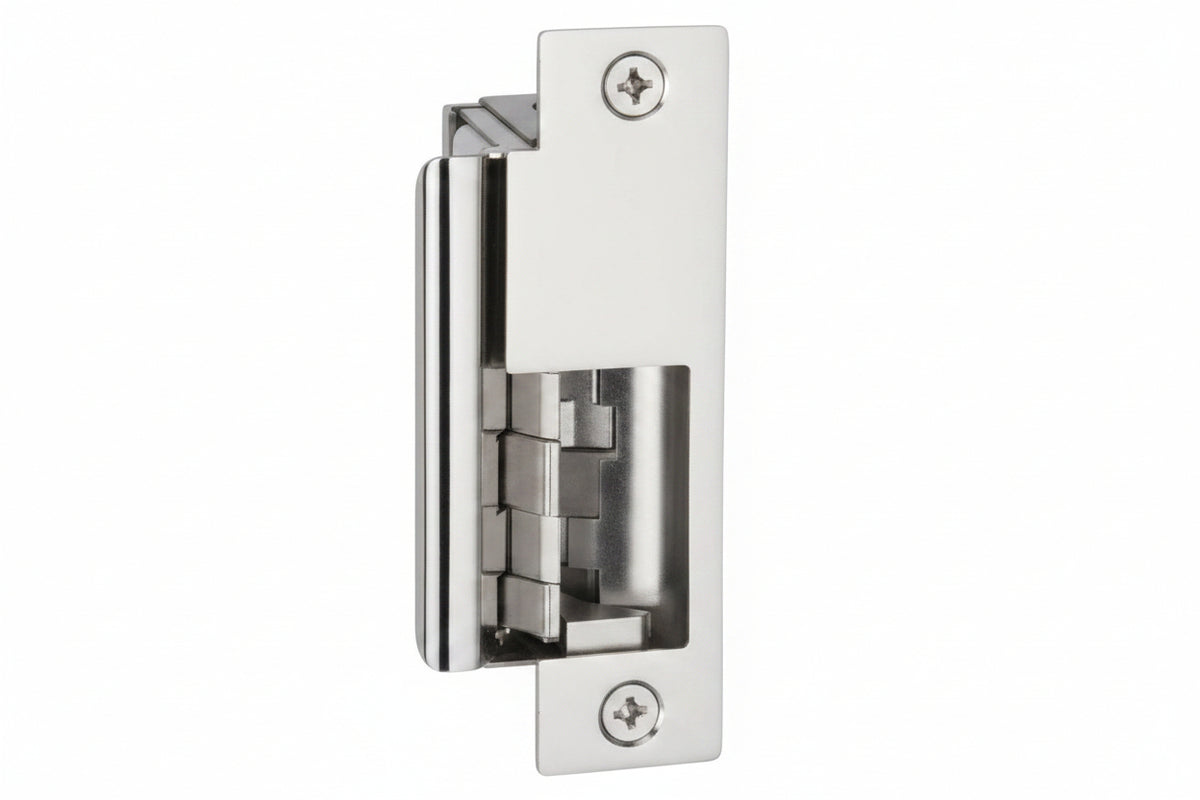

HES 8500-12/24D-630 Electric Strike Body, Fire-Rated, Compact, 12/24VDC, 0.24/0.12A, 5/16" Depth, Satin Stainless Steel, for 8500 Series Electric Strike

Fire-rated compact electric strike for mortise locksets without deadbolts. Concealed keeper pin locking design exceeds Grade-1 ratings with 1,500 lbs static strength and 70 ft-lbs dynamic strength. Installs with minimal frame modification—no cutting required. Stainless steel construction resists corrosion and tampering. Field-selectable fail-safe or fail-secure modes. Dual voltage operation (12/24 VDC/VAC) works with metal or wood frames. Non-handed design fits either side. NFPA 80-07 compliant for fire-rated retrofit applications. Endurance rated for 500,000 cycles. Accommodates mortise latchbolts up to 3/4" throw.
