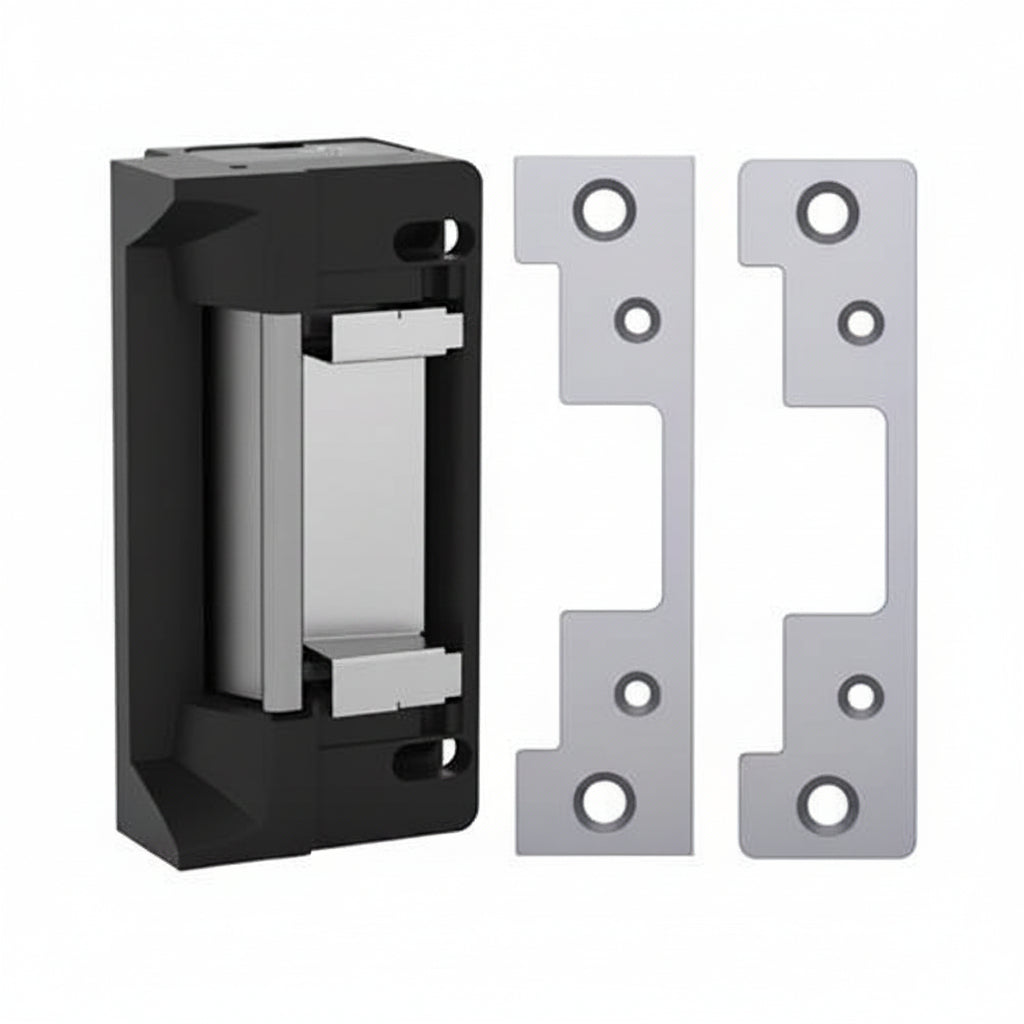

HES 5200C-12/24D-630 Door Electric Strike with Faceplate, 12/24VDC, 1500 lb Static Load, Satin Stainless Steel
Lock it down. Release on command.
A 12/24VDC electric strike with a 1500 lb static load rating. It lets your access control system release the door while keeping it secure the rest of the time.

A door is only as secure as its strike.
Access control only works when the hardware at the frame is strong enough to hold and flexible enough to fit the job. This strike is tamper resistant and field selectable between fail secure and fail safe.
Built for the installer
The 5200 series is designed around fast setup and flexible installation on metal frames.
Field selectable mode
Switch between fail secure and fail safe in the field to suit each opening.

Cycles of endurance
Rated endurance for the 5200 series strike.
Dual voltage
Runs on 12 or 24VDC/VAC, with 0.24A at 12VDC and 0.12A at 24VDC.
Non-handed design
One strike fits both left and right hand doors, with an internally mounted solenoid.
Two faceplates included
Comes with the 5000 strike body plus faceplates 501 and 501A.
Everything you need to know.
| Brand | HES |
| Model | 5200C-12/24D-630 |
| Static Strength | 1500 lb |
| Dynamic Strength | 70 ft-lbs |
| Input Voltage | 12 or 24VDC/VAC |
| Current Draw | 0.24A at 12VDC / 0.12A at 24VDC |
| Latchbolt | 5/8" - 3/4" (3/4" with 1/8" door gap) |
| Strike Body Depth | 1-1/16" |
| Material | Stainless Steel |
| Finish | Satin Stainless Steel (630) |
| Door Frame Type | Metal |
| Lock Type | Cylindrical |
HES 5200C-12/24D-630 Door Electric Strike with Faceplate, 12/24VDC, 1500 lb Static Load...
Door Electric Strike with Faceplate — 12/24VDC, 1500 lb Static Load, Satin Stainless Steel
The HES 5200C-12/24D-630 is a door electric strike designed for access-control and electronic locking applications. It supports 12VDC or 24VDC operation with current requirements of 0.24A at 12VDC and 0.12A at 24VDC. Rated for a 1500-pound static load, it includes a compatible faceplate and features a satin stainless-steel finish for commercial, institutional, and security-door installations.
Key Specifications
- Voltage: 12VDC or 24VDC
- Current draw: 0.24A at 12VDC / 0.12A at 24VDC
- Static load rating: 1,500 lb
- Includes: Compatible faceplate
- Finish: Satin Stainless Steel (630)
Ideal For
- Access control and electronic locking installations
- Commercial, institutional, and security-door applications
Need help with compatibility?
Looking for a manufacturer part number, compatible replacement, or quantity order? Contact Raztechs for sourcing and quote support.

HES 5200C-12/24D-630, ready to order.
- 5000 strike body
- Faceplate 501
- Faceplate 501A
