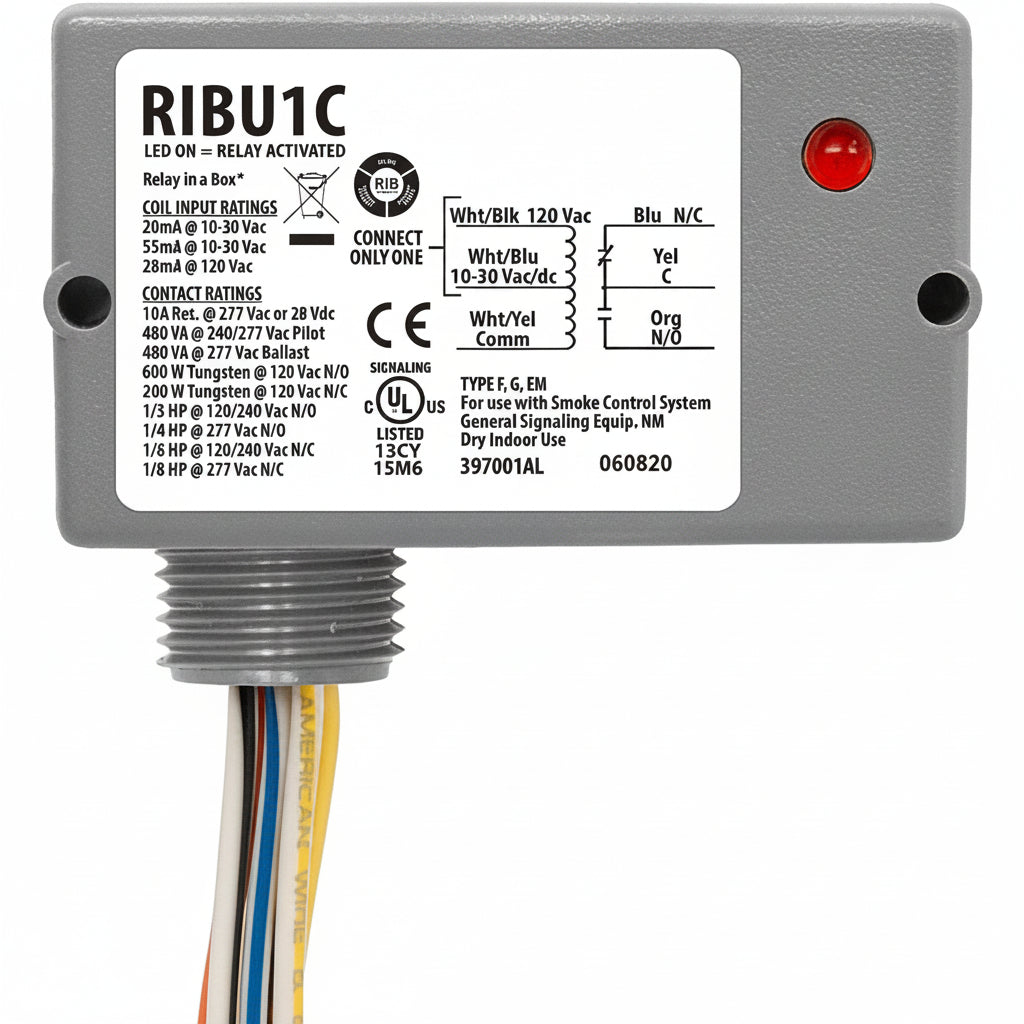

Functional Devices RIBU1C Enclosed Pilot Relay 10A SPDT with 10-30VAC/DC/120VAC Coil

Name: Functional Devices RIBU1C Enclosed Pilot Relay 10A SPDT with 10-30VAC/DC/120VAC Coil
Brand: Functional Devices
SKU: Raz-RIBU1C
Price: 69.17 USD
Availability: InStock

Small relay, solid switching.

An enclosed 10 amp SPDT pilot relay with a continuous duty coil. It runs on 10-30 VAC/DC or 120 VAC coil voltage and has an LED that shows when it is activated.

$69.17

In stock

Fast shippingFunctional DevicesSecure checkout

Functional Devices RIBU1C Enclosed Pilot Relay 10A

10A SPDT contactContinuous duty coil

LED On = ActivatedAlarm control system use

A control signal needs a dependable switch.

A pilot relay lets a low-level control signal switch a separate circuit. This one is enclosed, so the contact is protected in its own housing.

Without itWithout an enclosed relay, you have no LED to show whether the contact has been activated.

✓

With the RIBU1CWith the RIBU1C, one SPDT contact and a status LED sit in a compact NEMA 1 housing.

What you get

Built for control wiring

The RIBU1C packs coil flexibility, status indication and listed housing ratings into a small enclosure.

Two coil voltage options

It operates on 10-30 VAC/DC or 120 VAC coil voltage.

Functional Devices RIBU1C Enclosed Pilot Relay 10A SPDT with 10-30VAC/DC/120VAC Coil

10M

Minimum mechanical cycles

Expected relay life is 10 million cycles minimum mechanical.

LED status indicator

The LED is on when the relay is activated.

Plenum and NEMA 1 housing

The housing is UL Accepted for Use in Plenum and rated NEMA 1.

Listed and compliant

Approvals include UL Listed, UL916, UL864, C-UL California State Fire Marshal, CE and RoHS.

Details

Everything you need to know.

Brand	Functional Devices
Model	RIBU1C
Contact Type	One (1) SPDT, continuous duty coil
Contact Rating	10A
Coil Voltage	10-30 VAC/DC or 120 VAC
Operating Temperature	-30 to 140° F
Humidity Range	5 to 95% (noncondensing)
Dimensions	1.70" x 2.80" x 1.50" with .50" NPT nipple
Mount Type	Screw Mount
Housing Rating	UL Accepted for Use in Plenum, NEMA 1
Application	Alarm Control System
Country of Origin	US

Description

Functional Devices RIBU1C Enclosed Pilot Relay 10A SPDT with 10-30VAC/DC/120VAC Coil

Enclosed pilot relay featuring a single-pole double-throw (SPDT) contact configuration rated for 10 amps continuous duty. Operates on 10-30 VAC/DC or 120 VAC coil voltage with a 1.8-second activation time. Built for reliability with 10 million minimum mechanical cycles and LED status indicator showing activation state. Rated for operating temperatures from -30°F to 140°F and humidity levels up to 95% noncondensing. Compact dimensions of 1.70" × 2.80" × 1.50" with 0.50" NPT nipple connection. Includes 16-gauge, 600V-rated wiring. Meets stringent safety and compliance standards including UL Listed, UL916, UL864, C-UL California State Fire Marshal approval, CE, and RoHS certification. Housing is UL Accepted for use in plenum spaces and rated NEMA 1 for general-purpose indoor applications.

Good to know: Humidity range is 5 to 95% noncondensing, so it is not rated for condensing conditions.
