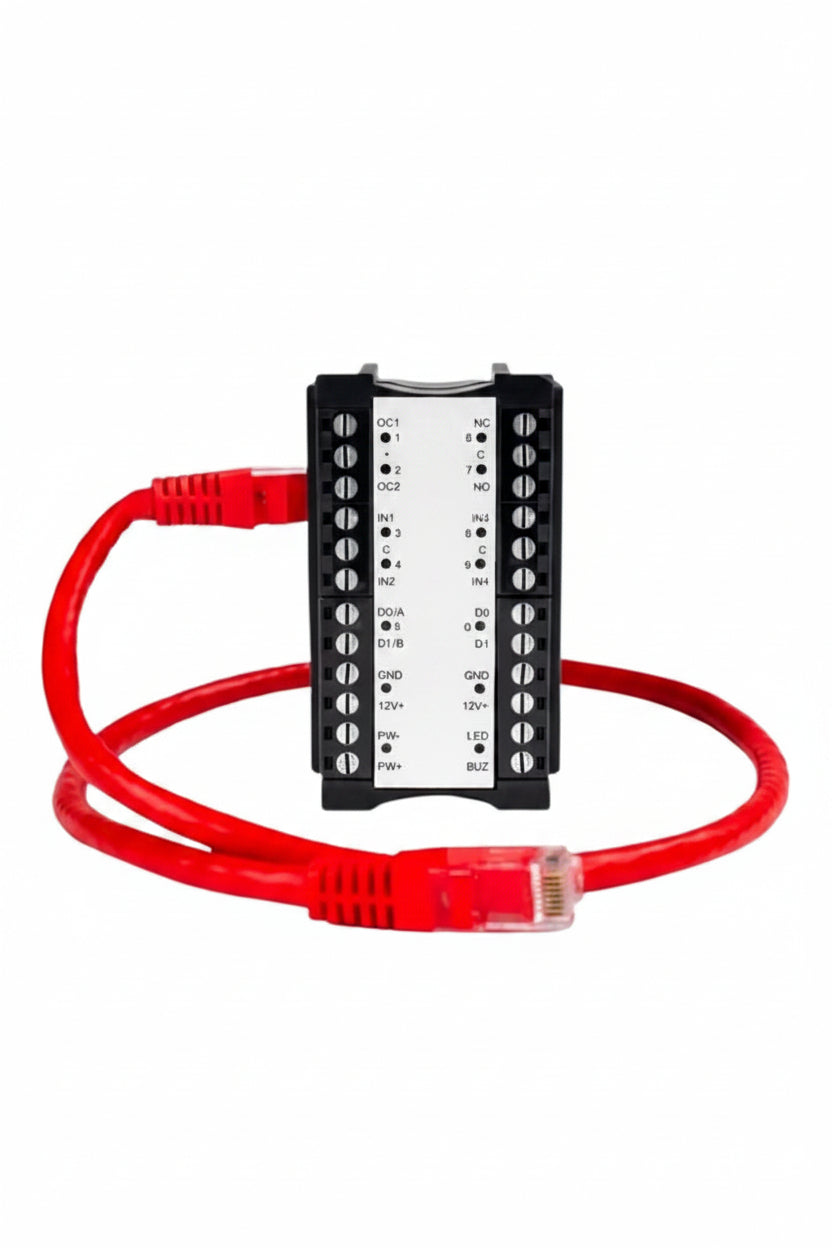

infinias S-EIDC32 Ethernet-Enabled Integrated Door Controller

Name: infinias S-EIDC32 Ethernet-Enabled Integrated Door Controller
Brand: infinias
SKU: Raz-S-EIDC32
Price: 893.26 USD
Availability: OutOfStock

One door. Fully in control.

A compact network door controller for single-door access control. It mounts in a standard double-gang box at the door and connects over Cat 5/Cat 6 to your existing network.

$893.26

Sold out

Fast shippinginfiniasSecure checkout

infinias S-EIDC32 Integrated Door Controller

Single-door access controlMounts in a double-gang box

Offline: 16,000 transactionsLocal event buffering

A door controller should not depend on the network.

Access control has to keep working when the connection drops, and it has to protect the data it sends when the connection is up. This controller does both.

Without itWithout it, a network outage can leave a door unmanaged and events unrecorded.

✓

With the S-EIDC32With it, the door keeps operating on its own, buffers up to 16,000 transactions locally, and sends them over a TLS 1.2 encrypted connection.

What you get

Built for single-door access

Everything you need to run one door, connected to your network and ready for readers, locks and sensors.

Reader flexibility

Accommodates up to 2 Wiegand or OSDP readers with support for multiple credential types.

infinias S-EIDC32 Ethernet-Enabled Integrated Door Controller

16,000

Offline transactions buffered

Local event buffering keeps records while the controller operates independently.

PoE or 24VDC power

PoE carries both data and power to the controller and peripheral hardware, or you can use an optional 24VDC power supply.

Secure network link

Connects over Cat 5/Cat 6 with DHCP or static IP configuration, and TLS 1.2 encryption protects all transmissions.

Added door security

3-state alarm monitoring and anti-pass back functionality enhance security at the door.

Details

Everything you need to know.

Brand	infinias
Model	S-EIDC32
Product type	Ethernet door controller
Doors supported	Single door
Readers	Up to 2 Wiegand or OSDP
Network connection	Cat 5/Cat 6, DHCP or static IP
Encryption	TLS 1.2
Alarm monitoring	3-state
Offline buffer	Up to 16,000 transactions
Power	PoE or optional 24VDC power supply
Mounting	Standard double-gang box
Door inputs and control	Lock control, request to exit, alarm bypass, door contact monitoring, configurable inputs

Description

infinias S-EIDC32 Ethernet-Enabled Integrated Door Controller

Compact network-connected door controller designed for single-door access control installations. Mounts in a standard double-gang box at the door for straightforward setup. Supports lock control, request to exit, alarm bypass, door contact monitoring, and configurable inputs. Connects via Cat 5/Cat 6 cable to your existing network infrastructure with DHCP or static IP configuration. Secure TLS 1.2 encryption protects all transmissions. Accommodates up to 2 Wiegand or OSDP readers with support for multiple credential types. Features 3-state alarm monitoring and anti-pass back functionality for enhanced security. Operates offline with local event buffering for up to 16,000 transactions. Power delivery through PoE carries both data and power to the controller and peripheral hardware, or use an optional 24VDC power supply. Reliable performance whether connected to the network or operating independently.

Good to know: The 24VDC power supply is optional. PoE can power the controller and peripheral hardware over the same network cable.
