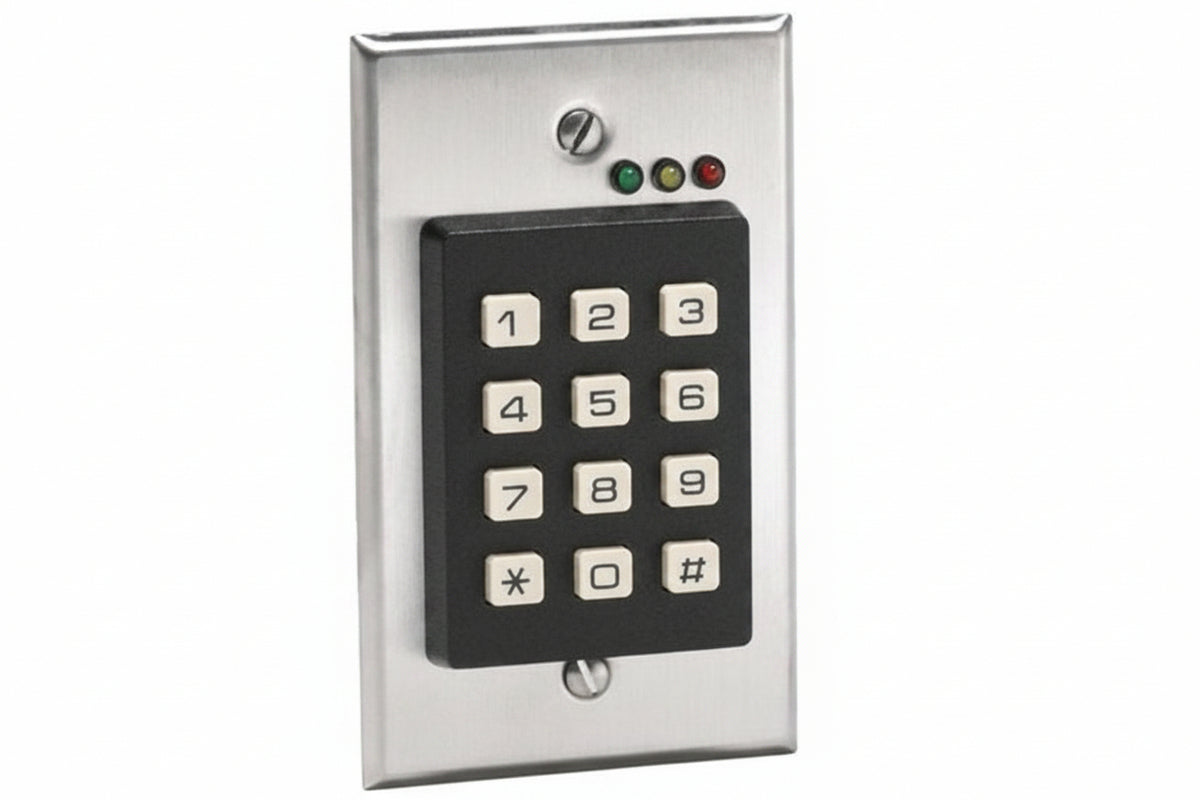

Linear 212i Door-Gard Indoor Flush-Mount Single Door Access Control Keypad, 2/24VAC/DC, Satin Stainless Steel
Only the right PIN gets in.
A single-gang, flush-mount keypad that controls one indoor door with a PIN. It holds up to 120 users and drives a 5 amp relay, so you can manage entry without keys.
Keys get copied, lost and passed around.
A keypad ties entry to a code instead of a key. For a single indoor door with lighter traffic, it is a simple way to control who gets through.
Simple access for one door
The 212i covers the basics of indoor keypad entry without extra complexity.
PIN code entry
Users identify themselves with a PIN or passcode, with three LEDs showing operation status and PIN entry.
users supported
Enough PIN codes for a small team on one door.
120 users
Supports up to 120 users on a single door, suited to lighter volume access control environments.
Flush, single gang
The single gang flush-mount design gives a clean, convenient installation indoors.
Relay and outputs
Includes 1 SPDT 5 amp relay and 3 50mA negative voltage outputs for connecting door hardware.
- Fast shippingUS and Canada
- 30-day returnsOn eligible items
- Quotes & sourcingJust ask
Everything you need to know.
| Brand | Linear |
| Model | 212i |
| Number of Users | 120 |
| Identification Method | PIN/Passcode |
| Mount Type | Flush Mount |
| Application/Usage | Indoor |
| Input Voltage | 24V DC |
| Height | 4.5" |
| Width | 2.8" |
| Depth | 1.3" |
Linear 212i Door-Gard Indoor Flush-Mount Single Door Access Control Keypad, 2/24VAC/DC,...
A single-gang, flush-mount keypad that controls one indoor door with a PIN. It holds up to 120 users and drives a 5 amp relay, so you can manage entry without keys.
A keypad ties entry to a code instead of a key. For a single indoor door with lighter traffic, it is a simple way to control who gets through.
Key features
- PIN code entry: Users identify themselves with a PIN or passcode, with three LEDs showing operation status and PIN entry.
- 120 users: Supports up to 120 users on a single door, suited to lighter volume access control environments.
- Flush, single gang: The single gang flush-mount design gives a clean, convenient installation indoors.
- Relay and outputs: Includes 1 SPDT 5 amp relay and 3 50mA negative voltage outputs for connecting door hardware.
Good to know: For indoor use only. An optional 293 relay board converts the 3 voltage outputs to SPDT relays if you need more relays.
Need help with compatibility?
Looking for a manufacturer part number, compatible replacement, or quantity order? Contact Raztechs for sourcing and quote support.
Linear 212i, ready to order.
- Number of Users: 120
- Identification Method: PIN/Passcode
- Mount Type: Flush Mount
- Application/Usage: Indoor
