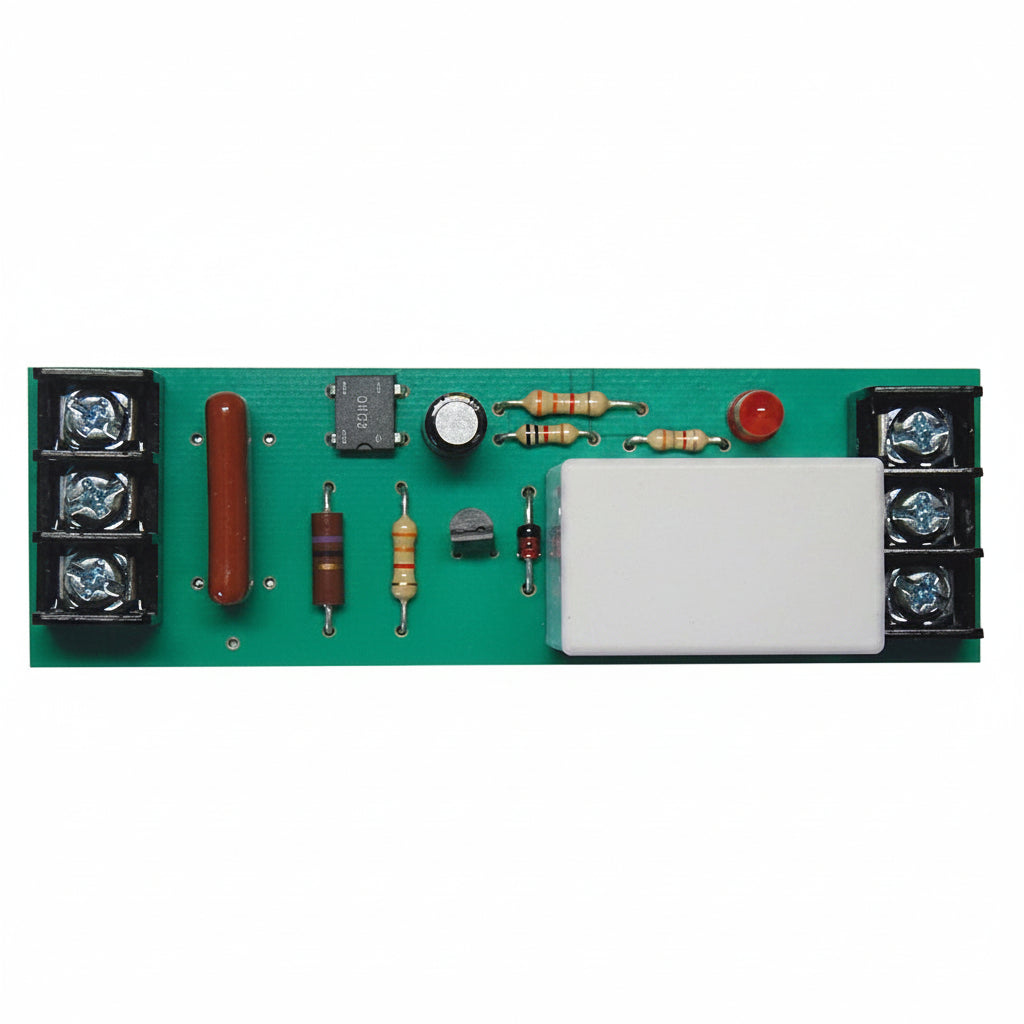

Functional Devices RIBMU1C 4.00" Track Mount Pilot Relay 15A SPDT with 10-30V AC/DC/120V AC Coil

Name: Functional Devices RIBMU1C 4.00" Track Mount Pilot Relay 15A SPDT with 10-30V AC/DC/120V AC Coil
Brand: Functional Devices
SKU: Raz-RIBMU1C
Price: 72.61 USD
Availability: InStock

One relay, every control voltage.

A 4.00" track mount pilot relay with a 15A SPDT contact and a low-current coil that accepts 10-30V AC/DC and 120V AC, so one model covers many control circuits.

$72.61

In stock

Fast shippingFunctional DevicesSecure checkout

Functional Devices RIBMU1C Track Mount Pilot Relay

15A SPDT contactCoil: 10-30V AC/DC or 120V AC

LED shows relay statusClosed/Open/Auto switch option

Different control voltages mean different relays.

Stocking a separate relay for each coil voltage adds part numbers and room for mix-ups. A coil that accepts a wide AC/DC range keeps one model in play across power systems.

Without itYou match a relay model to every control voltage and guess at its state when troubleshooting.

✓

With the RIBMU1COne coil accepts 10-30V AC/DC and 120V AC, and the LED shows at a glance whether the relay is active.

What you get

Built for control panel work

The RIBMU1C pairs a flexible coil with a compact track mount body for panels and enclosures.

Wide-range coil

The low-current coil accepts 10-30V AC/DC and 120V AC, so it fits different power systems.

Functional Devices RIBMU1C 4.00" Track Mount Pilot Relay 15A SPDT with 10-30V AC/DC/120V AC Coil

15A

SPDT contact rating

Single pole double throw contacts on a 15 Amp pilot relay.

LED status indicator

An LED gives a visual indication of relay status without testing the contacts.

Closed/Open/Auto option

A Closed/Open/Auto switch option is available for manual control in automation setups.

Compact track mount

The 4.00" x 1.80" x 1.30" body is designed for installation in control panels and enclosures.

Details

Everything you need to know.

Brand	Functional Devices
Model	RIBMU1C
Contact Type	SPDT (Single Pole Double Throw)
Coil Voltage	10-30V AC/DC, 120V AC
Application/Usage	Pilot
Motor	1/3 HP
Ballast	480 VA
Tungsten	600 W
Pilot Duty	480 VA
Mount Type	Panel Mount
Dimensions (W x H x D)	4.00" x 1.80" x 1.30"
Environmental Certification	RoHS

Description

Functional Devices RIBMU1C 4.00" Track Mount Pilot Relay 15A SPDT with 10-30V AC/DC/120...

4.00" Track Mount Pilot Relay engineered for versatile industrial applications. Features a 15 Amp SPDT configuration with a low-current coil that accepts a wide voltage range from 10-30 Vac/dc and 120 Vac, eliminating the need for multiple relay models across different power systems. LED status indicator provides instant visual feedback on relay operation. Closed/Open/Auto switch options deliver flexible control for diverse automation scenarios. Compact track-mount design simplifies installation in control panels and enclosures while maintaining reliable performance in demanding environments.

Good to know: The Closed/Open/Auto switch is listed as an option, so confirm it is on the version you order.
