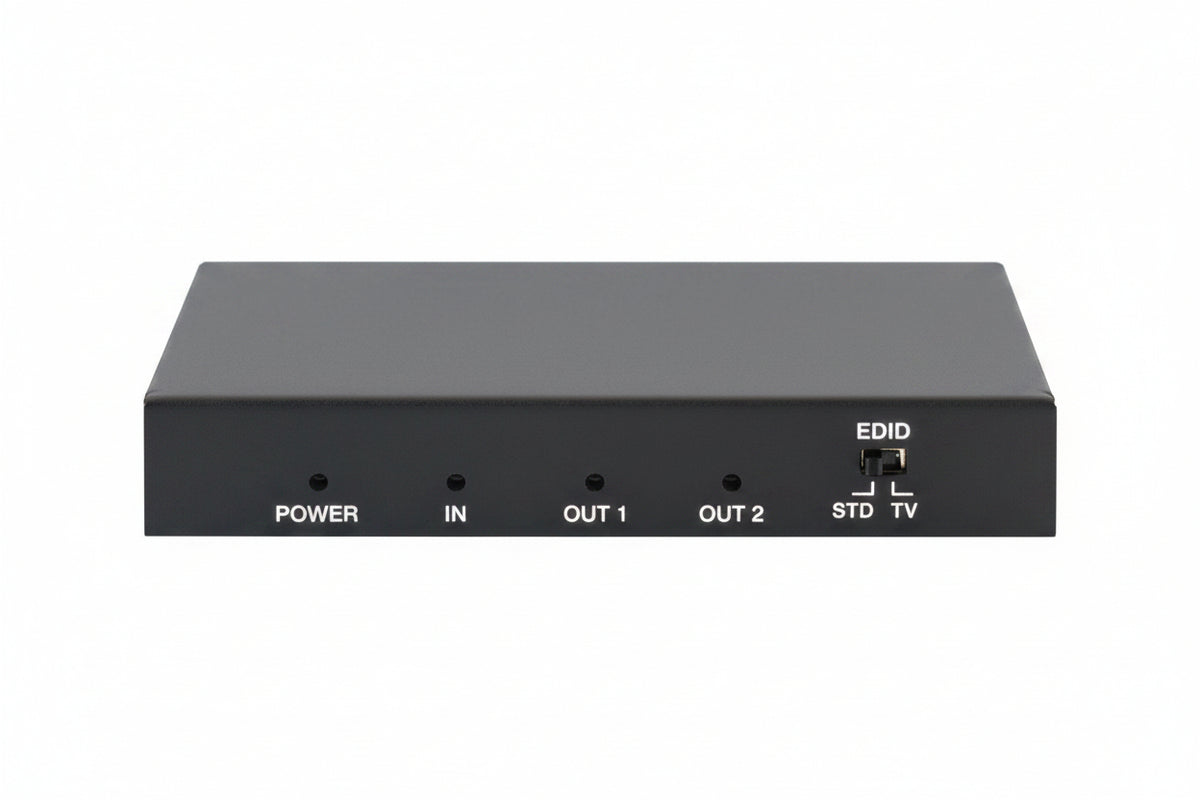

Evolution EVSP4K12 Premium 4K HMDI 1x2 Splitter (Replaces 280702)

Name: Evolution EVSP4K12 Premium 4K HMDI 1x2 Splitter (Replaces 280702)
Brand: Evolution
SKU: Raz-EVSP4K12
Price: 259.99 USD
Availability: InStock

One source. Two screens, full 4K.

The Evolution Premium 4K HDMI 1x2 Splitter sends audio and video from a single source to 2 HDMI outputs at up to 4K2K (2160p) without any loss of quality or resolution.

$259.99

In stock

Fast shippingEvolutionSecure checkout

Evolution EVSP4K12 Premium 4K HDMI 1x2 Splitter

1 source in, 2 displays out1 HDMI input, 2 HDMI outputs

4K2K 60Hz, HDR12bit YCBCR 4:4:4, 18 Gbps

Two displays, one source, no compromise.

Feeding a second screen should not cost you resolution or compatibility. This splitter keeps both outputs at up to 4K2K and manages EDID so the source and displays agree.

Without itA single source feeds a single display, and adding a second screen means swapping cables or settling for lower quality.

✓

With the EVSP4K12One source drives 2 HDMI outputs at once, with HDCP 2.2 compliance and Dynamic and Manual EDID management modes to help during installation.

What you get

Built for clean 4K splitting

Video, audio and compatibility features that keep both outputs consistent.

4K2K 60Hz with HDR

Supports video formats up to 4K2K 60Hz with 12bit YCBCR 4:4:4 and HDR.

Evolution EVSP4K12 Premium 4K HMDI 1x2 Splitter (Replaces 280702)

18 Gbps

High bandwidth

Bandwidth to carry 4K video and high-resolution audio to both outputs.

HDCP 2.2 compliant

Compliant with HDCP 2.2 sources and backwards compatible with older versions of HDCP.

Dynamic and Manual EDID

Dynamic and Manual EDID management modes help ensure compatibility during installation.

Lossless surround audio

Supports LPCM 7.1CH, Dolby TrueHD and DTS-HD Master Audio.

Details

Everything you need to know.

Brand	Evolution
Model	EVSP4K12
Number of HDMI Inputs	1
Number of HDMI Outputs	2
Maximum Video Resolution	4096 x 2160
Input Voltage	5V DC
Color	Black
Width	4.00"
Height	7.00"
Depth	2.30"
Weight	0.60lb

Description

Evolution EVSP4K12 Premium 4K HMDI 1x2 Splitter (Replaces 280702)

Split 4K video signals to multiple displays without quality loss using this premium HDMI splitter. Transmits audio and video from a single source to two HDMI outputs at 4K resolution (2160p) with full 60Hz refresh rate and 4:4:4 chroma support. Fully compliant with HDCP 2.2 sources and displays, with backward compatibility for older HDCP versions. Supports advanced audio formats including LPCM 7.1CH, Dolby TrueHD, and DTS-HD Master Audio for immersive sound. High bandwidth of 18 Gbps ensures reliable signal transmission. Features dynamic and manual EDID management modes to automatically adjust settings for optimal compatibility between your source and display devices. Also supports 3D frame sequential video up to 1080p 60Hz and high-resolution VESA formats up to 2560×2048 60Hz. Hot-plug capable with status indicator for connection and HDCP compliance monitoring. Compact design ideal for home theaters, conference rooms, and professional installations. Includes splitter unit, 5V DC power supply, and product manual.

Good to know: The splitter has a status indicator for connection and input HDCP compliance, and it supports hot-plug.
