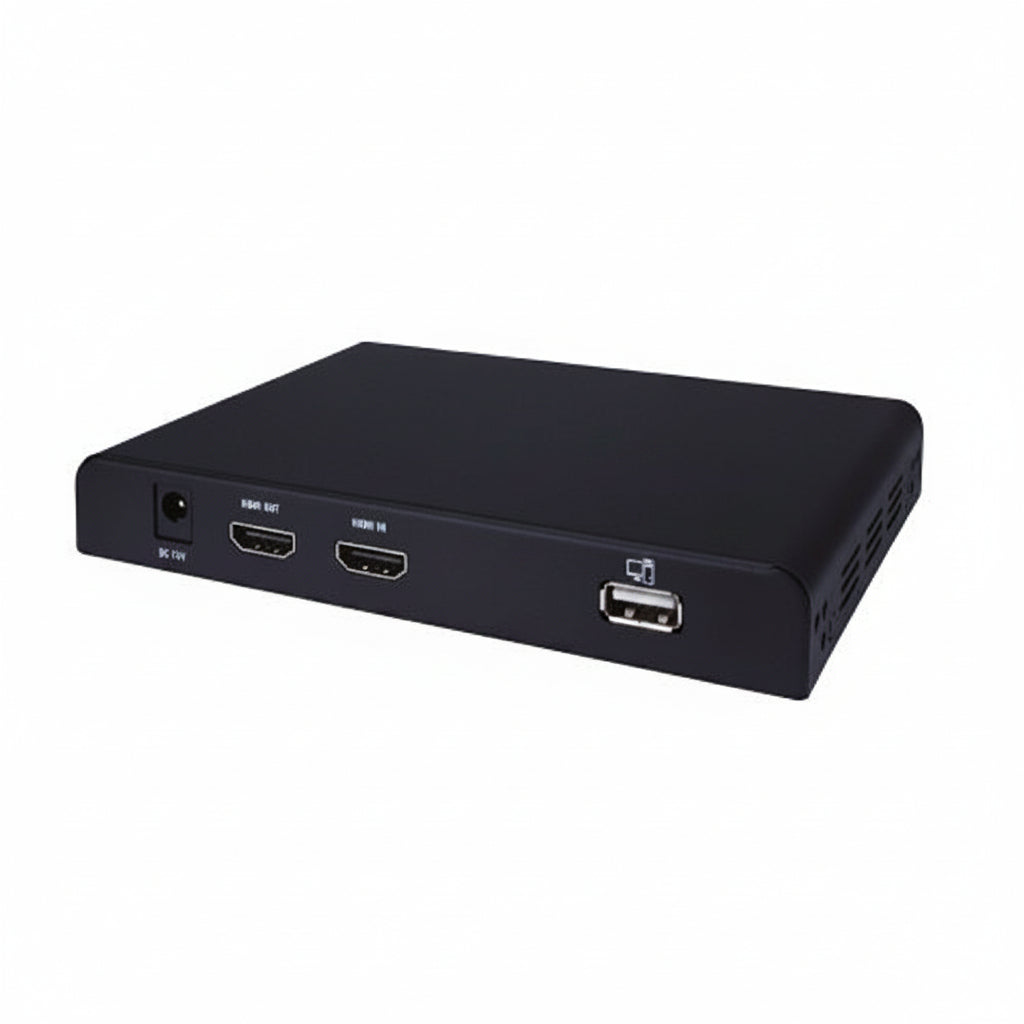

Evolution EVEXKVM3 HDMI Extender Over Single CAT6 with Digital Audio Breakout, HDMI Loop-Out, KVM and PoE

Name: Evolution EVEXKVM3 HDMI Extender Over Single CAT6 with Digital Audio Breakout, HDMI Loop-Out, KVM and PoE
Brand: Evolution
SKU: Raz-EVEXKVM3
Price: 649.99 USD
Availability: InStock

Extend 4K, keep full control.

Send 4K 60 Hz video, audio and USB control over a single CAT6 cable. The transmitter and receiver pair adds KVM, HDMI loop-out and optical audio breakout for control rooms and AV installs.

$649.99

In stock

Fast shippingEvolutionSecure checkout

Keyboard and touchscreen at deskUSB control over one CAT6

4096 x 2160 max resolution4K 60 Hz, HDR10

Long cable runs shouldn't cost you control.

Control rooms and AV installs need video, audio and USB at a distance. Running separate extenders for each adds cost and complexity.

Without itWithout it, you run separate extenders for video and for the keyboard, mouse or touchscreen.

✓

With the EVEXKVM3With it, one CAT6 cable carries 4K video, audio and USB control, with PoE for flexible power options.

What you get

Video, USB and audio on one cable

Everything a remote workstation or display needs travels over a single CAT6 run.

KVM over one cable

USB pass-through extends keyboard, mouse and touchscreen control without separate extenders.

Evolution EVEXKVM3 HDMI Extender Over Single CAT6 with Digital Audio Breakout, HDMI Loop-Out, KVM and PoE

230 ft

Extension over a single CAT6 cable

Carries 4K 60 Hz video, audio and USB control.

Bidirectional PoE

Power over Ethernet gives you flexible power options for the transmitter and receiver.

Loop-out and optical audio

HDMI loop-out supports local monitoring, and digital optical audio breakout feeds multi-channel sound systems.

Plug and play EDID

Dynamic EDID provides automatic compatibility with no manual adjustments needed.

Details

Everything you need to know.

Brand	Evolution
Model	EVEXKVM3
Maximum Video Resolution	4096 x 2160
Graphics Mode	4K UHD
Number of HDMI Ports	3
Number of USB Ports	3
Number of Network (RJ-45) Ports	2
Connectivity Technology	Wired
Depth	1.1"
Weight	0.80lb

Description

Evolution EVEXKVM3 HDMI Extender Over Single CAT6 with Digital Audio Breakout, HDMI Loo...

Extend 4K 60 Hz video, audio, and USB control up to 230 feet over a single CAT6 cable with this professional-grade HDMI extender. Features bidirectional Power over Ethernet (PoE) technology for flexible power options, HDMI loop-out for local monitoring, and digital optical audio breakout for multi-channel sound systems. USB pass-through enables keyboard, mouse, and touchscreen control without separate extenders. Dynamic EDID ensures automatic compatibility and plug-and-play setup with no manual adjustments needed. Supports 4:4:4 chroma subsampling and HDR10 for stunning picture quality. Ideal for security systems, control rooms, and professional AV installations. Includes transmitter, receiver, USB cable, mounting brackets, screws, and manual.

Good to know: The description states up to 230 feet over a single CAT6 cable, while the spec table lists a maximum operating distance of 330'. Confirm the distance for your setup before installing.
