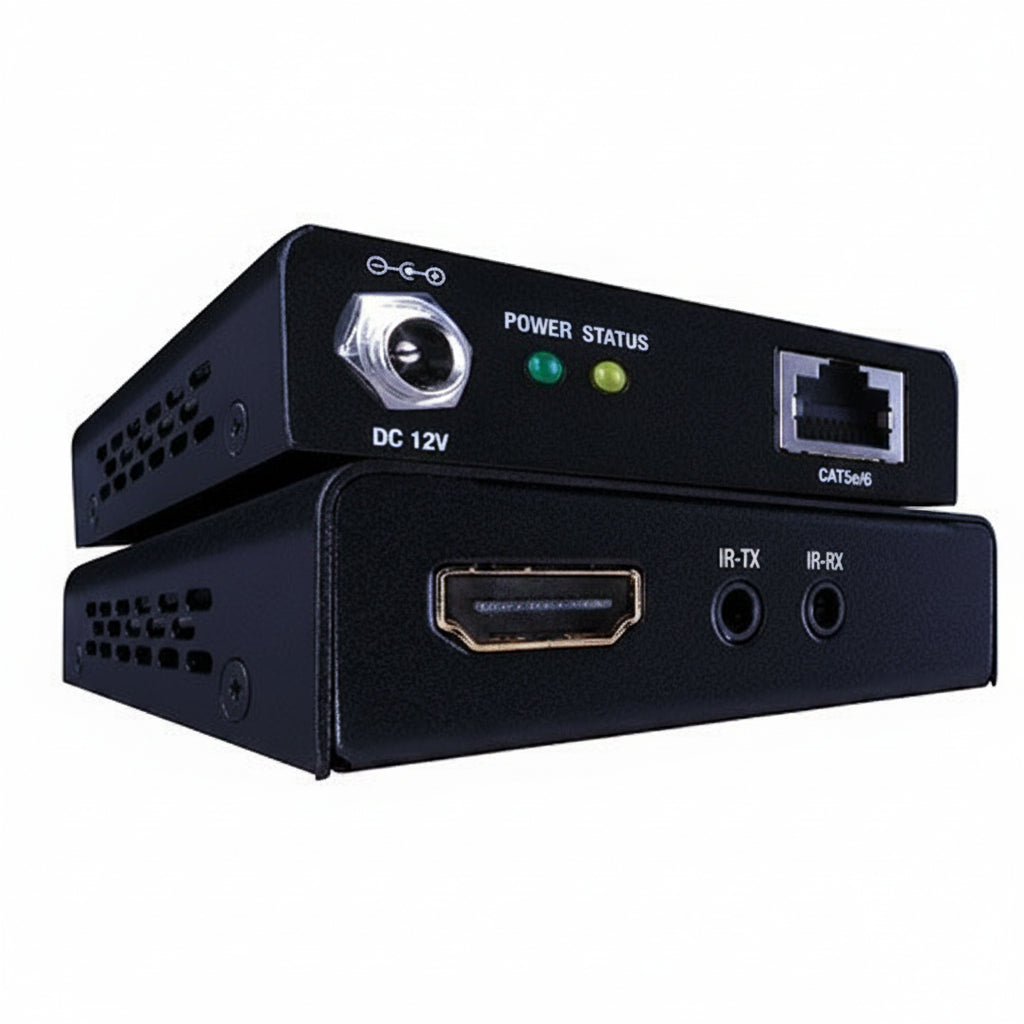

Evolution EVEX2006 Ultra Slim HMDI Over Single CAT5e/CAT6 Cable Extender with PoE

Name: Evolution EVEX2006 Ultra Slim HMDI Over Single CAT5e/CAT6 Cable Extender with PoE
Brand: Evolution
SKU: Raz-EVEX2006
Price: 433.99 USD
Availability: InStock

One cable. Signal and power.

This extender sends HDMI audio and video over a single CAT5e or CAT6 cable and powers the far end through PoE. It reaches up to 50m (164') from the HDMI source.

$433.99

In stock

Fast shippingEvolutionSecure checkout

Evolution EVEX2006 Ultra Slim HDMI Extender

Up to 50m (164') from sourceFull HD 1080p, 24-bit color, 3D

Power over EthernetSingle CAT5e or CAT6 cable

Long HDMI runs need more than one cable.

Sending video to a distant display usually means running extra cable and adding power at both ends. This extender carries the signal and power through one CAT5e or CAT6 run.

Without itWithout it, you manage separate power supplies at both ends of the run.

✓

With the EVEX2006With it, power flows through the same cable as your signal, so setup stays simple.

What you get

Built for clean installs

Slim hardware, plug and play setup and IR control come together in one transmitter and receiver pair.

PoE through one cable

Power over Ethernet technology removes the need for separate power supplies at both ends.

Evolution EVEX2006 Ultra Slim HMDI Over Single CAT5e/CAT6 Cable Extender with PoE

50m

Transmission range from the HDMI source

That is 164' at Full HD 1080p, 24-bit color and 3D.

Plug and play setup

Auto EDID and EQ management work with HDMI and HDCP compliant devices.

Bi-directional IR control

A wideband IR system from 20KHz to 60KHz lets you control the source or display, with IR accessories included.

Cascade to expand

Cascading lets you create a larger distribution system to reach additional displays.

Details

Everything you need to know.

Brand	Evolution
Model	EVEX2006
Cable Type	Category 6
Maximum Video Resolution	1920 x 1080
Maximum Operating Distance	164'
HDMI Inputs / Outputs	1 / 1
RJ-45 Ports	2
Dimensions	2.7" x 0.7" x 3.25"
Weight	0.20lb
Color	Black

Description

Evolution EVEX2006 Ultra Slim HMDI Over Single CAT5e/CAT6 Cable Extender with PoE

Ultra Slim HDMI over Single Cat5e/6 Cable Extender with PoE transmits high-definition audio and video signals up to 50 meters using a single Cat5e or Cat6 cable. Power over Ethernet technology eliminates the need for separate power supplies at both ends—power flows through the same cable as your signal. This extender delivers Full HD 1080p video with 24-bit color and 3D support, plus pure uncompressed 7.1-channel digital audio. The slim, compact design fits easily in any installation, while auto EDID and EQ management ensure plug-and-play setup with any HDMI and HDCP-compliant device. Included IR blasters and receivers provide bidirectional control of your source or display across the full transmission range. The wideband IR system operates from 20KHz to 60KHz for reliable remote functionality. Cascade multiple units to expand your distribution system and reach additional displays throughout your space. Package includes transmitter, receiver, dual IR blasters, dual IR receivers, 12V DC power supply, and product manual.

Good to know: The unit supports Full HD 1080p with pure uncompressed 7.1ch digital audio, and works with HDMI and HDCP compliant devices.
