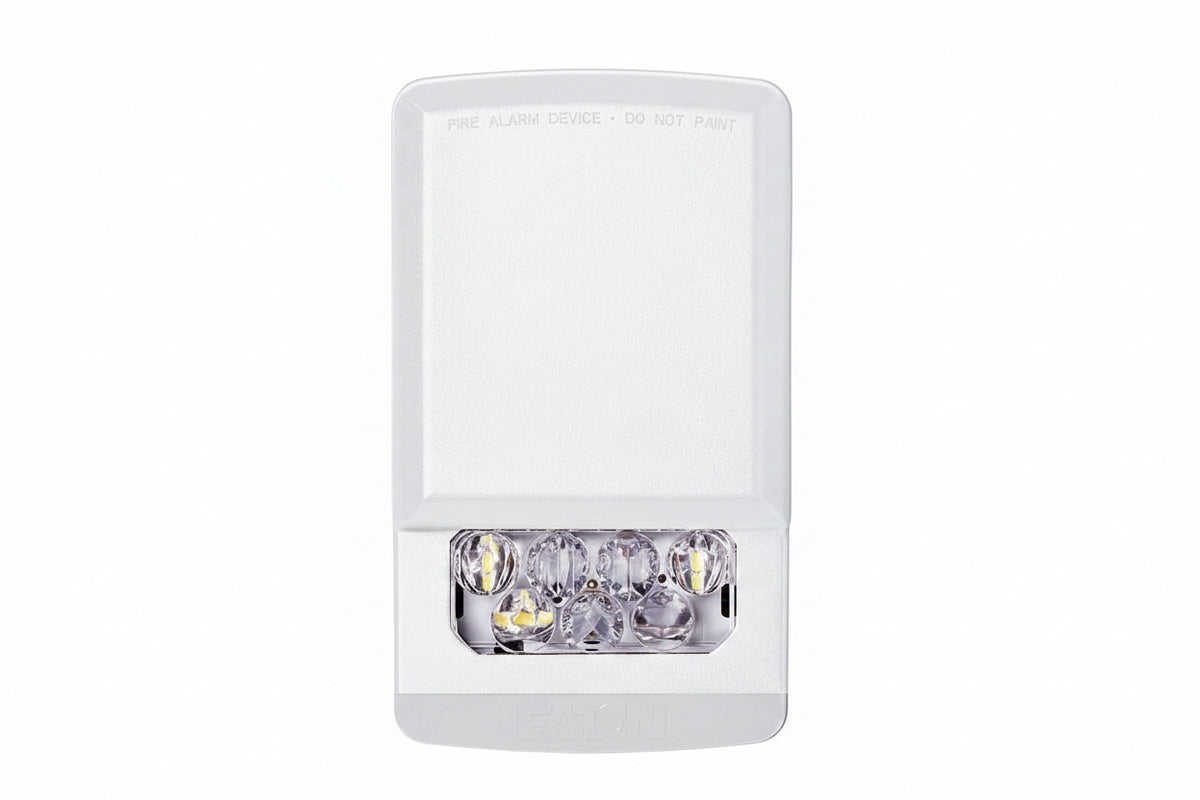

Eaton ELSTW Wheelock Eluxa LED Strobe, Wall, FIRE Lettering, Clear Lens, 24V, 15/30/75/110/135/185 cd, White

Name: Eaton ELSTW Wheelock Eluxa LED Strobe, Wall, FIRE Lettering, Clear Lens, 24V, 15/30/75/110/135/185 cd, White
Brand: Eaton
SKU: Raz-ELSTW
Price: 98.73 USD
Availability: InStock

Be seen when seconds count.

A wall-mounted LED fire alarm strobe with six field-selectable candela settings, from 15 to 185 cd. It gives your fire system a clear visual signal in a compact, single-gang design.

$98.73

In stock

Fast shippingEatonSecure checkout

Eaton ELSTW Wheelock Eluxa LED Wall Strobe

Six settings, 15 to 185 cdField-selectable candela

Fire and CO signalingHorns: Continuous, T3, T3/T4

Alarm signals only work if people notice them.

A fire alarm system needs devices that can be set to suit each space and installed without extra hassle. Candela flexibility and efficient LEDs help on both counts.

Without itWithout it, you may need to pick a fixed-output strobe and size power supplies and wire for a heavier load.

✓

With the 15/30/75/110/135/185With it, you pick the candela setting on site and the energy-efficient LEDs can mean fewer power supplies, smaller wire gauges, and shorter wire runs.

What you get

Built for faster, cleaner installs

The Eluxa ELSTW pairs flexible output with a mounting design that keeps technicians moving.

Six candela settings

Choose 15, 30, 75, 110, 135, or 185 cd in the field, with no tools required for candela adjustments.

185 cd

Highest candela setting

Six field-selectable settings run from 15 cd up to 185 cd.

Single-screw mounting

The included mounting plate has a capture hinge, so technicians can secure the device with a single screw.

Low-profile enclosure

The sleek, compact single-gang housing blends with interior decor and shows no visible mounting screws.

Fire and CO signaling

One device supports both Fire and CO signaling, with three horn patterns: Continuous, T3, and T3/T4.

Details

Everything you need to know.

Brand	Eaton
Model	15/30/75/110/135/185
Type	Fire alarm strobe
Mounting	Wall
Voltage	24V
Candela settings	15, 30, 75, 110, 135, 185 cd
Lens	Clear, FIRE lettering
Horn patterns	Continuous, T3, T3/T4
Sound output	86 dB (low) to 91 dB (high), anechoic
Light source	LED
Color	White
Form factor	Single-gang, low profile

Description

Eaton ELSTW Wheelock Eluxa LED Strobe, Wall, FIRE Lettering, Clear Lens, 24V, 15/30/75/...

The Wheelock Eluxa ELSTW is an advanced LED strobe light engineered for modern fire alarm systems. Featuring industry-leading energy efficiency, this wall-mounted device delivers exceptional performance while minimizing power consumption across its full candela range. Six field-selectable settings (15, 30, 75, 110, 135, 185 cd) provide flexible installation options in a compact, single-gang design. The sleek low-profile enclosure blends seamlessly with interior décor while maintaining professional aesthetics with no visible mounting screws. This versatile unit supports three horn patterns—Continuous, T3, and T3/T4—and provides both Fire and CO signaling capabilities in one device. Sound output ranges from 86 dB (low) to 91 dB (high) in anechoic conditions. Installation is simplified with the included mounting plate featuring a convenient capture hinge, allowing technicians to secure the device with a single screw—no tools required for candela adjustments. The energy-efficient LED technology reduces overall installation and operating costs by requiring fewer power supplies, smaller wire gauges, and shorter wire runs. Includes mounting plate and clear lens with FIRE lettering. 24V operation.

Good to know: Sound output of 86 dB (low) to 91 dB (high) is rated in anechoic conditions.
