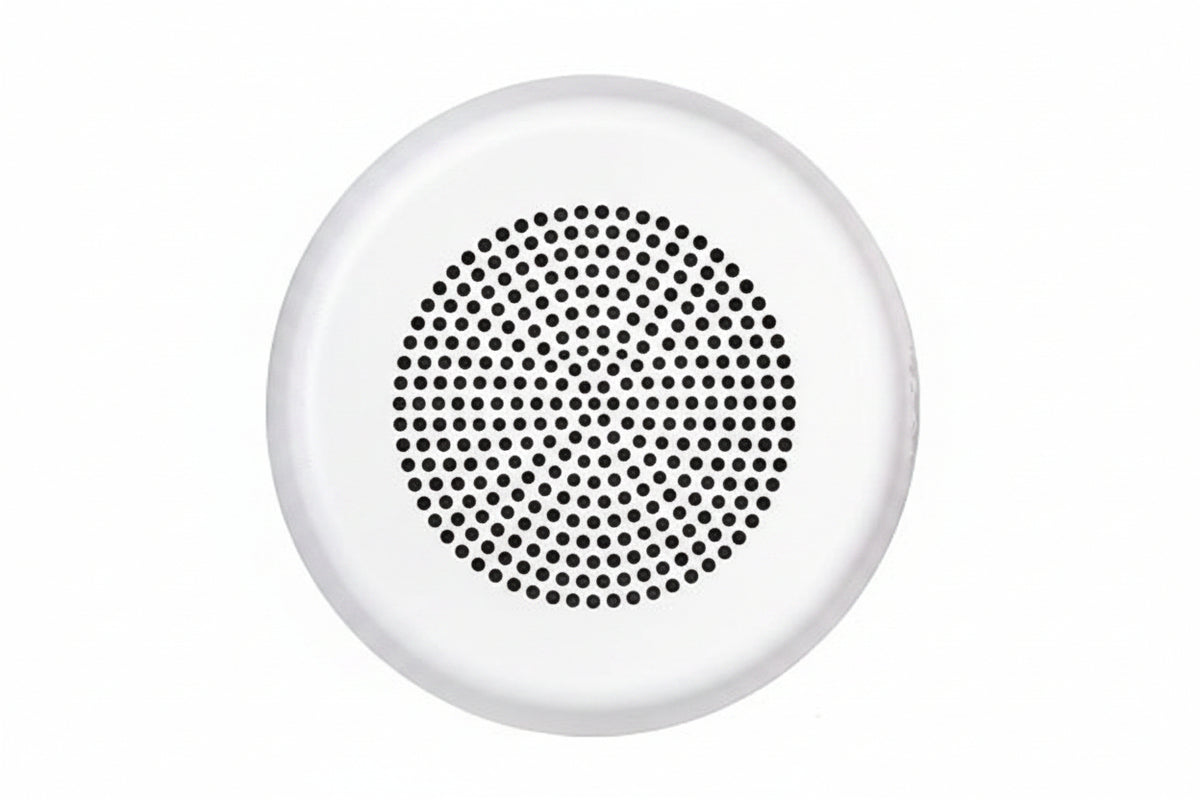

Eaton ELSPKWC Wheelock Eluxa LED High Fidelity Speaker, Ceiling, FIRE Lettering, 24VDC, White

Name: Eaton ELSPKWC Wheelock Eluxa LED High Fidelity Speaker, Ceiling, FIRE Lettering, 24VDC, White
Brand: Eaton
SKU: Raz-ELSPKWC
Price: 86.04 USD
Availability: InStock

Be heard before you're seen.

A ceiling-mount LED fire alarm speaker with FIRE lettering. It delivers clear voice and tone signaling for fire alarm and mass notification systems, with field-selectable output and 6 candela settings.

$86.04

In stock

Fast shippingEatonSecure checkout

Voice and tone signaling300–8000 Hz frequency response

Output: 1/8 to 2 watts5W at 70V, field-selectable

An alarm only works if people can understand it.

In emergency communications, voice clarity and tone signaling decide how quickly people get the message. This speaker is built for intelligibility at minimal wattage.

Without itWithout a clear speaker, installers juggle separate horn and strobe devices and extra setup steps on every ceiling.

✓

With the 24VDCWith the Eluxa, one low-profile ceiling unit combines a high-fidelity speaker and LED strobe with 6 candela settings, set by finger slide switches.

What you get

Built for fast, clean installs

The Eluxa packs speaker output, light settings and mounting into one compact ceiling device.

High-fidelity voice

Industry-leading 300–8000 Hz frequency response delivers voice clarity and tone signaling at minimal wattage.

Eaton ELSPKWC Wheelock Eluxa LED High Fidelity Speaker, Ceiling, FIRE Lettering, 24VDC, White

candela settings

All available in a single device.

Tool-free configuration

Finger slide switches set the device without tools, and pre-wire and pre-test capability is built in.

Single-screw mounting

A hinged mounting plate enables quick installation with just one screw.

6 candela settings

Six candela settings come in a single device, with a 20-millisecond light pulse duration that meets 2016 NFPA 72.

Details

Everything you need to know.

Brand	Eaton
Model	24VDC
Type	Ceiling-mount LED fire alarm speaker
Lettering	FIRE
Finish	White
Voltage	24VDC
Dual voltage	25/70 VRMS
Output	1/8 to 2 watts (5W at 70V), field-selectable
Frequency response	300–8000 Hz
Candela settings	6
Light pulse duration	20 milliseconds (2016 NFPA 72)
Listings	UL and CAN/ULC; RoHS compliant

Description

Eaton ELSPKWC Wheelock Eluxa LED High Fidelity Speaker, Ceiling, FIRE Lettering, 24VDC,...

High-fidelity LED speaker engineered for emergency communications, mass notification, and fire alarm systems. Delivers exceptional voice clarity and tone signaling with industry-leading frequency response (300–8000 Hz) and intelligibility at minimal wattage. Compact, low-profile design fits seamlessly into any interior environment. Ceiling-mount configuration with white finish and fire lettering. Operates on 24VDC with dual voltage capability (25/70 VRMS). Field-selectable output from 1/8 to 2 watts (5W at 70V). Features 6 candela settings in a single device, pre-wire/pre-test capability, and tool-free configuration via finger slide switches. Hinged mounting plate enables quick, single-screw installation. UL and CAN/ULC listed for compatibility with all major fire alarm control panels and notification zones. RoHS compliant with no mercury or hazardous substances. Meets 2016 NFPA 72 requirements for 20-millisecond light pulse duration, allowing seamless integration with existing strobe systems.

Good to know: Output is field-selectable from 1/8 to 2 watts, with 5W available at 70V, so set it to match your system design.
