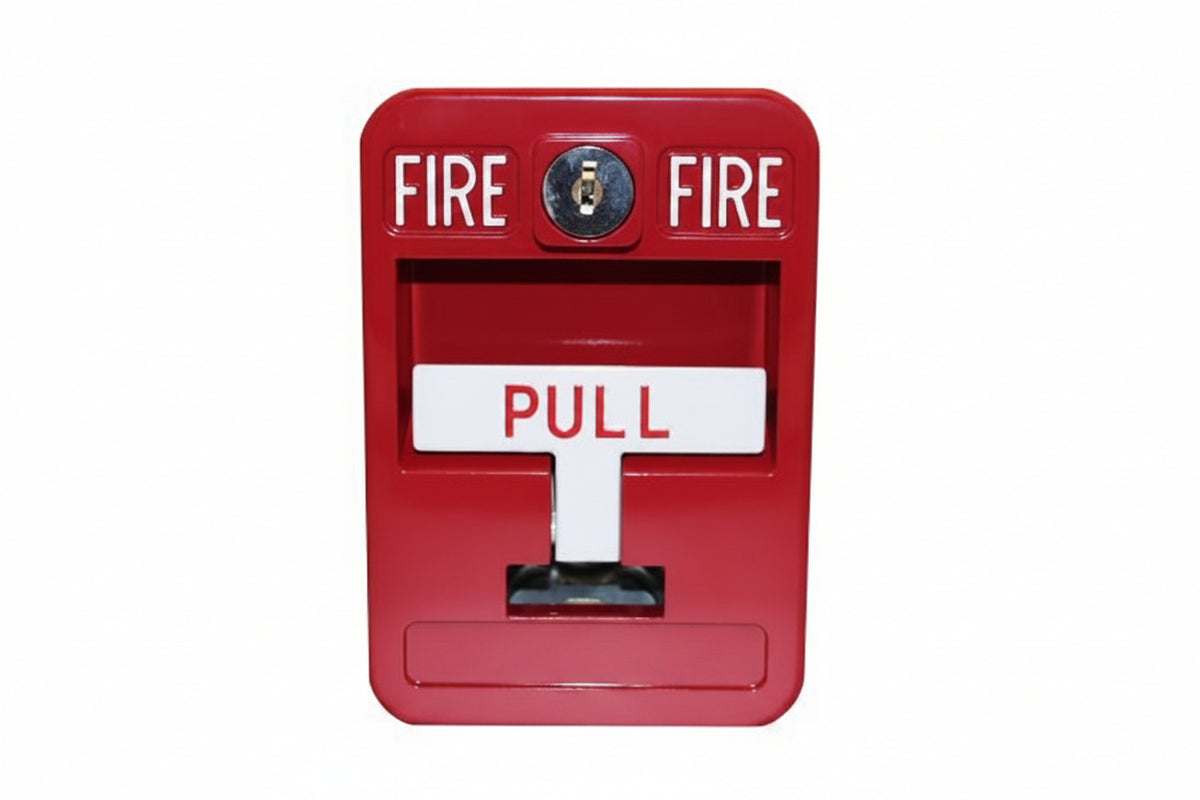

Eaton Wheelock MPS-100 MPS Manual Pull Station, SPST, Single Action, Key Reset, Indoor/Outdoor, Red

Name: Eaton Wheelock MPS-100 MPS Manual Pull Station, SPST, Single Action, Key Reset, Indoor/Outdoor, Red
Brand: Eaton
SKU: Raz-MPS-100
Price: 201.48 USD
Availability: InStock

Pull once. Alarm sounds.

A die-cast metal manual pull station for fire alarm systems. Single action with key reset, and weatherproof-approved for outdoor use as well as indoors.

$201.48

In stock

Fast shippingEatonSecure checkout

Single action, key resetNormally open SPST contact

Indoor or outdoor-40-150°F operating temp

When someone sees fire, the alarm has to be one pull away.

A manual pull station is the point where a person triggers the alarm. It needs to work reliably, be easy to reach and survive the environment it is mounted in.

Without itWithout a durable pull station, a corroded or damaged contact can stand between a person and the alarm.

✓

With the MPS-100The MPS-100 closes a corrosion-resistant, gold plated SPST contact on activation, in a die-cast metal housing rated for outdoor use.

What you get

Built for dependable activation

Die-cast metal construction, gold plated contacts and simple wiring keep the MPS-100 reliable and easy to install.

Die-cast metal build

High quality die-cast metal construction is made for long lasting performance.

Eaton Wheelock MPS-100 MPS Manual Pull Station, SPST, Single Action, Key Reset, Indoor/Outdoor, Red

-40-150°F

Operating temperature

The rated operating range for the MPS-100.

Corrosion resistant contacts

Gold plated SPST contacts resist corrosion, and the normally open contact closes upon activation.

Indoor or outdoor use

The weatherproof model is approved for outdoor use and operates from -40-150°F.

Simple installation

Terminal strip connections and a single gang backbox mount keep installation easy.

Details

Everything you need to know.

Brand	Eaton
Model	MPS-100
Product Line	Eaton Wheelock
Type	Manual pull station
Action	Single action, key reset
Contacts	SPST, gold plated
Certifications & Standards	UL
Color	Red
Material	Metal
Mount Type	Wall Mount, single gang backbox
Dimensions	4.76" H x 3.27" W x 1.12" D
Weight	0.71lb

Description

Eaton Wheelock MPS-100 MPS Manual Pull Station, SPST, Single Action, Key Reset, Indoor/...

Wheelock Series MPS non-coded Manual Pull Stations deliver reliable fire alarm activation with die-cast metal construction built for durability. Mount on a single gang backbox in single or dual action configurations for indoor or outdoor environments. Features SPST contacts with gold-plated terminals rated for 30 VDC @ 1 amp and 120 VAC @ 1 amp to prevent corrosion. The normally open contact closes upon activation. ADA compliant and weatherproof-approved for outdoor use. Terminal strip connections ensure easy installation. The explosion-proof single action model is UL Listed and Factory Mutual approved for Class I, Division I (Groups B, C, D), Class II (Groups E, F, G), and Class III hazardous locations, plus marine-rated and NEMA-4X certified. Achieve NEMA-3R listing when paired with the MPS-WP weatherproof back box.

Good to know: Pairing with the MPS-WP weatherproof back box achieves NEMA-3R listing.
