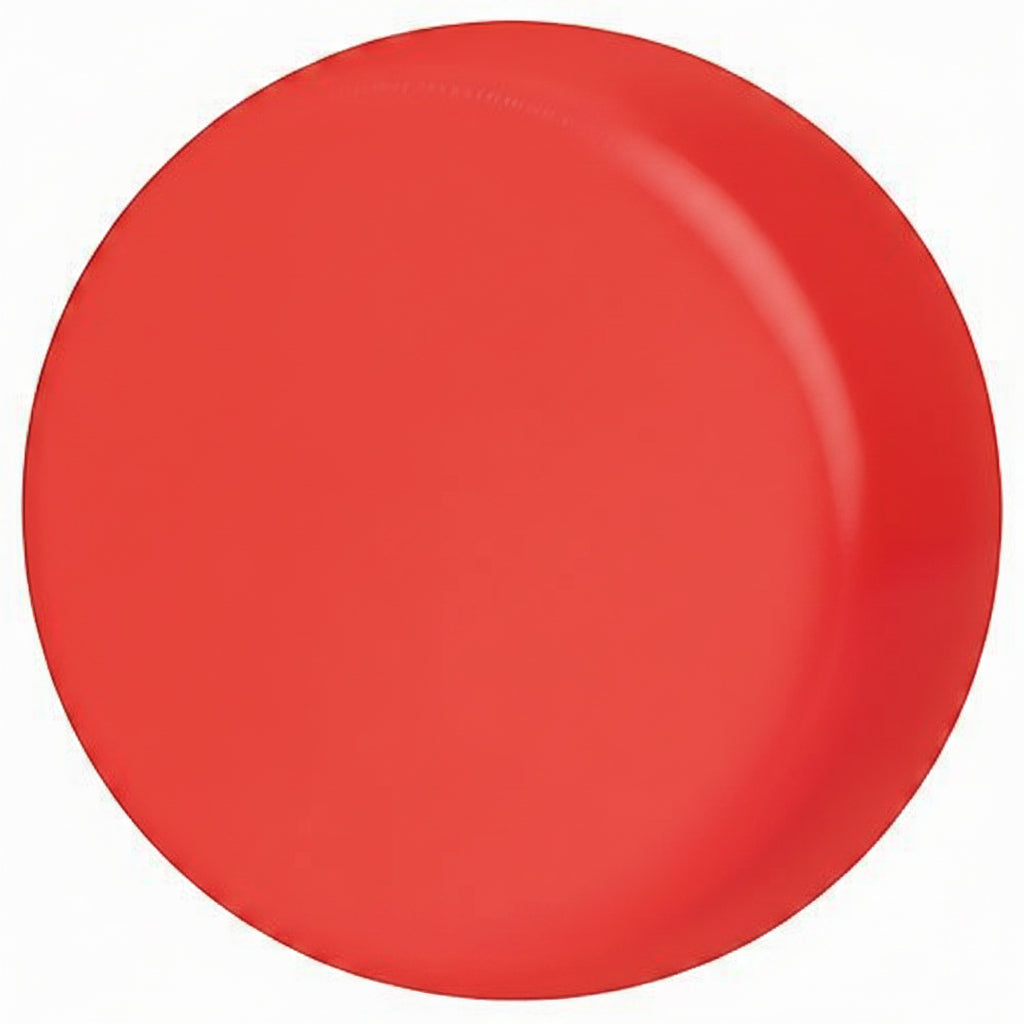

Eaton ELHSRC Wheelock Eluxa LED Horn Strobe, Ceiling, FIRE Lettering, 24V, 15/30/75/110/150/177 cd, Indoor, Red,

Name: Eaton ELHSRC Wheelock Eluxa LED Horn Strobe, Ceiling, FIRE Lettering, 24V, 15/30/75/110/150/177 cd, Indoor, Red,
Brand: Eaton
SKU: Raz-ELHSRC
Price: 188.19 USD
Availability: InStock

Sound the alarm. See it from afar.

A ceiling-mount LED horn strobe that combines fire alarm notification with carbon monoxide signaling in one compact device, with field-selectable candela and three horn patterns.

$188.19

In stock

Fast shippingEatonSecure checkout

Eaton ELHSRC Eluxa LED Ceiling Horn Strobe

Six candela settings15, 30, 75, 110, 150, 177 cd

Horn: 86 dB to 91 dBContinuous, T3 and T3/T4

Notification devices must fit the room and the panel.

Different spaces call for different light output and horn patterns, and every device on a circuit adds current load. A single configurable unit keeps layouts flexible.

Without itWithout a configurable horn strobe, you stock different devices for different rooms and fit fewer appliances on each circuit.

✓

With the 15/30/75/110/150/177With the Eluxa, you set candela and horn pattern in the field and take advantage of its low current draw to put more appliances on a circuit.

What you get

Flexible fire and CO notification

Field settings, efficient LEDs and a clean ceiling look in one 24V device.

Field-selectable candela

Choose from 15, 30, 75, 110, 150 or 177 cd to match the space.

177 cd

Maximum candela setting

Six field-selectable settings from 15 cd up to 177 cd.

Three horn patterns

Set Continuous, T3 or T3/T4 to suit the application.

Low current draw

High-efficiency LED technology delivers the industry's lowest current draw, enabling more appliances per circuit.

Tool-free, clean install

A pre-wired mounting plate and field configuration without tools simplify installation, with no visible mounting screws.

Details

Everything you need to know.

Brand	Eaton
Model	15/30/75/110/150/177
Type	Fire alarm horn strobe
Series	Wheelock Eluxa LED
Mounting	Ceiling
Voltage	24V
Candela settings	15, 30, 75, 110, 150, 177 cd
Horn patterns	Continuous, T3, T3/T4
Sound pressure	86 dB (low) to 91 dB (high), anechoic
Color	Red
Environment	Indoor
Listings	UL, CAN/ULC, RoHS compliant

Description

Eaton ELHSRC Wheelock Eluxa LED Horn Strobe, Ceiling, FIRE Lettering, 24V, 15/30/75/110...

Advanced LED horn strobe combining fire alarm notification with carbon monoxide signaling in a single, compact device. Features six field-selectable candela settings (15, 30, 75, 110, 150, 177 cd) and three horn patterns—Continuous, T3, and T3/T4—for flexible deployment in ceiling-mount applications. Engineered with high-efficiency LED technology that delivers the industry's lowest current draw, reducing power consumption and enabling more appliances per circuit. The sleek, low-profile design integrates seamlessly with interior décor while maintaining professional aesthetics with no visible mounting screws. Produces 86 dB (low) to 91 dB (high) sound pressure in anechoic conditions. Meets NFPA 72 requirements for fire and CO low-frequency sounder codes in sleeping areas. UL and CAN/ULC listed, RoHS compliant, and compatible with all major Fire Alarm Control Panels. Operates at 24V with pre-wired mounting plate for simplified installation and field configuration without tools.

Good to know: Meets NFPA 72 requirements for fire and CO low-frequency sounder codes in sleeping areas, and is compatible with all major Fire Alarm Control Panels.
