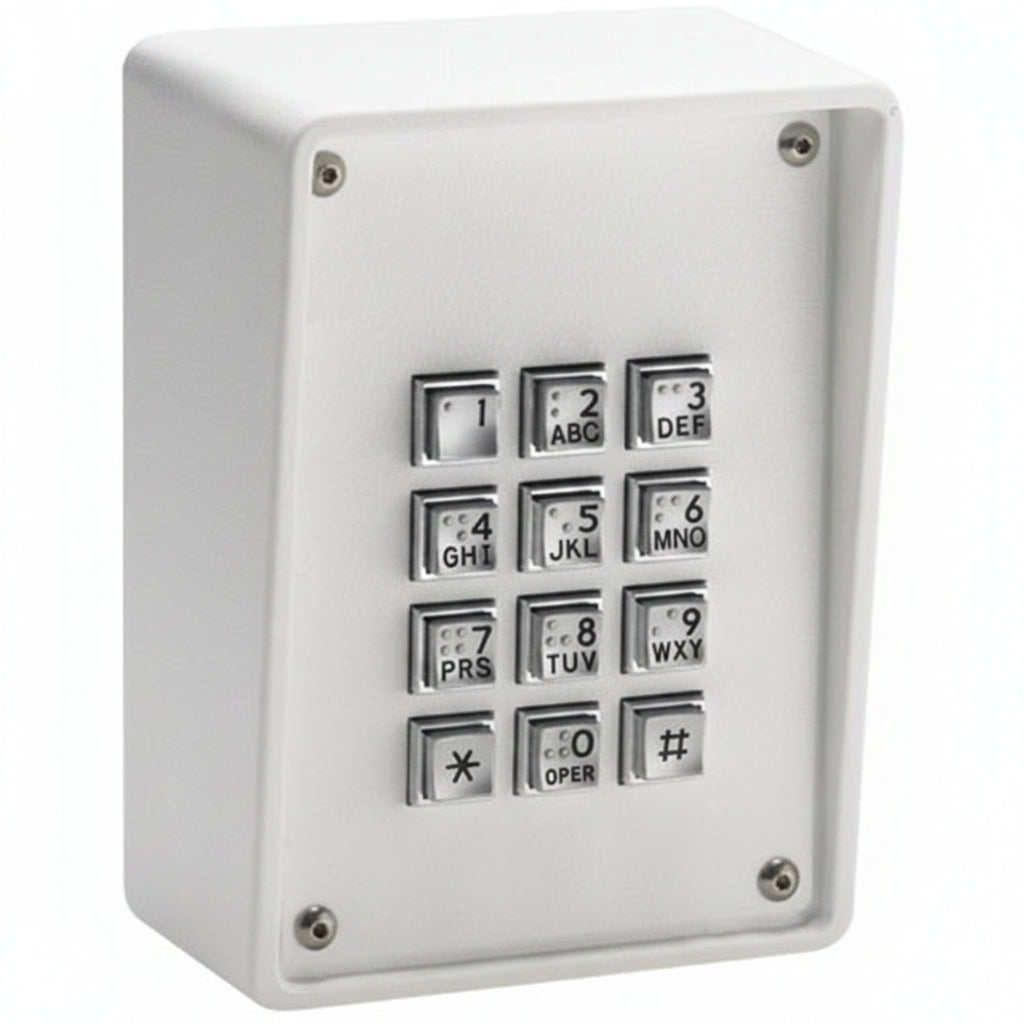

Linear 212R Door-Gard Indoor/Outdoor Surface-Mount Ruggedized Keypad Access Device, Brushed Metal
$538.11
Ruggedized keypad access device with cast aluminum housing and polyurethane-treated metal faceplate for superior corrosion resistance. Features durable metal Braille alpha-numeric keys with internal sounder for key press feedback. Supports up to 120 users with key code technology for secure, affordable access control.
Tamper-resistant design includes onboard tamper loop to detect faceplate removal. Four programmable timed relays provide flexible access scheduling. Weather-resistant, self-contained construction suitable for indoor/outdoor use.
Versatile mounting options include walls, posts, gates, goosenecks, and concrete surfaces. Surface-mount vandal-resistant design enhances durability in high-traffic areas.
Operating voltage: 12-24 VAC/DC (auto-adjusting). Current draw: 108 mA maximum (add 30 mA per additional relay). Temperature range: -20°F to 130°F. Dimensions: 3.75″ W × 5.25″ H × 2.50″ D.
Ideal for commercial and residential door security applications requiring robust, weather-resistant access control.
Tamper-resistant design includes onboard tamper loop to detect faceplate removal. Four programmable timed relays provide flexible access scheduling. Weather-resistant, self-contained construction suitable for indoor/outdoor use.
Versatile mounting options include walls, posts, gates, goosenecks, and concrete surfaces. Surface-mount vandal-resistant design enhances durability in high-traffic areas.
Operating voltage: 12-24 VAC/DC (auto-adjusting). Current draw: 108 mA maximum (add 30 mA per additional relay). Temperature range: -20°F to 130°F. Dimensions: 3.75″ W × 5.25″ H × 2.50″ D.
Ideal for commercial and residential door security applications requiring robust, weather-resistant access control.
