IDEAL 85-385 CAT6 and 6A Feed-Thru RJ-45, 50-Card

Name: IDEAL 85-385 CAT6 and 6A Feed-Thru RJ-45, 50-Card
Brand: Ideal
SKU: Raz-85-385
Price: 103.34 USD
Availability: InStock

Terminate cleanly, crimp after crimp.

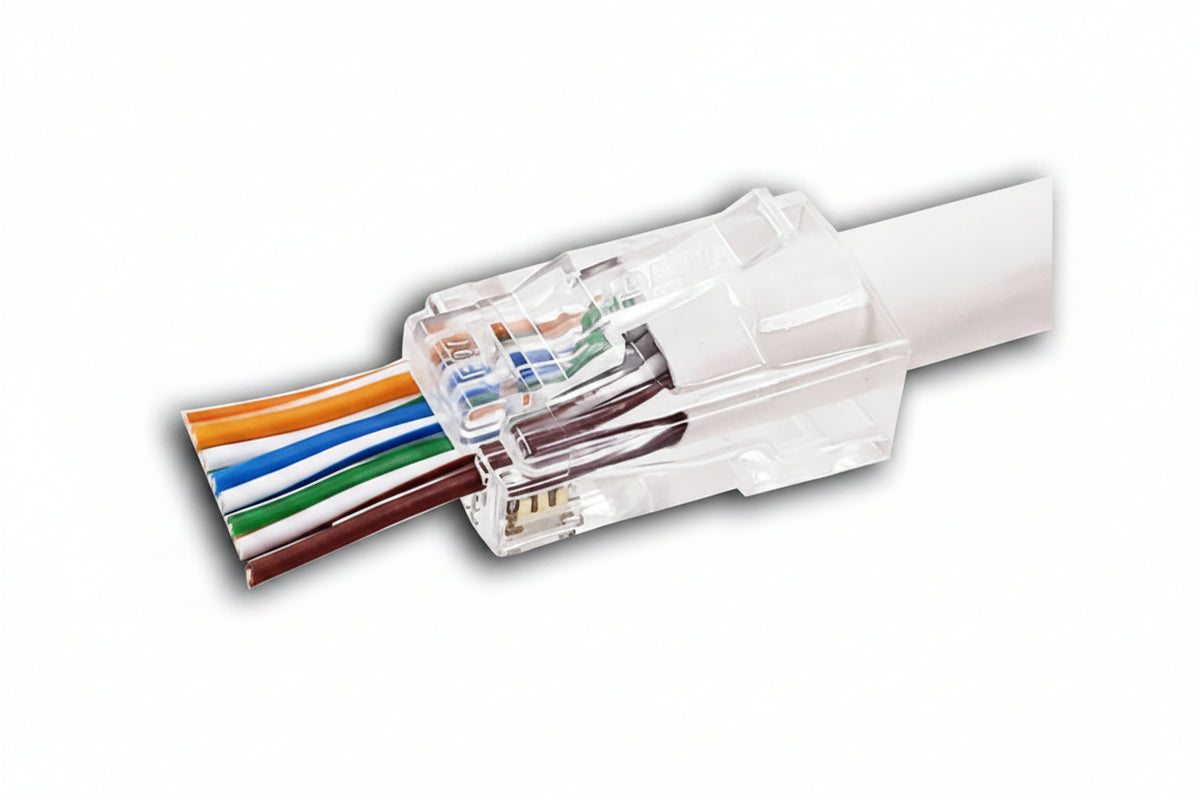

A feed-thru RJ-45 plug for CAT6A and CAT6 shielded twisted pair cable. Its single-piece housing takes larger conductors without precision trimming, load bars or multi-piece assemblies.

$103.34

In stock

Fast shippingIdealSecure checkout

Ideal 85-385 CAT6 Feed-Thru RJ-45 50-Card

Shielded CAT6A and CAT6 cableFeed-Thru RJ-45 plug

Works with the FT-45 crimp toolNo adjustments or blade changes

Thick conductors make plugs a hassle to terminate.

Larger diameter conductors usually mean extra trimming and fussy multi-piece plugs. That slows down every cable you terminate.

Without itYou trim conductors precisely and assemble plugs from several pieces, including load bars.

✓

With the 85-385A single-piece housing with a staggered pin and conductor layout takes the larger conductors without precision trimming, load bars or multi-piece assemblies.

What you get

Built for faster terminations

This feed-thru plug is designed around larger diameter conductors and a simple crimp.

Single-piece housing

One housing replaces multi-piece assemblies, so there are fewer parts to handle.

IDEAL 85-385 CAT6 and 6A Feed-Thru RJ-45, 50-Card

0.320"

Maximum jacket diameter

The plug accepts cable jackets up to 0.320" in diameter.

Staggered pin layout

The staggered pin and conductor layout accommodates larger diameter conductors without precision trimming.

Gold-plated contacts

A 50 micron gold-plated contact area is designed for reliable connections.

FT-45 tool compatible

It works with the FT-45 crimp tool with no adjustments or blade changes needed.

Details

Everything you need to know.

Brand	Ideal
Model	85-385
Type	Feed-Thru modular plug connector (RJ-45)
Cable compatibility	CAT6A and CAT6 shielded twisted pair
Conductor insulation diameter	0.040" to 0.048"
Maximum jacket diameter	0.320"
Contact plating	50 micron gold-plated contact area
Housing	Single-piece
Crimp tool	Compatible with FT-45 crimp tool
Listing	UL Listed
Packaging	Sold as 50-card pack

Description

IDEAL 85-385 CAT6 and 6A Feed-Thru RJ-45, 50-Card

Feed-Thru modular plug connector designed for CAT6A and CAT6 shielded twisted pair cables with insulated conductors measuring 0.040" to 0.048" in diameter. Single-piece housing with staggered pin and conductor layout accommodates larger diameter conductors without requiring precision trimming, load bars, or multi-piece assemblies. Maximum jacket diameter of 0.320". Features 50 micron gold-plated contact area for reliable connections. Compatible with FT-45™ crimp tool—no adjustments or blade changes needed. UL Listed. Sold as 50-card pack.

Good to know: Designed for shielded twisted pair cable with insulated conductors measuring 0.040" to 0.048" and a jacket no larger than 0.320".
