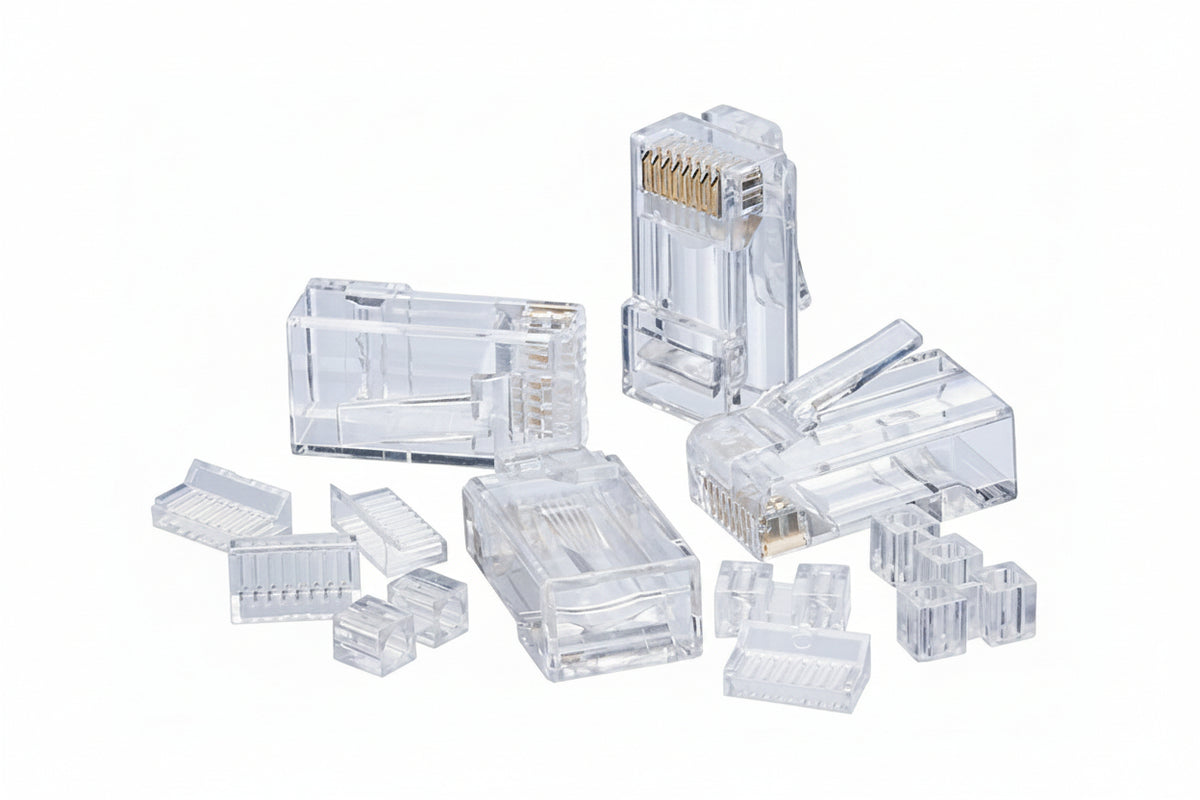

IDEAL 85-366 CAT6 RJ-45 8P8C Modular Plugs, 25-Pack

Name: IDEAL 85-366 CAT6 RJ-45 8P8C Modular Plugs, 25-Pack
Brand: Ideal
SKU: Raz-85-366
Price: 54.58 USD
Availability: InStock

Terminate CAT6 clean, every time.

Ideal 85-366 RJ-45 8P8C modular plugs for CAT6 twisted pair cabling up to 250 MHz. Each 25-pack supports field termination to both TIA-568A and TIA-568B.

$54.58

In stock

Fast shippingIdealSecure checkout

Ideal 85-366 CAT6 RJ-45 8P8C Modular Plugs

CAT6 up to 250 MHz8P8C RJ-45 modular plug

50 micro-inch gold platingOn contact mating areas

A termination is only as good as its plug.

These plugs use a three-piece connector design that maintains proper pair twist ratio and supports field termination.

Without itWithout a plug built for CAT6, you have no stated assurance of pair twist ratio at the termination.

✓

With the 85-366With these plugs, the three-piece design maintains proper pair twist ratio and complies with TIA/EIA standards for TIA-568A and TIA-568B.

What you get

Built for field termination

Each plug is designed to hold the cable and the connection securely once crimped.

Gold-plated contacts

50 micro-inch gold plating on the contact mating areas supports reliable connectivity through hundreds of mating cycles.

IDEAL 85-366 CAT6 RJ-45 8P8C Modular Plugs, 25-Pack

Plugs per pack

Each pack contains 25 CAT6 RJ-45 modular plugs.

Three-piece design

The three-piece connector maintains proper pair twist ratio and supports field termination.

Non-feed-through build

The non-feed-through design prevents external conductor shorting and RF signal leakage.

Permanent crimp, strain relief

A permanent crimp connection with primary strain relief support retains the cable jacket and minimizes conductor movement.

Details

Everything you need to know.

Brand	Ideal
Model	85-366
Type	8P8C RJ-45 modular plug
Category	CAT6 twisted pair, up to 250 MHz
Pack size	25
Contact plating	50 micro-inch gold on contact mating areas
Wiring standards	TIA-568A and TIA-568B
Conductors	23-24 AWG solid or stranded insulated copper, up to 0.041" diameter
Cable jacket	Up to 0.280"
Design	Three-piece, non-feed-through, non-keyed

Description

IDEAL 85-366 CAT6 RJ-45 8P8C Modular Plugs, 25-Pack

8P8C RJ-45 modular plugs designed for CAT6 twisted pair cabling up to 250 MHz. This 25-pack features 50 micro-inch gold plating on contact mating areas for reliable connectivity through hundreds of mating cycles. The three-piece connector design maintains proper pair twist ratio and supports field termination while complying with TIA/EIA standards for both TIA-568A and TIA-568B wiring configurations. Compatible with 23–24 AWG solid or stranded insulated copper conductors up to 0.041" diameter and cable jackets up to 0.280". Non-feed-through design prevents external conductor shorting and RF signal leakage. Permanent crimp connection with primary strain relief support to retain cable jacket and minimize conductor movement. Works with standard modular plug crimping tools meeting industry specifications. Non-keyed connectors for universal compatibility with standard jacks and ports.

Good to know: Works with standard modular plug crimping tools meeting industry specifications. The crimp connection is permanent.
