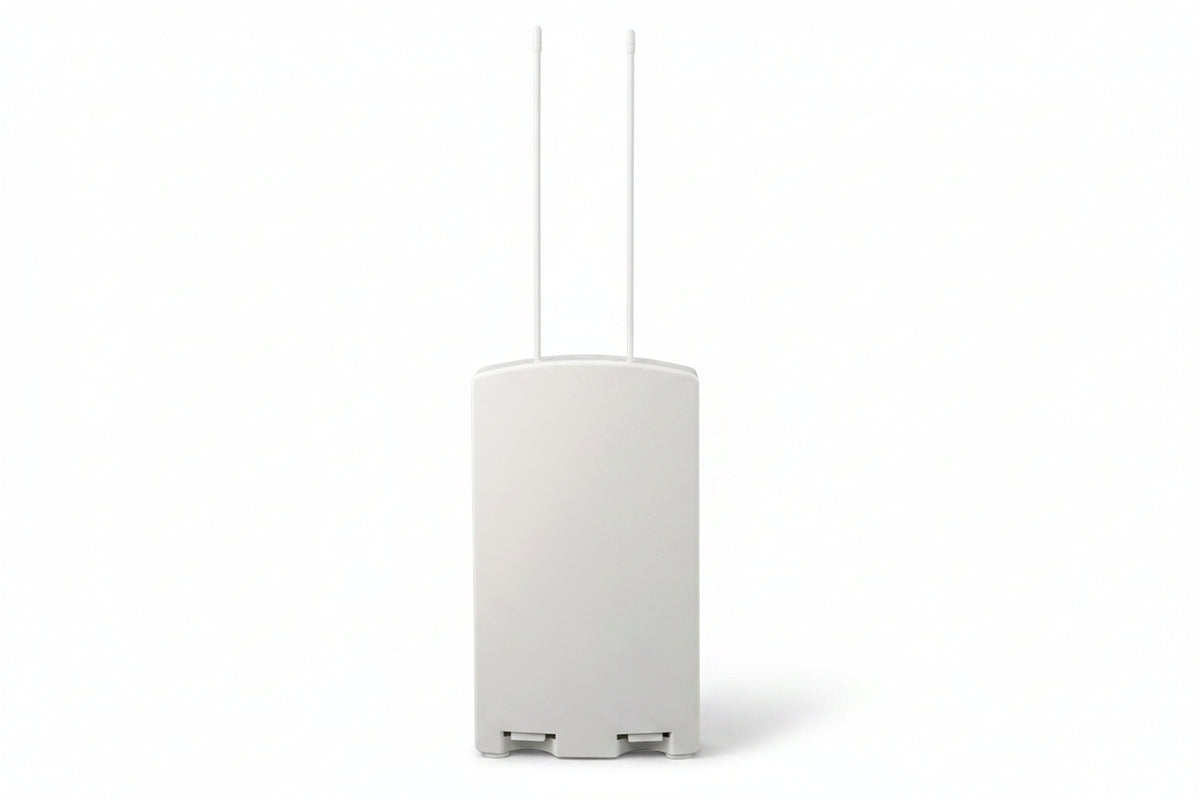

ELK M1XRF319 M1 Wireless Receiver for 319.5 MHz Sensors
Hear every wireless zone.
A wireless receiver and input expander for security control systems. It connects to the four-wire data bus and supports up to 144 wireless zones from compatible 319.5MHz sensors.

Wireless sensors need a receiver that hears them.
A security system can only act on signals it receives. This receiver brings wireless sensor signals to your control system over the four-wire data bus.
Built for wide wireless coverage
A dual-antenna design, room to add more receivers and updatable firmware keep the wireless side of your system flexible.
144 wireless zones
Supports up to 144 wireless zones from compatible 319.5MHz sensors.

Wireless zones supported
Supported from compatible 319.5MHz sensors on a single receiver.
Phase diversity antennas
A dual-antenna phase diversity design provides extended wireless coverage and long-range signal reception.
Add up to 9 receivers
Connect up to 9 additional receivers to a single control unit for redundancy and expanded coverage.
Flash firmware updates
Flash memory enables firmware updates for enhanced functionality and compatibility.
Everything you need to know.
| Brand | ELK |
| Model | M1XRF319 |
| Type | Wireless RF receiver and input expander |
| Sensor frequency | 319.5MHz |
| Wireless zones | Up to 144 |
| Connection | Four-wire data bus |
| Antennas | Dual, phase diversity design |
| Additional receivers | Up to 9 per control unit |
| Firmware | Updatable via flash memory |
| Housing | Plastic |
ELK M1XRF319 M1 Wireless Receiver for 319.5 MHz Sensors
Need help with compatibility?
Looking for a manufacturer part number, compatible replacement, or quantity order? Contact Raztechs for sourcing and quote support.

ELK M1XRF319, ready to order.
- Plastic housing
- Dual antennas
- Mounting hardware
- Installation instructions
