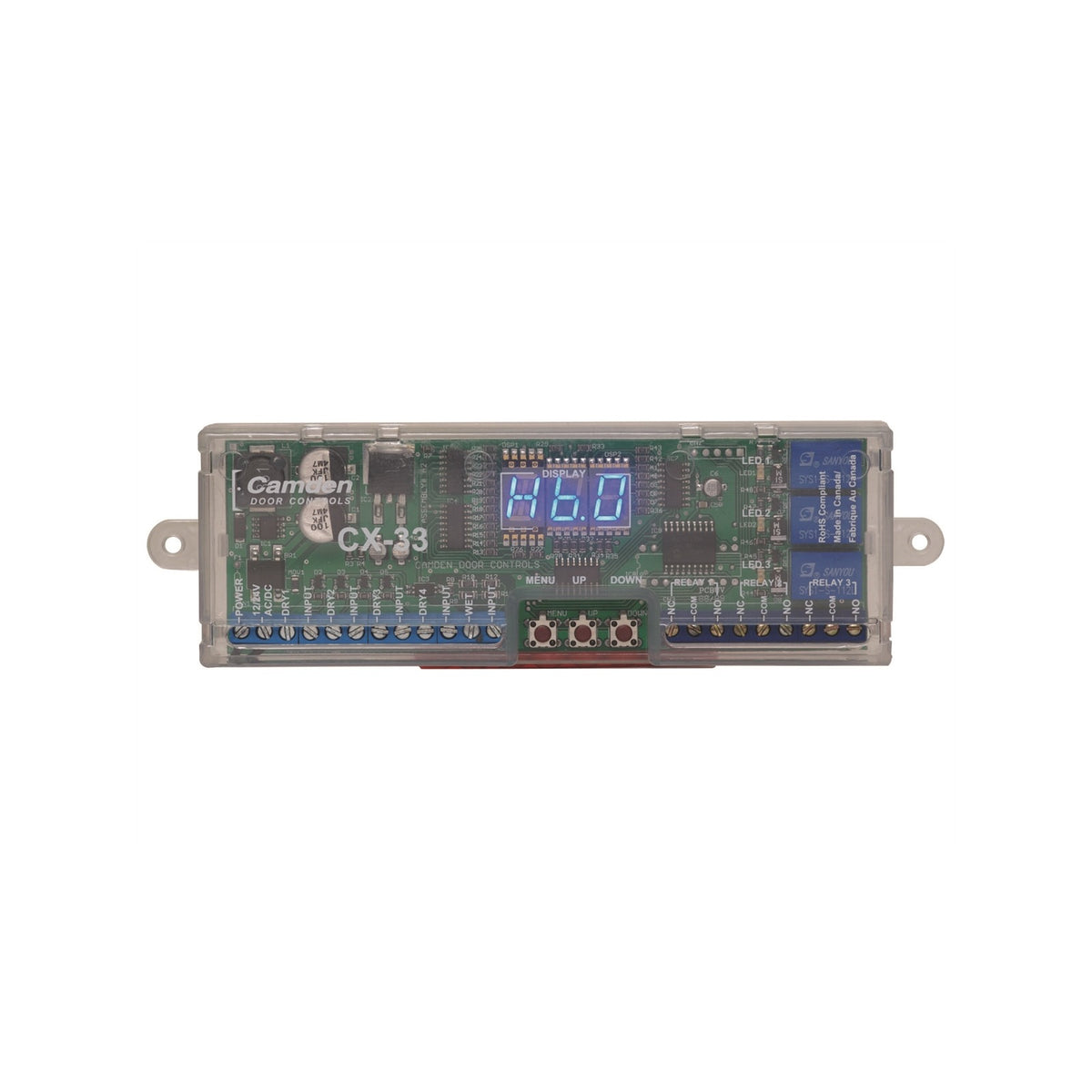

Camden CX-33 Advanced Logic Relay

Every door, exactly in sequence.

The CX-33 is a logic relay with 15 operating modes and sub-modes for automatic door, air lock and other security applications. Set it up with 3 push buttons and a large LED display.

$174.00
In stock
See details
Fast shippingCamdenSecure checkout
CX-33 Advanced Logic Relay
15 operating modesWith sub-modes, set by push button
12/24VAC/DCSPDT contact, .5 second response

Automatic doors need more than one on/off signal.

Air locks and secure entries often depend on several inputs acting in order, with the right outputs held or maintained. A logic relay handles that sequencing in one module.

✕
Without itWithout it, sequencing multiple inputs and timed outputs means piecing together separate control components.
✓
With the CX-33With the CX-33, you pick an operating mode, set the time delays and sequence multiple inputs with maintain and hold outputs.
What you get

Built for flexible door control

The CX-33 combines programmable modes, clear feedback and a rugged build for door and security applications.

15 operating modes

Choose from 15 operating modes with sub-modes, selected and configured with 3 push buttons.

Camden CX-33 Advanced Logic Relay
15

Operating modes

Each with sub-modes, configured with 3 push buttons.

Input and output sequencing

Easily sequence multiple inputs with multiple maintain and hold outputs.

Selectable time delays

Set time delays, including a delay on input activation.

Power filtering and surge protection

Tried and true power circuitry provides outstanding power filtering and surge protection.

The brand

Camden

25 Camden products at Raztechs.

Shop Camden
  • Fast shippingUS and Canada
  • 30-day returnsOn eligible items
  • Quotes & sourcingJust ask
Details

Everything you need to know.

BrandCamden
ModelCX-33
ApplicationDoor Control
Contact TypeSPDT (Single Pole Double Throw)
Operating Voltage12 to 24 volts ac/dc
Current Draw105 ma typical, 320ma maximum
Response Time.5 second
Operating Temperature-22°F to 185°F
Mounting(2) #6 screws or velcro
Dimensions6.00" W x 0.90" H
Country of OriginCA
Description

Camden CX-33 Advanced Logic Relay

The CX-33 Advanced Logic Relay is a sophisticated control solution engineered for automatic door systems requiring reliable, multi-mode operation. This versatile relay delivers flexible programming capabilities that adapt to diverse security applications, from simple access control to complex automation sequences. Designed with user accessibility in mind, the CX-33 simplifies setup and configuration while maintaining the precision needed for professional installations. Its logic-based architecture supports multiple operating modes, enabling seamless integration into existing door control infrastructure.

Good to know: A metal cabinet with the CX-33 and a 2.5A power supply is available as a separate option.

Need help with compatibility?

Looking for a manufacturer part number, compatible replacement, or quantity order? Contact Raztechs for sourcing and quote support.

Request a quote
Camden CX-33 Advanced Logic Relay
At a glance

Camden CX-33, ready to order.

  • Application: Door Control
  • Contact Type: SPDT (Single Pole Double Throw)
  • Operating Voltage: 12 to 24 volts ac/dc
  • Current Draw: 105 ma typical, 320ma maximum
$174.00CX-33
