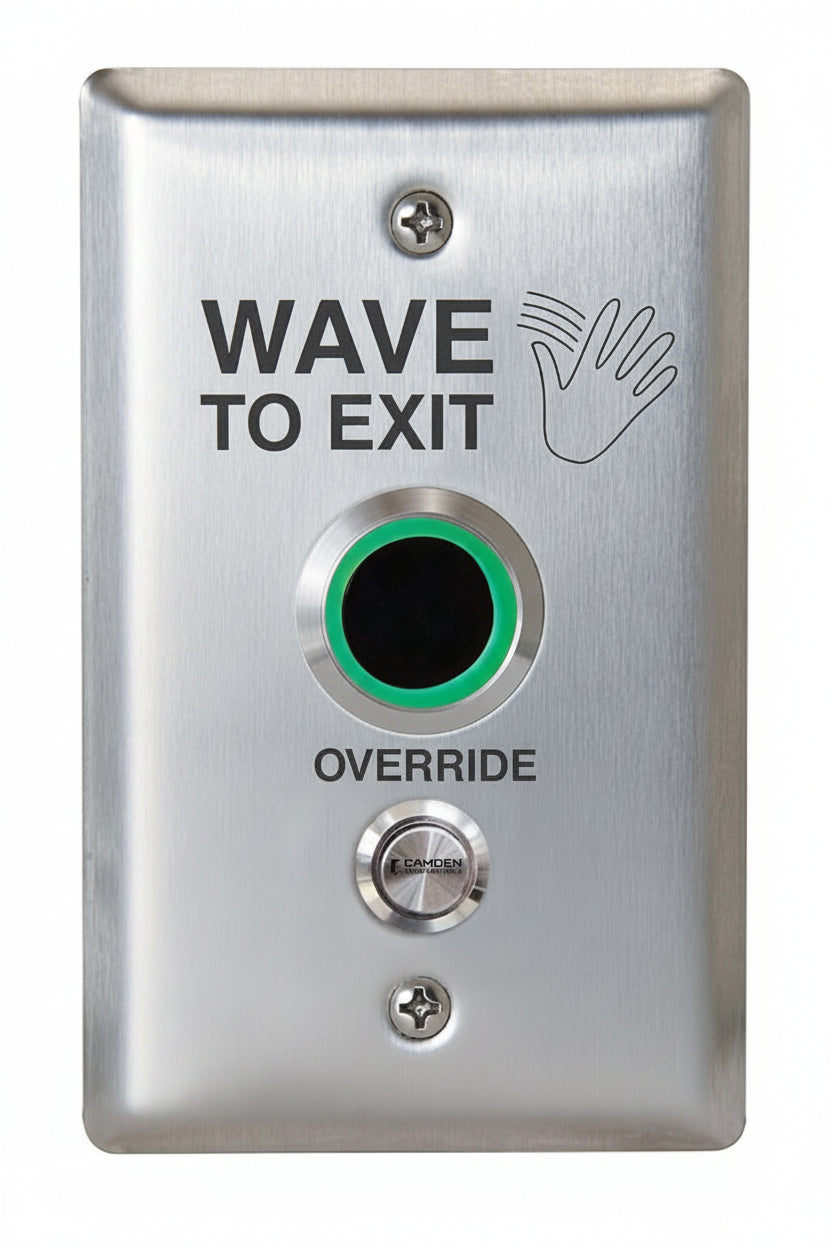

Camden CM-221M/46 No-Touch Switch, Single Gang, Illuminated, with Manual Override (Replaces SD-9263-KSQ)

Wave. Door opens.

A touch-free exit switch with an illuminated light ring and a sensor range you can set from 2" to 8" (5 to 20cm). Wave a hand near it to trigger a door or access control system.

$195.00
In stock
See details
Fast shippingCamdenSecure checkout
Camden CM-221M/46 Single Gang No-Touch Switch
Sensor range 2" to 8"Adjustable, 5 to 20cm
IP65 ratedIndoor and outdoor use

Push buttons get touched by everyone.

An exit button on an access-controlled door is used all day. A no-touch switch lets people trigger the door without pressing anything, and the light ring shows its status.

✕
Without itEveryone presses the same exit button, and it has to be placed where a hand can reach it.
✓
With the CM-221M/46A wave within the set sensor range triggers the relay, with a Red / Green or Blue / Green light ring on the faceplate.
What you get

Built for door and access control

The CM-221M/46 pairs an adjustable sensor with a stainless steel faceplate and a relay output for access control systems.

Adjustable sensor range

Set the detection distance anywhere from 2" to 8" (5 to 20cm) to suit the mounting spot.

Camden CM-221M/46 No-Touch Switch, Single Gang, Illuminated, with Manual Override (Replaces SD-9263-KSQ)
IP65

Ingress protection rating

Rated for indoor and outdoor use.

Time delay and toggle

Adjust the time delay from 0.5 to 20s, or use toggle operation.

Illuminated light ring

Red / Green or Blue / Green light ring with switch or remote activation.

Weather and water resistant

IP65 rated for indoor and outdoor use, with a stainless steel faceplate and laser etched graphics resistant to cleaners.

The brand

Camden

25 Camden products at Raztechs.

Shop Camden
  • Fast shippingUS and Canada
  • 30-day returnsOn eligible items
  • Quotes & sourcingJust ask
Details

Everything you need to know.

BrandCamden
ModelCM-221M/46
Product LineValueWave
Sensor Range2" to 8"
Timer Duration500ms to 20s
Input Voltage12V DC
Contact(1) Form 'C', 1A at 30VDC
MaterialStainless Steel
Gang TypeSingle Gang
ColorSilver
Print/MessageHandicap Logo
ADA CompliantYes
Description

Camden CM-221M/46 No-Touch Switch, Single Gang, Illuminated, with Manual Override (Repl...

Camden ValueWave 12/24VDC touchless switch with 1-relay, IP65 rated for indoor and outdoor use. Ideal for automatic door and access control systems. Features adjustable sensor range from 2" to 8" (5-20cm), adjustable time delay (0.5-20s), and toggle operation. Red/Green or Blue/Green illuminated light ring with switch or remote activation options. Weather and water resistant construction with single gang stainless steel faceplate. Laser-etched graphics resistant to cleaners. Includes manual override switch. One Form 'C' contact rated at 1A at 30VDC.
Good to know: This model includes the option for a manual 'Override' switch, and the faceplate carries a Handicap Logo.

Need help with compatibility?

Looking for a manufacturer part number, compatible replacement, or quantity order? Contact Raztechs for sourcing and quote support.

Request a quote
Camden CM-221M/46 No-Touch Switch, Single Gang, Illuminated, with Manual Override (Replaces SD-9263-KSQ)
At a glance

Camden CM-221M/46, ready to order.

  • Product Line: ValueWave
  • Sensor Range: 2" to 8"
  • Timer Duration: 500ms to 20s
  • Input Voltage: 12V DC
$195.00CM-221M/46
