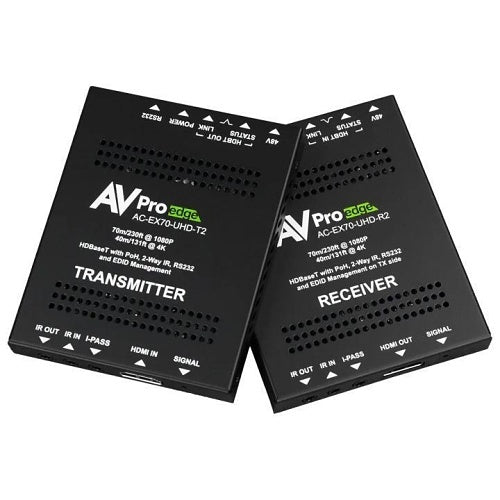

AVPro Edge AC-EX70-UHD-KIT 10Gbps HDBaseT Extender Kit, EDID Management, 70m

Name: AVPro Edge AC-EX70-UHD-KIT 10Gbps HDBaseT Extender Kit, EDID Management, 70m
Brand: AVPro Edge
SKU: Raz-AC-EX70-UHD-KIT
Price: 550.0 USD
Availability: InStock

Extend 4K up to 70 m.

An HDBaseT extender kit that sends HDMI 2.0 video up to 70 m over a single twisted-pair cable, with EDID management and RS232 and IR control built in.

$550.00

In stock

Fast shippingAVPro EdgeSecure checkout

AVPro Edge AC-EX70-UHD-KIT HDBaseT Extender Kit

Video up to 70 mOne CAT-5E/6A cable

4K60 4:2:0 or 4K30 4:4:4Up to 10.2 Gbps, uncompressed

Your display is rarely next to your source.

Long HDMI runs are hard to keep clean. HDBaseT carries video, power and control over one network-style cable so the install stays tidy and the signal stays intact.

Without itWithout it, you are limited by HDMI cable length or juggling separate runs for video, control and power at the display end.

✓

With the AC-EX70-UHD-KITWith it, one UTP/STP cable carries uncompressed HD and UHD video, RS232 and IR control, and 48 V PoH from a single power supply.

What you get

Built for clean long-run installs

Video, control and power travel together, with the tools to keep sources and displays talking.

Single-cable distance

Extends HDMI 2.0 video up to 70 m over one UTP/STP LAN cable (CAT-5E/6A).

AVPro Edge AC-EX70-UHD-KIT 10Gbps HDBaseT Extender Kit, EDID Management, 70m

70 m

HDBaseT reach

Video extension over a single twisted-pair cable.

48 V PoH, one supply

Power over HDBaseT runs the kit from a single power supply.

EDID management

14 pre-configured EDIDs, plus copy and bypass modes, help sources and displays agree on a format.

Control and protection

Bi-directional RS232 and IR transport with a 3-20 V protection circuit, and ESD protection to 7 KV on inputs and outputs.

Details

Everything you need to know.

Brand	AVPro Edge
Model	AC-EX70-UHD-KIT
Product type	HDBaseT HDMI extender kit
Extension distance	Up to 70 m
HDMI version	HDMI 2.0
Signal bandwidth	Up to 10.2 Gbps, uncompressed
Resolutions	4K60 4:2:0, 4K30 4:4:4, QSXGA
Power	48 V PoH, one power supply
Content protection	HDCP 2.2 and earlier
Control	Bi-directional RS232 and IR, CEC pass-through
EDID	14 pre-configured, copy, bypass
ESD protection	Up to 7 KV on inputs and outputs

Description

AVPro Edge AC-EX70-UHD-KIT 10Gbps HDBaseT Extender Kit, EDID Management, 70m

The AC-EX70-UHD-KIT is a professional-grade HDMI extender kit that extends HD and UHD signals up to 70 meters over a single Cat5E/6/6A/7 twisted-pair cable using HDBaseT technology. Delivering uncompressed video at 10.2 Gbps, it reliably transmits 1080p signals up to 230 feet and 4K UHD up to 115 feet, supporting resolutions including 4K60 4:2:0, 4K30 4:4:4, and QSXGA. Built for commercial and residential installations, this compact unit features HDMI 2.0 compatibility, 48V Power over HDBaseT (PoH) with single power supply, and comprehensive EDID management with 14 pre-configured profiles plus copy and bypass modes. Full-featured control includes bi-directional RS232 and IR signal transport with 3-20V protection, HDCP 2.2 support, CEC pass-through, and 3D compatibility. The kit includes 7KV ESD protection on all inputs and outputs, LED status indicators for link and power monitoring, and is CE and RoHS certified. Ideal for control rooms, conference centers, and demanding AV environments where clean installations and failure-free operation are essential.

Good to know: Stated distances are 1080p up to 230 feet and 4K UHD up to 115 feet over the twisted-pair cable.
