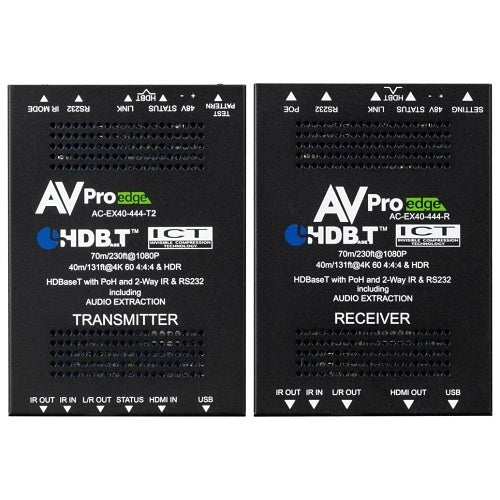

AVPro Edge AC-EX40-444-KIT 18Gbps HDBaseT Extender, HDMI 2.0, 40m

Name: AVPro Edge AC-EX40-444-KIT 18Gbps HDBaseT Extender, HDMI 2.0, 40m
Brand: AVPro Edge
SKU: Raz-AC-EX40-444-KIT
Price: 820.0 USD
Availability: InStock

Full 4K60. No compromise.

A HDBaseT extender kit that sends UHD 4K60 4:4:4 video with 17.82Gbps bandwidth over twisted pair copper, up to 40 meters from source to display.

$820.00

In stock

Fast shippingAVPro EdgeSecure checkout

AVPro Edge AC-EX40-444-KIT HDBaseT Extender

UHD 4K60 4:4:4 video17.82Gbps bandwidth

Up to 40 metersOver twisted pair copper

Your display is far from your source.

A long HDMI run needs a transmission method that keeps the picture intact. This kit carries UHD 4K60 4:4:4 video over standard twisted pair copper cabling up to 40 meters.

Without itWithout it, you are limited by how far a source can sit from the display.

✓

With the AC-EX40-444-KITWith it, the source and display can be up to 40 meters apart over twisted pair copper, with full HDR support and control signals passed through.

What you get

Built for clean installs

Test tools, signal management and single-supply power help you set up and troubleshoot the system.

Full HDR support

Handles HDR10, HDR10+, and HLG for pristine image quality without artifacts.

AVPro Edge AC-EX40-444-KIT 18Gbps HDBaseT Extender, HDMI 2.0, 40m

40m

Maximum extension distance

Over standard twisted pair copper cabling.

Built-in test patterns

4K and HD test patterns on both the transmitter and receiver help with troubleshooting.

Power over HDBaseT

Bi-directional 48 V PoH with a single power supply eliminates extra cabling.

Control pass-through

CEC pass-through, I-Pass control signals, and IR transport with 3-20 V protection for bi-directional RS232.

Details

Everything you need to know.

Brand	AVPro Edge
Model	AC-EX40-444-KIT
Video	UHD 4K60 4:4:4
Bandwidth	17.82Gbps
Distance	Up to 40 meters
Cabling	Twisted pair copper
HDR	HDR10, HDR10+, HLG
Downscaling	4K to 1080p
Power	Bi-directional 48 V PoH, single power supply
Audio	L/R audio extraction on transmitter and receiver
Certifications	CE Certified, RoHS Compliant
HDMI	Yes

Description

AVPro Edge AC-EX40-444-KIT 18Gbps HDBaseT Extender, HDMI 2.0, 40m

Professional-grade HDMI extender kit delivering uncompressed UHD 4K60 4:4:4 video transmission over standard twisted pair copper cabling up to 40 meters. Features 17.82Gbps bandwidth with full HDR support including HDR10, HDR10+, and HLG for pristine image quality without artifacts. Equipped with proprietary Invisible Compression Technology for high-fidelity signal delivery. Includes 4K to 1080p downscaling, EDID management, and 3D support for flexible system integration. Built-in test patterns on both transmitter and receiver simplify installation and troubleshooting. Bi-directional 48V Power over HDBaseT with single power supply eliminates extra cabling. Supports CEC pass-through, L/R audio extraction, I-Pass control signals, and IR transport with 3-20V protection. Integrated ESD protection and cascade capabilities enable complex AV installations. Ideal for matrix switch integration, point-to-point extension, and retrofit applications in residential and commercial environments. CE Certified and RoHS Compliant for reliability and safety standards compliance.

Good to know: The transmitter and receiver both include built-in 4K and HD test patterns, which you can use to troubleshoot the link during installation.
