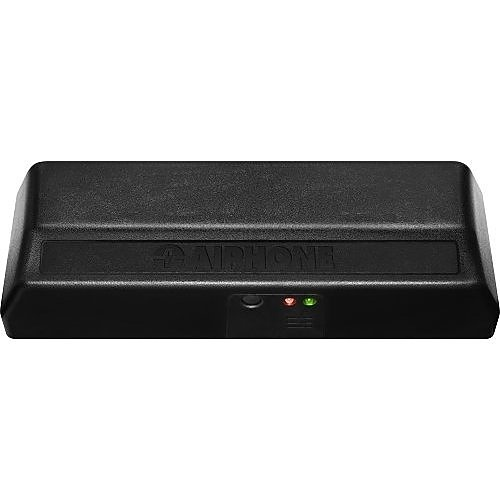

Aiphone AC-2DM-B Two-Door Controller with Integrated PIR/REX – Black Enclosure, Wired Connectivity, Supports Back-to-Back Readers

Name: Aiphone AC-2DM-B Two-Door Controller with Integrated PIR/REX – Black Enclosure, Wired Connectivity, Supports Back-to-Back Readers
Brand: Aiphone
SKU: Raz-AC-2DM-B
Price: 1394.22 USD
Availability: InStock

Two doors. One controller.

The AC-2DM-B is a two-door access controller with a built-in PIR motion sensor and request-to-exit. It mounts above an interior doorway and supports back-to-back Wiegand readers.

$1,394.22

In stock

Fast shippingAiphoneSecure checkout

Badge in, walk outBack-to-back readers, PIR/REX

Up to 100,000 card holders2 doors, PoE powered

Every door needs a reader, a REX and a lock supply.

Separate boxes for each add wiring, mounting points and more parts to manage. A controller that folds them together keeps the doorway installation simpler.

Without itYou mount and wire a controller, a motion sensor and a lock power source for each opening.

✓

With the AC-2DM-BOne black enclosure over the doorway gives you two doors of control, built-in PIR/REX and 12VDC, 500mA lock power.

What you get

Built for the doorway

Reader inputs, relays, motion sensing and diagnostics sit in a single wired unit.

Back-to-back Wiegand readers

Two Wiegand reader inputs support credentialing from both sides of an entry point.

Aiphone AC-2DM-B Two-Door Controller with Integrated PIR/REX – Black Enclosure, Wired Connectivity, Supports Back-to-Back Readers

100,000

card holders

The controller supports up to 100,000 card holders.

Integrated PIR and REX

The infrared motion sensor provides request-to-exit without a separate sensor.

Relays, inputs and lock power

Two solid state dry contact relays, four configurable inputs and integrated lock power (12VDC, 500mA).

Built-in diagnostic LCD

An onboard display helps with diagnostics, and custom scripting and actions are available.

Details

Everything you need to know.

Brand	Aiphone
Model	AC-2DM-B
Number of Doors	2
Reader Inputs	(2) Wiegand
Relays	(2) solid state dry contact
Configurable Inputs	(4)
Lock Power	12VDC, 500mA
Power	PoE powered
Connectivity	Wired
Mount Type	Surface Mount
Indoor/Outdoor	Indoor
Color	Black

Description

Aiphone AC-2DM-B Two-Door Controller with Integrated PIR/REX – Black Enclosure, Wired C...

The AC-2DM-B is a compact, high-performance two-door access controller featuring integrated passive infrared (PIR) motion detection and request-to-exit (REX) capability. Engineered for interior doorway installations, this unit is designed to be mounted above doorways and supports simultaneous use of back-to-back Wiegand readers, enabling flexible credentialing from both sides of an entry point. Housed in a sleek black enclosure, the AC-2DM-B offers a discreet yet durable access control solution ideal for commercial, institutional, or enterprise-grade environments. Equipped with two solid-state dry contact relays and four configurable inputs, the controller allows for seamless integration with a variety of security and automation systems. Its advanced support for up to 100,000 card holders ensures scalability for larger deployments, while compliance make it suitable for government and regulated environments. Offering robust performance in a minimalist form, the AC-2DM-B is a powerful access control component for modern security infrastructures.

Good to know: Rated for indoor use only and surface mounted, so plan it for an interior doorway.
