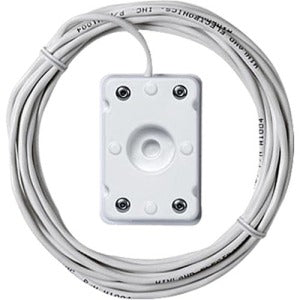

Winland W-S-U Water Sensor Wired Detection for WaterBug WB200 WB350

Catch the leak before it spreads.

A hardwired water sensor for the WaterBug WB200 and WB350 alarm systems. It detects water at floor level and works as a replacement or an added sensor for existing installs.

$73.46
In stock
See details
Fast shippingWinland ElectronicsSecure checkout
Winland Electronics WB200 Water Sensor
Water at the sump pumpSensor sits at floor level
Up to 6 sensors per deviceUp to 200' of wire run

Water damage starts out of sight.

Leaks in basements, crawlspaces and mechanical rooms often start in places nobody checks. A sensor at floor level gives the alarm system something to react to.

✕
Without itA slow leak runs under the sump pump or behind the washer until someone happens to walk by.
✓
With the WB200The W-S-U sensor detects water at floor level and signals the WaterBug control unit over a hardwired connection.
What you get

Wired detection you can extend

The W-S-U is a surface sensor that works with the WaterBug WB200 and WB350 water alarm systems.

Hardwired connection

The sensor connects to the control unit by wire and ships with a 15' (4.57 m) cable.

Winland W-S-U Water Sensor Wired Detection for WaterBug WB200 WB350
200'

Maximum sensor distance

For 1 to 2 sensors; 3 to 6 sensors can be located up to 100' (30.48m) away.

Add up to six sensors

The WB200 accepts up to six total W-S-U sensors, with additional sensors sold separately.

Long wire runs

1 to 2 sensors can be located up to 200' (60.96m) from the device, using 18-22 AWG twisted pair wire.

Fits existing systems

Works as a replacement or expansion sensor and is compatible with existing WaterBug installations.

The brand

Winland Electronics

26 Winland Electronics products at Raztechs.

Shop Winland Electronics
  • Fast shippingUS and Canada
  • 30-day returnsOn eligible items
  • Quotes & sourcingJust ask
Details

Everything you need to know.

BrandWinland Electronics
ModelWB200
ConnectivityWired
Sensor TypeSurface Sensor (Unsupervised) W-S-U
Cable Length15' (4.57 m)
Sensors per DeviceUp to six total
Power Requirements8 to 28V DC at 35mA or 12 to 28 V AC at 100mA
Output1 Form C (N.O./N.C.), 30V DC at 1 Amp resistive / 24V AC at 1 Amp resistive
Operating Range32 to 130 F (0 to 54 C), non-condensing, indoor use only
Dimensions4.1" x 2.36" x 1.18" (10.4cm x 6.0cm x 3.0cm)
Weight3.53oz
Country of OriginUS
Description

Winland W-S-U Water Sensor Wired Detection for WaterBug WB200 WB350

Winland W-S-U Water Sensor — wired detection probe for WaterBug WB200 and WB350 water alarm systems. Detects water presence at floor level with reliable hardwired connectivity to compatible control units. Essential replacement or expansion sensor for comprehensive water damage prevention in basements, crawlspaces, and mechanical rooms. Compatible with existing WaterBug installations.
Good to know: Make sure the power running to the device has no connection to earth ground, or it may fail to detect water or cause a ground fault.

Need help with compatibility?

Looking for a manufacturer part number, compatible replacement, or quantity order? Contact Raztechs for sourcing and quote support.

Request a quote
Winland W-S-U Water Sensor Wired Detection for WaterBug WB200 WB350
At a glance

Winland Electronics WB200, ready to order.

  • Connectivity: Wired
  • Sensor Type: Surface Sensor (Unsupervised) W-S-U
  • Cable Length: 15' (4.57 m)
  • Sensors per Device: Up to six total
$73.46WB200
