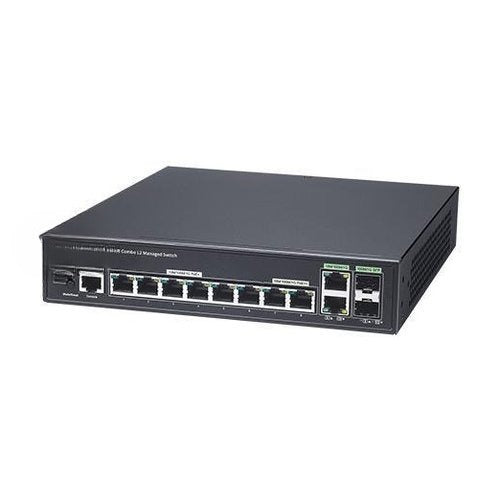

VIVOTEK AW-GEV-108A-130 8-Port Gigabit PoE L2 Managed Switch 130W

Power every camera. Manage every port.

An 8-port Gigabit PoE L2 managed switch with a 130W PoE budget, plus 2 combo GbE ports. Built to power and manage your VIVOCAM network from one box.

$650.00
In stock · only 4 left
See details
Fast shippingVIVOTEKSecure checkout
VIVOTEK AW-GEV-108A-130 8-Port PoE Managed Switch
8 PoE ports, 130W budget802.3 af/at/bt hybrid
bt PoE port max 90WExtended PoE mode up to 250M

Power and data should come from one place.

Every powered device on your network needs both a data link and a power source. A managed PoE switch with a defined budget lets you plan around a fixed 130W.

✕
Without itWithout a managed PoE switch, each powered device needs its own separate power arrangement and there is no built-in device list to check.
✓
With the AW-GEV-108A-130With the AW-GEV-108A-130, 8 PoE ports share a 130W budget, and the Device List and DHCP Server features are built in.
What you get

Managed PoE built for VIVOCAM

Power, management and long-reach options in one 8-port switch.

802.3 af/at/bt hybrid

Supports 802.3 af/at/bt PoE, with a bt PoE port maximum of 90W.

VIVOTEK AW-GEV-108A-130 8-Port Gigabit PoE L2 Managed Switch 130W
130W

PoE budget

Total PoE budget shared across the 8 PoE ports.

Extended PoE Mode

Extended PoE Mode reaches up to 250M for devices placed farther out.

Non-Stop PoE

Non-Stop PoE is built into the switch as a listed feature.

Device List and DHCP Server

A Device List and a DHCP Server are included for managing the devices on your network.

The brand

VIVOTEK

54 VIVOTEK products at Raztechs.

Shop VIVOTEK
  • Fast shippingUS and Canada
  • 30-day returnsOn eligible items
  • Quotes & sourcingJust ask
Details

Everything you need to know.

BrandVIVOTEK
ModelAW-GEV-108A-130
Number of PoE (RJ-45) Ports8
PoE Budget130W
Network Switch TypeManaged
Power over Ethernet (PoE)Yes
PoE Standards802.3 af/at/bt Hybrid
bt PoE Port Max90W
Extended PoE ModeUp to 250M
Uplink Ports2xGbE Combo
TAA CompliantYes
NDAA CompliantYes
Description

VIVOTEK AW-GEV-108A-130 8-Port Gigabit PoE L2 Managed Switch 130W

Professional-grade 8-port Gigabit PoE L2 managed switch designed for surveillance and network deployments. Delivers 130W of total PoE power budget to simultaneously support multiple powered devices including IP cameras, access points, and VoIP endpoints. Built-in Layer 2 management capabilities enable VLAN configuration, QoS prioritization, and network segmentation for optimized traffic control. Sturdy construction rated for outdoor and industrial environments. VIVOTEK engineering ensures reliability and compatibility with enterprise-class video surveillance systems.
Good to know: The 130W PoE budget is the total for the switch, and a single bt PoE port can draw a maximum of 90W.

Need help with compatibility?

Looking for a manufacturer part number, compatible replacement, or quantity order? Contact Raztechs for sourcing and quote support.

Request a quote
VIVOTEK AW-GEV-108A-130 8-Port Gigabit PoE L2 Managed Switch 130W
At a glance

VIVOTEK AW-GEV-108A-130, ready to order.

  • Number of PoE (RJ-45) Ports: 8
  • PoE Budget: 130W
  • Network Switch Type: Managed
  • Power over Ethernet (PoE): Yes
$650.00AW-GEV-108A-130
