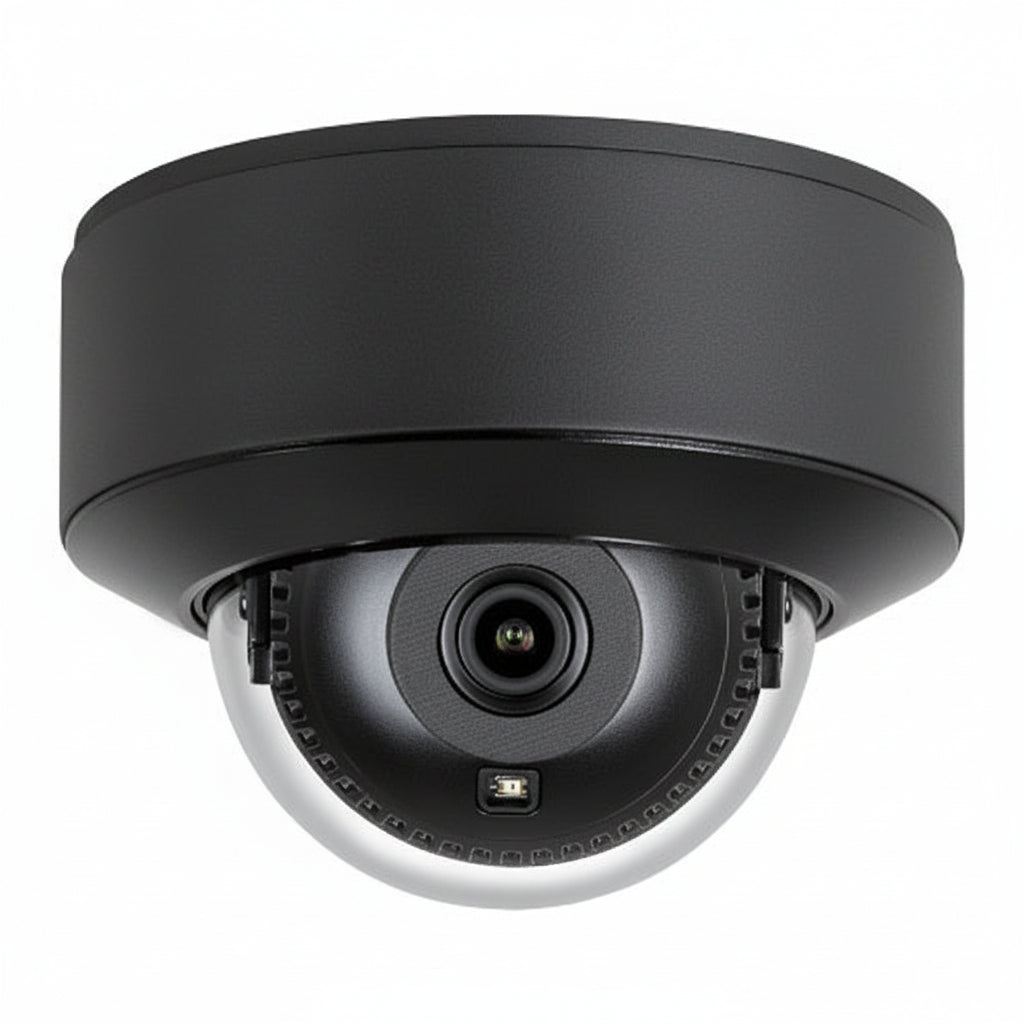

Luma LUM-520-IP-DFB 520 Series 5MP Dome IP Outdoor Camera, 2.8mm Fixed Lens, Black

See every angle, day and night.

A 5MP outdoor dome IP camera with AI human and vehicle detection, 30m IR night viewing and local SD storage, built for installers who deploy Luma systems.

$384.00
In stock
See details
Fast shippingLumaSecure checkout
Luma LUM-520-IP-DFB 5MP Dome IP Outdoor Camera
Vehicle in the drivewayAI-filtered event alert
Night view: IR up to 30m5MP, IK10, IP67 outdoor dome

False alerts bury the events that matter.

When every passing shadow triggers a notification, clients stop paying attention. Human, vehicle and non-motor vehicle detection helps filter events so the right ones stand out.

✕
Without itWithout it, clients sort through unnecessary notifications and installers configure cameras one by one on a local UI.
✓
With the LUM-520-IP-DFBWith it, AI-filtered events reach the Luma View app and OvrC lets you deploy and configure a whole Luma system in a fraction of the time.
What you get

Built for the install and the client

From AI detection to OvrC deployment, this dome covers the work on both sides of the job.

Intelligent analytics

Human, vehicle and non-motor vehicle detection plus AI-filtered events help reduce false notifications.

Luma LUM-520-IP-DFB 520 Series 5MP Dome IP Outdoor Camera, 2.8mm Fixed Lens, Black
5MP

Effective camera resolution

Paired with a 2.8mm fixed lens and f/1.6 aperture.

Luma View app

Clients get push notifications, fast video viewing, easy sharing of recordings and 16-channel synchronous playback.

Fast OvrC setup

OvrC lets you fully deploy and configure an entire Luma system in a fraction of the time.

Local SD recording

Record to a surveillance-rated SD card with support up to 256GB, with playback in the Luma View app. The card is not included.

The brand

Luma

70 Luma products at Raztechs.

Shop Luma
  • Fast shippingUS and Canada
  • 30-day returnsOn eligible items
  • Quotes & sourcingJust ask
Details

Everything you need to know.

BrandLuma
ModelLUM-520-IP-DFB
Resolution5MP
Lens2.8mm fixed, f/1.6
Night VisionIR up to 30m
Max Frame Rate30fps
Video FormatH.264 / AVC
Ingress ProtectionIP67
Impact ProtectionIK10
Operating Temperature-22-140°F
Memory Card Supported256GB
NDAA CompliantYes
Description

Luma LUM-520-IP-DFB 520 Series 5MP Dome IP Outdoor Camera, 2.8mm Fixed Lens, Black

5MP dome IP camera with 2K resolution and intelligent analytics for accurate threat detection and reduced false alarms. Features 30m IR night vision with even illumination and anti-glare technology. Built-in microphone, audio I/O, and alarm connections for comprehensive monitoring. Local SD card storage up to 256GB with app-based playback and 16-channel synchronous viewing. Fast cloud-based configuration and real-time image adjustment without local UI navigation. Control system integration with advanced PTZ controls and camera management. ONVIF conformant and NDAA compliant. Includes 3-year limited warranty covering parts and labor on defective components under normal use.
Good to know: The SD card for local recording is not included. Use a surveillance-rated card, with support up to 256GB.

Need help with compatibility?

Looking for a manufacturer part number, compatible replacement, or quantity order? Contact Raztechs for sourcing and quote support.

Request a quote
Luma LUM-520-IP-DFB 520 Series 5MP Dome IP Outdoor Camera, 2.8mm Fixed Lens, Black
At a glance

Luma LUM-520-IP-DFB, ready to order.

  • Resolution: 5MP
  • Lens: 2.8mm fixed, f/1.6
  • Night Vision: IR up to 30m
  • Max Frame Rate: 30fps
$384.00LUM-520-IP-DFB
