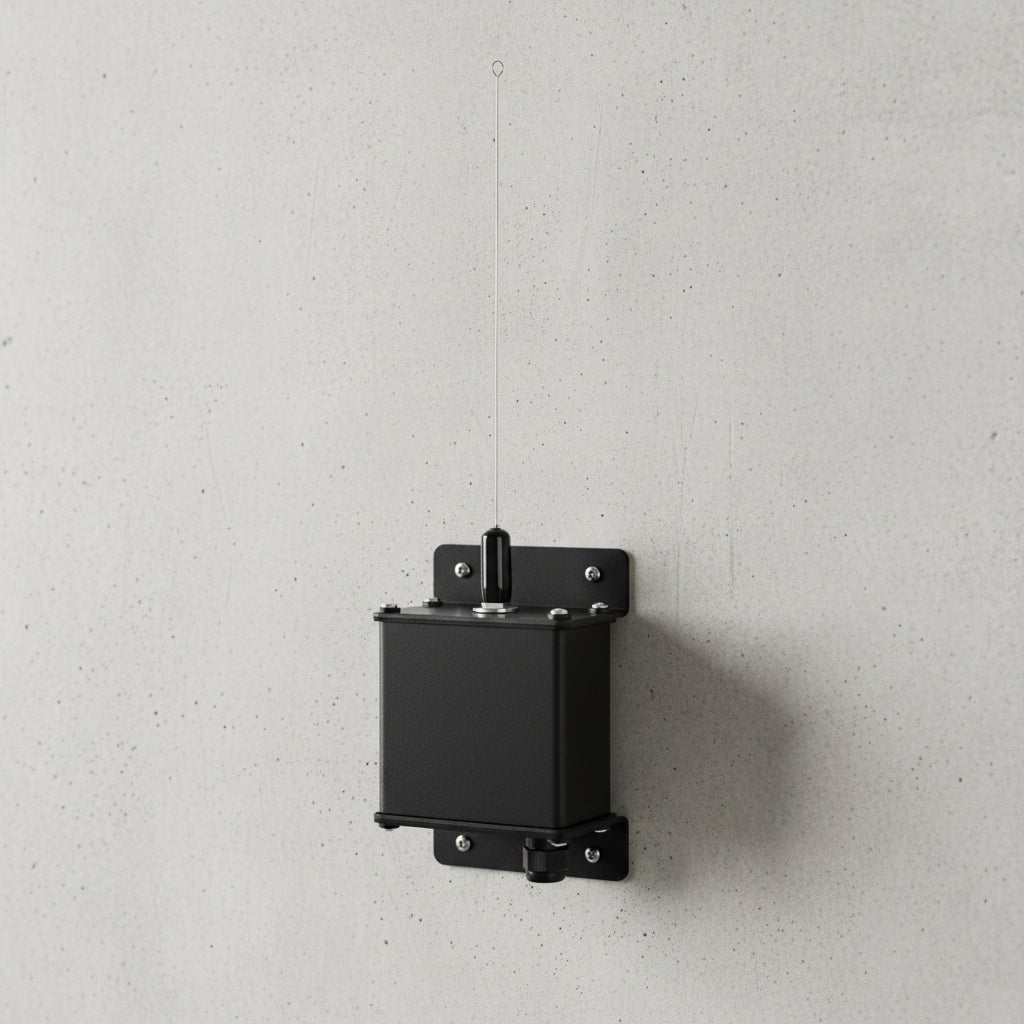

Linear WOR Wiegand Output Receiver, Weather-Resistant Case, Black

Wiegand output receiver designed for wireless access control integration. Receives signals from radio transmitters, adds facility code, and outputs data to access control panels via 5-wire Wiegand connection.

Supports three Wiegand formats (26, 30, 31-bit) and three receiver modes (lockout, hold, button offset). Dipswitches configure facility code (16 switches), transmitter options, and button disable settings. Field-adjustable radio range from 5 to 500 feet via on-board gain knob.

Compatible with three antenna types: supplied local whip antenna, directional remote antenna (EXA-2000), or omni-directional remote antenna (EXA-1000) via RG-59 cable and type F connector.

Weather-resistant enclosure with gaskets and sealed strain relief for indoor or outdoor mounting. Red RADIO indicator shows signal detection. Red/green STATUS indicator displays Wiegand transmission and receiver status. Test points provided for audio signal monitoring.

Dimensions: 4.25" W x 6.25" H x 2.5" D. Enables keyless entry for gates, doors, and barrier arms. Supports multi-button transmitters for access control and emergency triggering.
