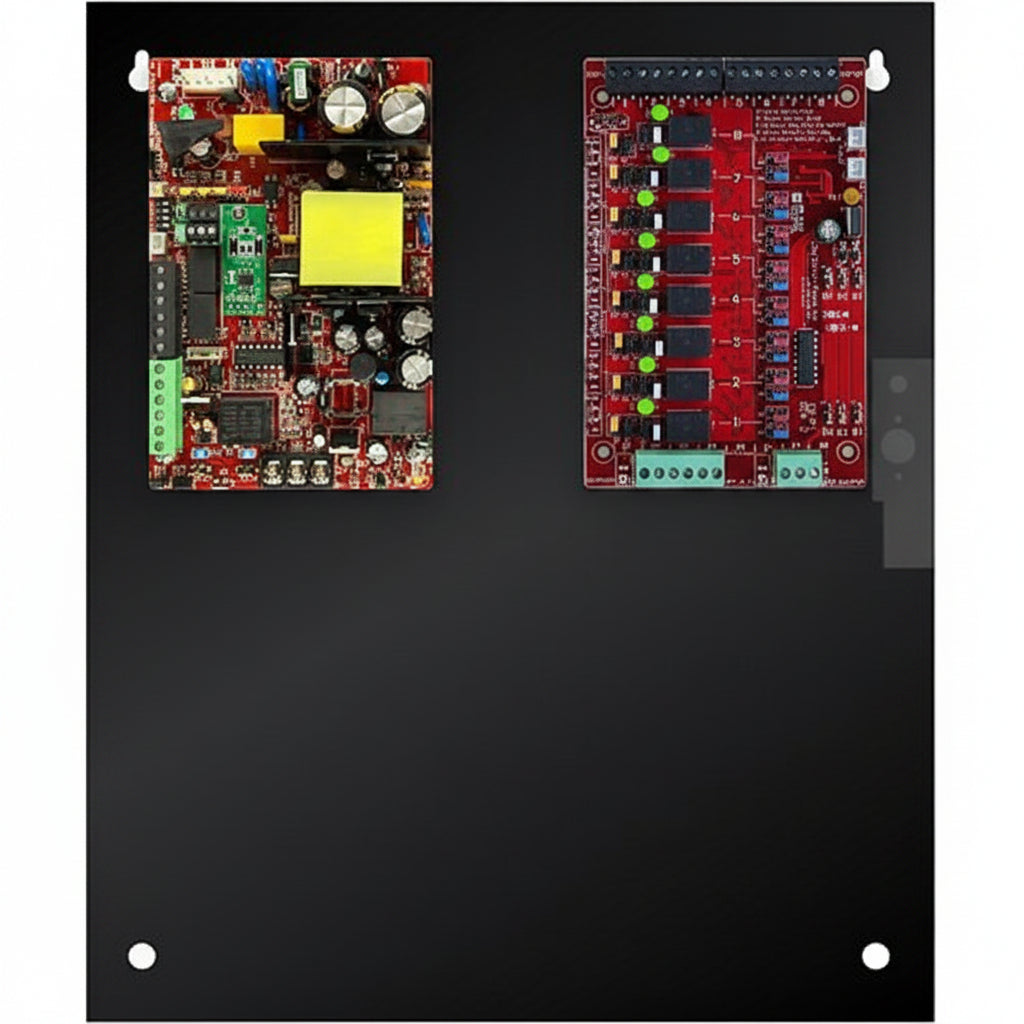

LifeSafety Power FPO75-C8PE1 8-Door 6A 12VDC Lock Class II Distribution Outputs, 12" x 14" x 4.5" Enclosure

Access control power supply designed for modern security systems. Provides 75W output with selectable 12 or 24VDC operation to support locks, control panels, and integrated devices. Features dual voltage capability, intelligent battery charging up to 80 amp-hours, and independent output zone protection with programmable failsafe, failsecure, and dry contact modes.

Includes fire alarm interface for egress lock control, full fault detection and reporting, and field-expandable design without affecting agency listings. Housed in a locking steel enclosure measuring 12" x 14" x 4.5". Supports Fire Alarm, Intrusion, Access Control, CCTV, and Mass Notification applications.

Delivers twice the current at 12V compared to 24V operation. Built with high-efficiency design, fiberglass PCB, RoHS compliance, and lead-free construction. Network communication interface option available.
