LifeSafety Power FPO150-B100C8D8PE4M FLEXPOWER MCLASS Unified Power System, 150W, 12/24V DC, 8-Doors, 8-Lock, AUX Outputs

MCLASS Unified Power Systems combine power modules and access hardware in one compact, UL Listed solution. This 12V/24V DC dual voltage system features a C8 lock control module with eight access control inputs (voltage or dry contact activation) and programmable outputs for failsafe/failsecure operation. The D8 module provides eight auxiliary class II outputs, each configurable for 12 or 24VDC.

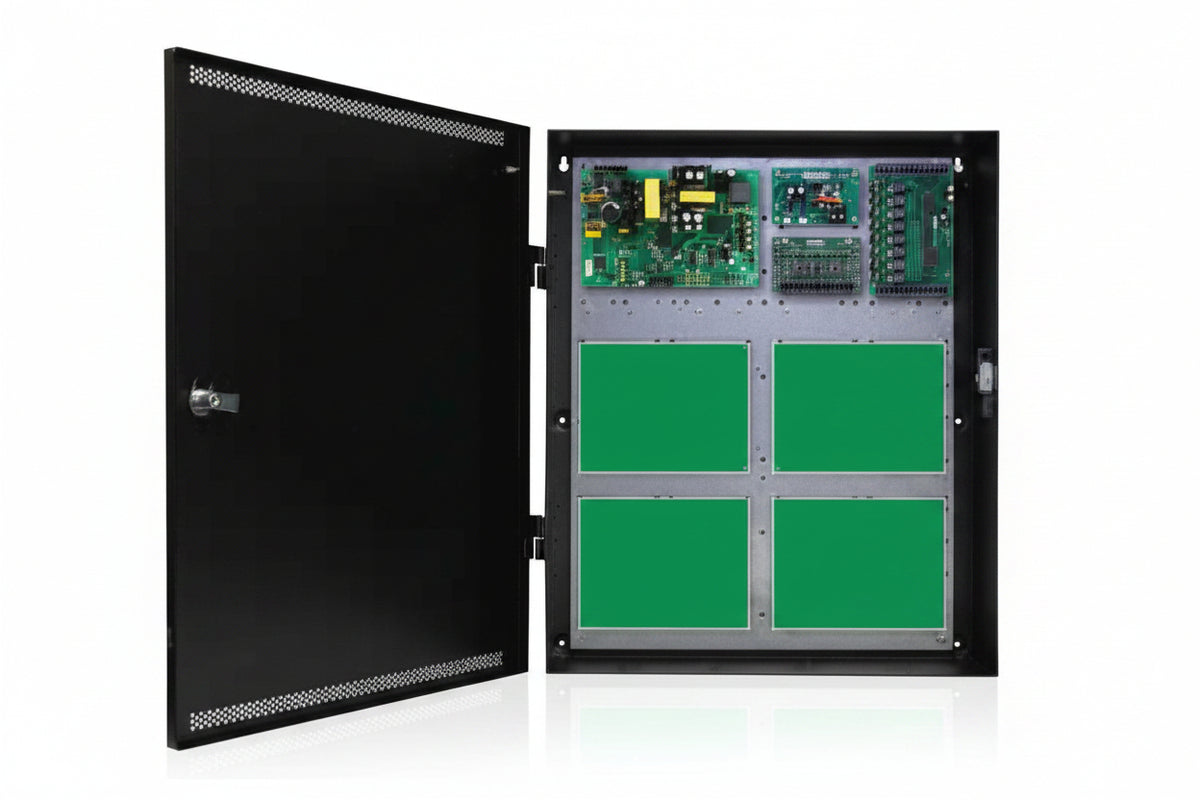

The 150W power supply delivers up to 150W maximum output power. Enclosure is painted steel with removable backplate, lock, two keys, and tamper switch. Pre-installed wire harness includes labeled, color-coded twisted pair shielded communication for panel power, lock control, faults, and tamper monitoring. Integrated fire alarm interface circuit and managed system monitoring for power, batteries, and eight outputs. UL294 and ULC S319 joint listing.
