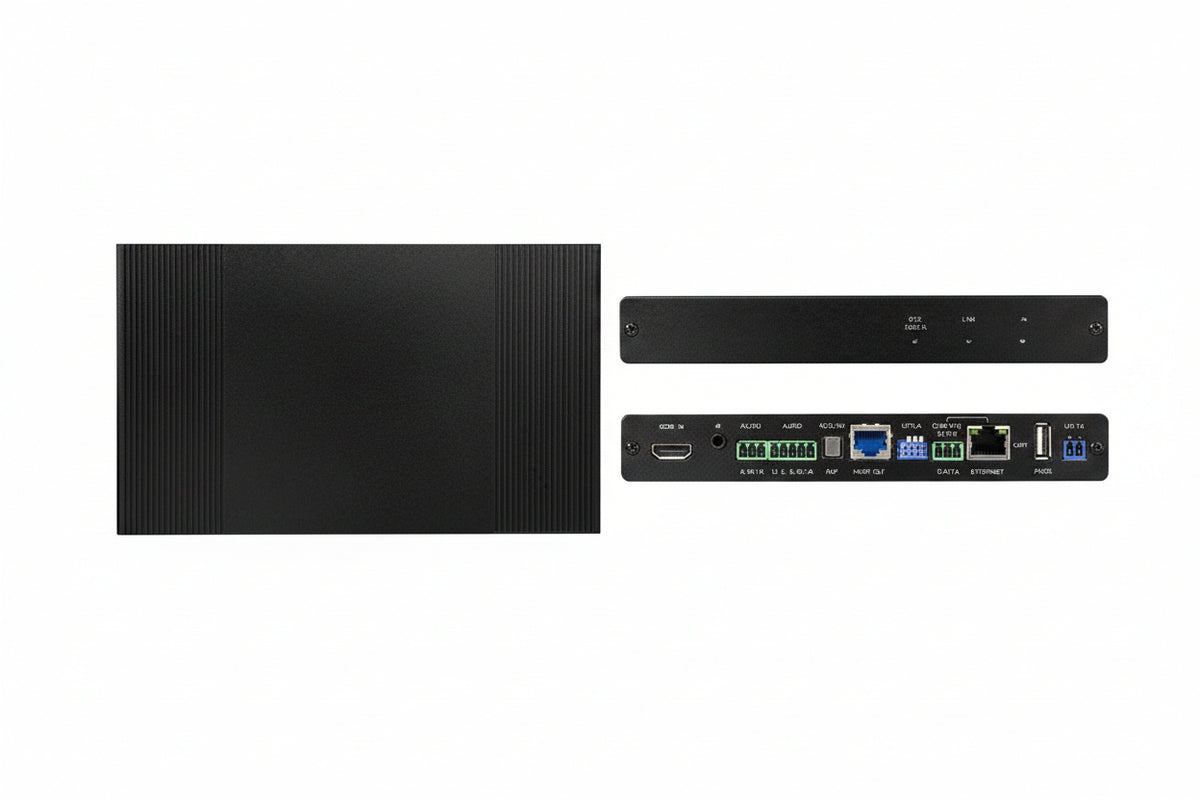

Kramer 50-00010190 TP-594Txr 4K HDR HDMI Line Transmitter with Ethernet RS232/IR and Audio over PoE Extended Reach HDBaseT 2.0

Name: Kramer 50-00010190 TP-594Txr 4K HDR HDMI Line Transmitter with Ethernet RS232/IR and Audio over PoE Extended Reach HDBaseT 2.0
Brand: Kramer
SKU: Raz-50-00010190
Price: 658.0 USD
Availability: InStock

Send 4K the whole distance.

The TP-594Txr is an HDBaseT 2.0 transmitter that carries 4K@60Hz (4:4:4) HDR video, Ethernet, RS-232, IR and audio over twisted pair, up to 100m (330') from a single HDMI input.

$658.00

In stock

Fast shippingKramerSecure checkout

Kramer 5000010190 4K HDR HDMI Line Transmitter

Up to 100m (330') at 4K 60Hz4:4:4 over twisted pair

HDBaseT 2.0 compatiblePoE provider for the receiver

Long cable runs shouldn't cost you picture quality.

Video, control and audio signals usually need separate runs and separate power across a building. Sending them together keeps installs simpler.

Without itWithout it, you run extra cables for Ethernet, control and audio, and power the far end separately.

✓

With the 50-00010190With it, one twisted pair run carries 4K@60Hz (4:4:4) HDR video, Ethernet, RS-232, IR and audio, and the built-in PoE provider powers the receiver end.

What you get

One cable, every signal

The TP-594Txr packs video, control, audio and network extension into a single HDBaseT 2.0 link.

Long-reach 4K video

Extends video up to 100m (330') at 4K and 60Hz (4:4:4) over standard CAT copper cables, with extended reach available for lower HD resolutions.

Kramer 50-00010190 TP-594Txr 4K HDR HDMI Line Transmitter with Ethernet RS232/IR and Audio over PoE Extended Reach HDBaseT 2.0

100m

Reach at 4K 60Hz (4:4:4)

Also listed as 330' of maximum video extension distance over standard CAT copper.

Standard HDBaseT 2.0

Compatible with standard HDBaseT 2.0 systems for flexible system integration.

Ethernet and control

Extends Ethernet and control signals, including RS-232 and IR, alongside the video.

Smart ARC and audio routing

Intelligently routes digital and analog ARC and audio, embedding audio into the HDBaseT signal.

Details

Everything you need to know.

Brand	Kramer
Model	50-00010190
Product Type	Video Extender Transmitter
Maximum Video Resolution	4096 x 2160
Media Type Supported	Twisted Pair
Number of HDMI Inputs	1
Number of Network (RJ-45) Ports	1
Number of USB Ports	1
Power over Ethernet (PoE)	Yes
Width	7.48"
Depth	4.57"
Height	1.06"

Description

Kramer 50-00010190 TP-594Txr 4K HDR HDMI Line Transmitter with Ethernet RS232/IR and Au...

High-performance HDBaseT 2.0 transmitter designed for 4K@60Hz (4:4:4) HDR video, HDMI, Ethernet, RS-232, IR, and stereo audio signals over twisted pair cabling. Extends video signals up to 100m (330ft) over standard CAT copper cables while maintaining 4K@60Hz resolution, with extended reach available for lower HD resolutions. Features intelligent routing of ARC signals to HDMI and digital/analog audio ports, enabling seamless audio embedding into the HDBaseT signal. Supports Ethernet and control signal extension for comprehensive system integration. Built-in PoE provider eliminates the need for separate power at the receiver location. Includes transmitter unit, power adapter, power cord, and mounting bracket for flexible installation in professional AV environments.

Good to know: Extended reach is available for lower HD resolutions. The 100m (330') figure applies to 4K at 60Hz (4:4:4).
