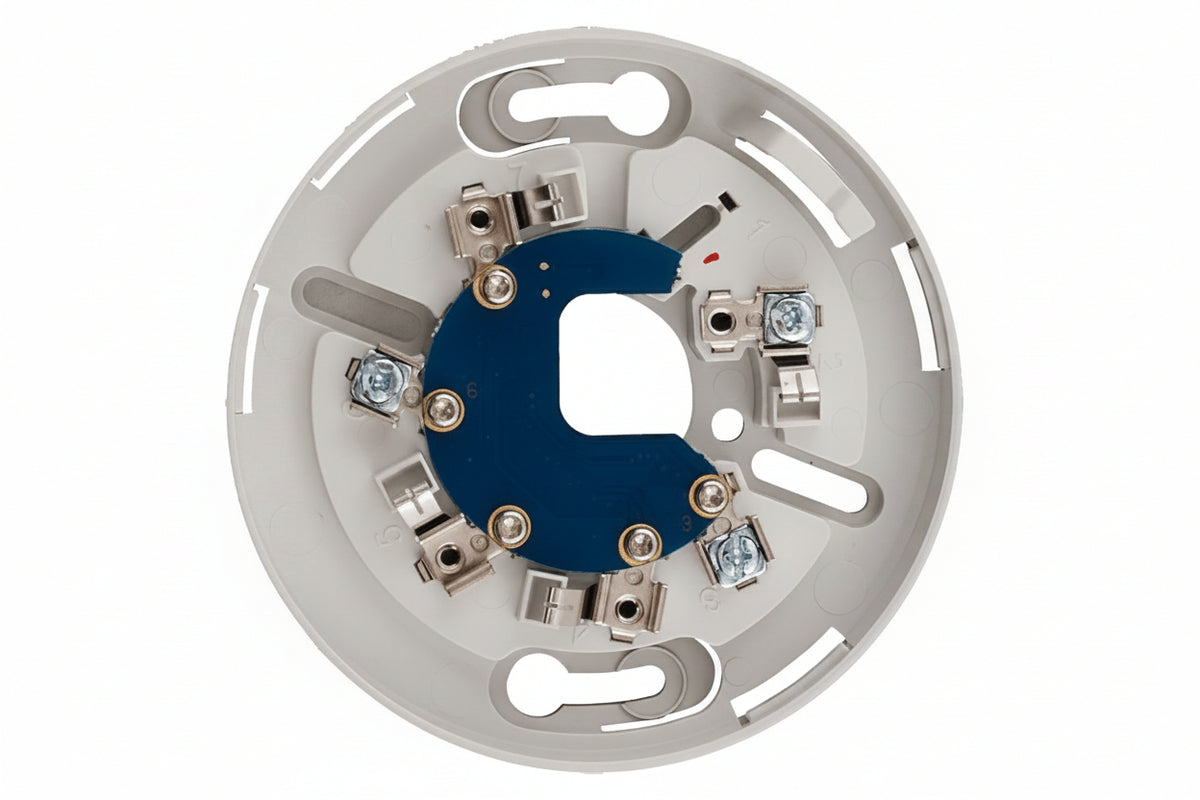

Kidde KC2-RB KC2 Series Relay Base, 4-Terminals, Auxiliary Relay, 4" Diameter

Name: Kidde KC2-RB KC2 Series Relay Base, 4-Terminals, Auxiliary Relay, 4" Diameter
Brand: Kidde
SKU: Raz-KC2-RB
Price: 59.0 USD
Availability: InStock

Heat detection, wired to your panel.

The Kidde KC2-RB is a relay base with a dual rate-of-rise and fixed-temperature sensor, built for AEGIS 2.0 and AEGIS-XLT conventional control units. It has a low-profile 4" design.

$59.00

In stock

Fast shippingKiddeSecure checkout

Auxiliary relay, 4-terminalsNormally open or normally closed

1 amp dry contact at 30 VdcLow-profile 4" diameter

A detector base should do more than hold a detector.

A fire detection system depends on every device reporting reliably to the control unit. This base adds an auxiliary relay and a sensor, and it monitors its own operation.

Without itWithout a relay base, you need separate hardware to switch an auxiliary output from the detector location.

✓

With the KC2-RBThe KC2-RB puts an auxiliary relay, a dual rate-of-rise and fixed-temperature sensor and self-diagnostics in one low-profile 4" base.

What you get

Built for conventional fire systems

The KC2-RB combines sensing, relay switching and self-monitoring in one ceiling base.

Dual-sensor detection

A dual rate-of-rise and fixed-temperature sensor is built into the base.

Kidde KC2-RB KC2 Series Relay Base, 4-Terminals, Auxiliary Relay, 4" Diameter

30 Vdc

Dry contact voltage rating

Rated at 1 amp, with normally open or normally closed operation.

Self-diagnostics

Self-diagnostic capability continually monitors operation, and the supervised relay position helps prevent accidental displacement.

Flexible relay contacts

Supports normally open or normally closed operation with a 1 amp dry contact rating at 30 Vdc.

Low-profile design

The 4" diameter base blends into the ceiling, and a remote LED indicator is available for status monitoring.

Details

Everything you need to know.

Brand	Kidde
Model	KC2-RB
Color	White
Device Supported	Heat Detector
Product Type	Detector Base
Product Series	KC2
Country of Origin	US
Diameter	4"
Terminals	4
Contact Rating	1 amp at 30 Vdc
Compatible Control Units	AEGIS 2.0 and AEGIS-XLT Conventional
Approvals	FM Approved, cULus Listed, California State Fire Marshal Listed

Description

Kidde KC2-RB KC2 Series Relay Base, 4-Terminals, Auxiliary Relay, 4" Diameter

Relay base with dual rate-of-rise and fixed-temperature sensor for fire detection systems. Features self-diagnostic monitoring and supervised relay position to prevent accidental displacement. Supports normally open or normally closed operation with 1 amp dry contact rating at 30 Vdc. Compatible with AEGIS 2.0 and AEGIS-XLT conventional control units. Low-profile 4" diameter design fits seamlessly into ceiling installations. Remote LED indicator available for status monitoring. FM approved and cULus listed for reliable performance in commercial and residential fire safety applications.

Good to know: The KC2-RB is compatible with Kidde Fire Systems AEGIS 2.0 and AEGIS-XLT conventional control units. A remote LED indicator is available separately for status monitoring.
