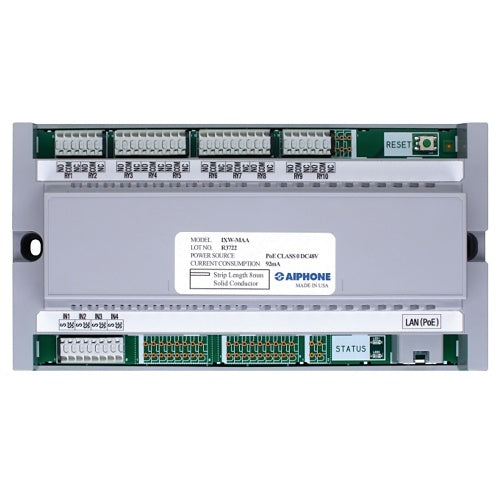

IXW-MAA Multi-Purpose Adaptor for IX Series

The IXW-MAA is a versatile multi-purpose adaptor designed for the IX Series, featuring four contact inputs and ten relay outputs. It enables command transmission to specific stations for task execution, with relay outputs automatically responding to state changes from associated stations. This adaptor supports 802.3af Power over Ethernet (PoE) for simplified installation and offers flexible mounting options—surface-mount directly to walls via integrated mounting points or attach to standard 170mm DIN rails. Wire terminations connect seamlessly to station inputs and outputs. Key Specifications: - 4 contact inputs for command control - 10 Form C relay outputs - 24VAC/DC 500mA relay contact rating - 802.3af PoE support - DIN rail or wall-mount compatible Programming is handled through the IX Support Tool, allowing you to configure the adaptor as an IXW-MA model. Ideal for automation systems requiring distributed control and relay switching across multiple stations.
