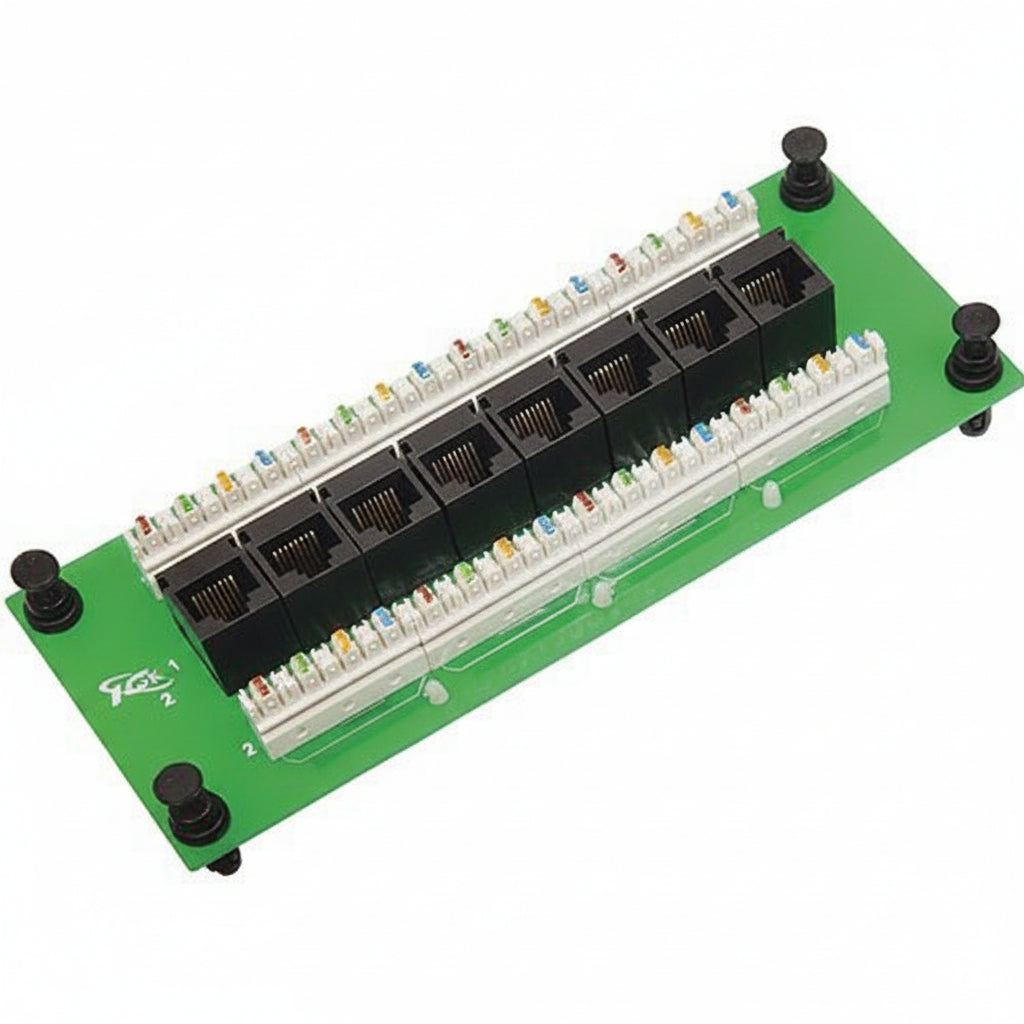

ICC ICRESDPB3C 8-Port CAT6 Data Module

Name: ICC ICRESDPB3C 8-Port CAT6 Data Module
Brand: ICC
SKU: Raz-ICRESDPB3C
Price: 84.02 USD
Availability: InStock

Eight rooms. One clean hub.

A compact 8-port CAT 6 data module for residential broadband distribution. It gives up to eight computers in a home a wired connection through a non-bridged CAT 6 data board.

$84.02

In stock

Fast shippingICCSecure checkout

Up to 8 CAT 6 data linesNon-bridged CAT 6 data board

10dB headroom at 250MHzTested; exceeds TIA/EIA-568-B.2-1

A home network is only as good as its wiring.

Broadband has to reach every computer in the house, and that starts with how the data lines terminate at the network center. A module built for residential wiring keeps those connections organized.

Without itWithout it, each data line needs its own termination point and the network center fills up with loose, unmanaged connections.

✓

With the ICRESDPB3CWith it, up to eight CAT 6 lines terminate on one compact board with eight standard 4-pair 110 IDC connectors.

What you get

Built for residential data wiring

A compact module that brings eight data lines together in your home's network center.

Non-bridged CAT 6 board

The module is integrated with a non-bridged CAT 6 data board with eight standard 4-pair 110 IDC connectors.

CAT 6 data lines supported

Designed to support up to 8 Category 6 data lines.

Tested performance

Connectivity is tested to 10dB headroom at 250MHz, exceeding TIA/EIA-568-B.2-1 standards.

Push-pin installation

Push-pin installation simplifies setup, and four locking buttons are included.

Fits residential network centers

Compatible with 14", 21", 28", and 42" residential network centers, with wiring to the T-568-A standard.

Details

Everything you need to know.

Brand	ICC
Model	ICRESDPB3C
Product Type	Network Patch Panel
Connector Type	Cat6
Data Lines Supported	Up to 8 Category 6
Wiring Standard	T-568-A (residential)
Connectors	Eight standard 4-pair 110 IDC
Height	2.60"
Width	6.50"
Listing	UL listed

Description

ICC ICRESDPB3C 8-Port CAT6 Data Module

Compact 8-port CAT 6 data module designed for residential broadband distribution to multiple computers. Features non-bridged architecture with eight standard 4-pair 110 IDC connectors delivering high-performance connectivity tested to 10dB headroom at 250MHz, exceeding TIA/EIA-568-B.2-1 standards. UL listed with PCB board design for reliable performance. Push-pin installation simplifies setup. Compatible with 14", 21", 28", and 42" residential network centers. Wiring follows T-568-A standard for residential applications. Includes four locking buttons. Use with CAT 6e UTP solid cable for optimal performance.

Good to know: Use with CAT 6e UTP solid cable for optimal performance.
