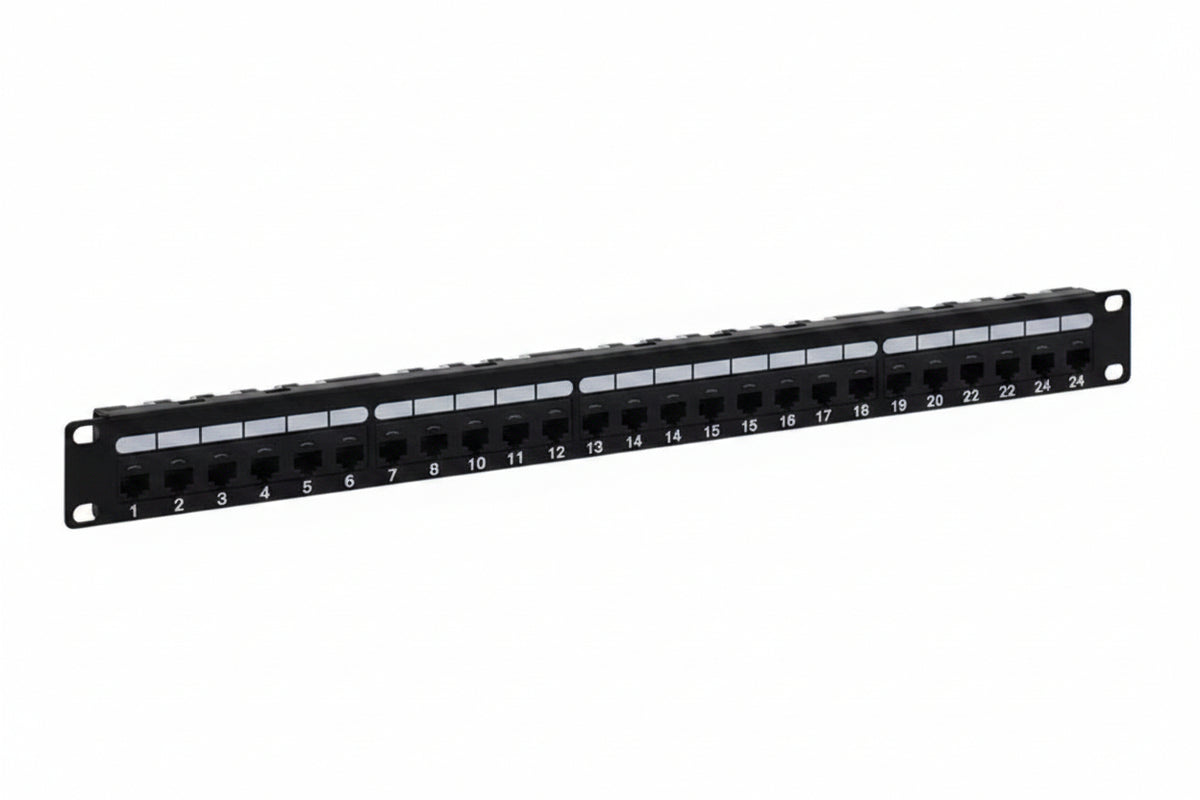

ICC ICMPP0246B Patch Panel, CAT6a, 24-Port, Rms

Clean runs. Ready for 10G.

A 24-port CAT6A patch panel with vertical 110-Type IDC terminations. It gives your rack one tidy 1U home for every cable run, in T568A or T568B wiring.

$310.00
In stock
See details
Fast shippingICCSecure checkout
ICC ICMPP0246B CAT6a 24-Port Patch Panel
24 ports in 1 rack spaceFits 19" wide racks
CAT6A, 10G ratedExceeds ANSI/TIA-568 CAT 6A

A rack is only as good as its terminations.

Crosstalk and loose wires hurt high-bandwidth links. Vertical 110-Type IDC connections reduce potential Alien Crosstalk (AXT) and help improve wire retention.

✕
Without itWithout a proper panel, cable runs end in a tangle that is slow to terminate and harder to keep reliable.
✓
With the ICMPP0246BWith this panel, 24 runs terminate on 110-Type IDC contacts in a single 1U space, ready for patching.
What you get

Built for high-bandwidth cabling

Designed to meet CAT 6A connecting hardware requirements while keeping installs quick.

Vertical 110-Type IDC

Vertical 110-Type IDC connections reduce potential Alien Crosstalk (AXT).

ICC ICMPP0246B Patch Panel, CAT6a, 24-Port, Rms
24

RJ-45 ports

All in a single rack mount space.

Enhanced crosstalk control

Enhanced crosstalk cancellation and reduced return loss support high bandwidth network requirements.

Faster, firmer terminations

110-Type IDC termination helps reduce installation time and improve wire retention.

Gold-plated contacts

50µ" gold plating on all modular contacts protects from corrosion.

The brand

ICC

133 ICC products at Raztechs.

Shop ICC
  • Fast shippingUS and Canada
  • 30-day returnsOn eligible items
  • Quotes & sourcingJust ask
Details

Everything you need to know.

BrandICC
ModelICMPP0246B
Cable TypeCategory 6a
Number of Ports24
Compatible Rack Unit1U
Compatible Rack Width19.0"
Height1.70"
Depth1.30"
Width19.00"
Wiring SchemesT568A or T568B
CertificationUL listed
TAA CompliantYes
Description

ICC ICMPP0246B Patch Panel, CAT6a, 24-Port, Rms

Category 6A 24-Port 110-Type 10G Patch Panel with vertical IDC connections designed for high-performance network installations. Features enhanced crosstalk cancellation and reduced return loss to exceed ANSI/TIA-568 CAT 6A requirements. Supports Power over Ethernet (PoE++) Type 4 up to 100 Watts per port. The vertical 110-Type IDC termination reduces installation time and minimizes Alien Crosstalk (AXT). Six-port modular grouping enables quick administration and labeling. All contacts feature 50µ gold plating for corrosion protection. Occupies 1 rack mount space (RMS) on standard 19" equipment racks. Supports both T568A and T568B wiring schemes. UL Listed and meets TIA-568-C.2 Cat 6A connecting hardware standards. Includes 24 cable ties, mounting hardware, and installation instructions.
Good to know: Operational temperature range is -10° to +60°c, with maximum noncondensing relative humidity of 93%.

Need help with compatibility?

Looking for a manufacturer part number, compatible replacement, or quantity order? Contact Raztechs for sourcing and quote support.

Request a quote
ICC ICMPP0246B Patch Panel, CAT6a, 24-Port, Rms
In the box

ICC ICMPP0246B, ready to order.

  • CAT6A patch panel (24 ports, 110 Type)
  • 24 x cable ties
  • 4 x #12-24 x 5/8" pan head, pilot point machine screws
  • Installation instructions sheet
$310.00ICMPP0246B
