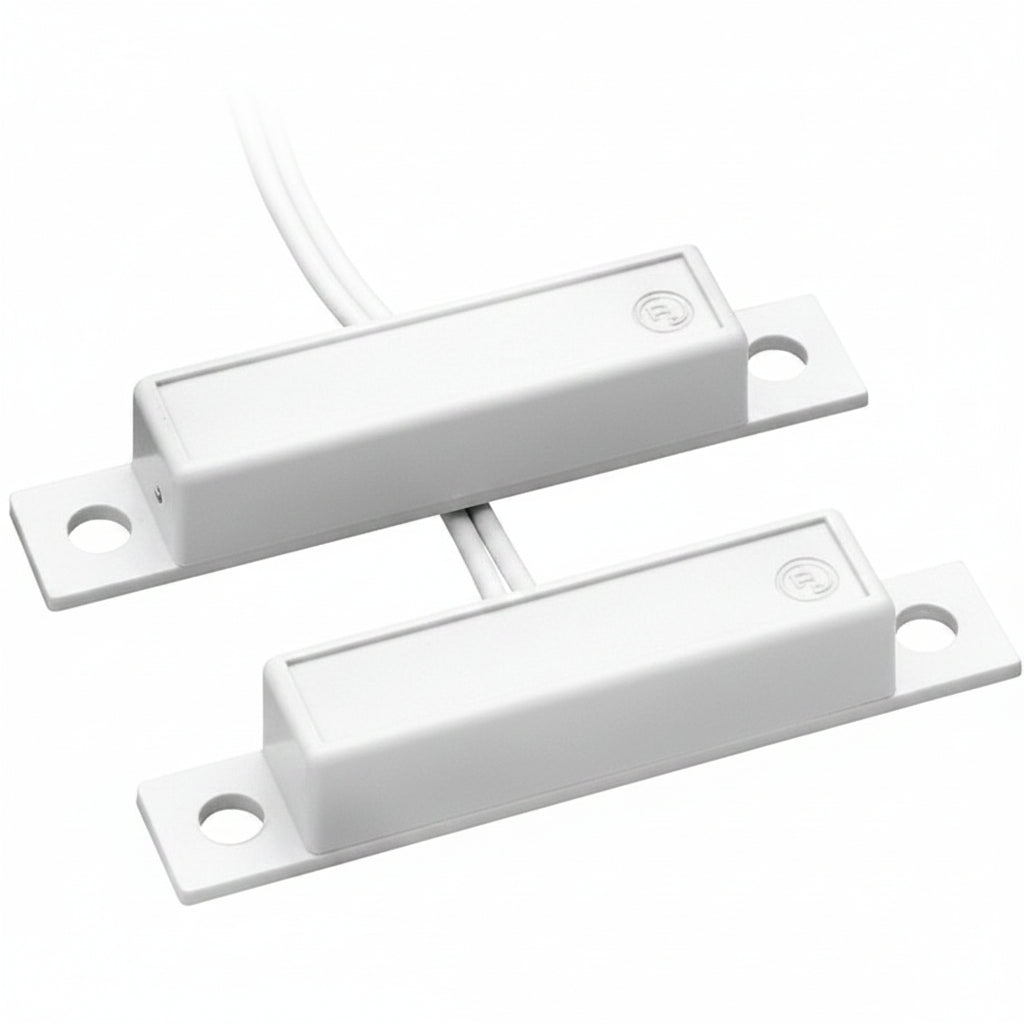

Honeywell Home 949WH Surface Mount Magnetic Contact with Leads, White

Name: Honeywell Home 949WH Surface Mount Magnetic Contact with Leads, White
Brand: Honeywell
SKU: Raz-949WH
Price: 60.99 USD
Availability: InStock

Know the moment it opens.

A surface-mount magnetic contact with a 15' lead that wires straight to the zone terminals of a wired alarm panel, so a door or window opening is reported to your security system.

$60.99

In stock

Fast shippingHoneywellSecure checkout

Honeywell 949WH Surface Mount Magnetic Contact

Door or window opensZone circuit breaks

Standard Gap: 1-1/4" (32mm)Contact Rating: 100mA at 28VDC

A wired alarm is only as good as its door sensors.

Every door and window you want covered needs a contact that reports reliably to the control panel. This one is built for exactly that job on wired systems.

Without itWithout a contact on the frame and a magnet on the moving door or window, the panel has no way to know it has been opened.

✓

With the 949WHWith the 949WH, the 15' lead connects directly to a zone terminal and the contact watches the gap between frame and door or window.

What you get

Built for wired alarm zones

A simple two-piece reed switch design that mounts on the surface of a door or window.

Hardwired 15' lead

A 15-foot zip cord 2-wire lead connects directly to zone terminals on wired alarm control panels.

Honeywell Home 949WH Surface Mount Magnetic Contact with Leads, White

1-1/4"

Standard gap (32mm)

Keep the magnet within a maximum gap of 1¼" from the contact.

Two-piece design

The contact with wire leads pairs with a matching magnet: contact on the frame, magnet on the moving door or window.

Screw mounting

Both components include two screw mounting holes, and spacers and mounting screws are included.

Standard test points

External test points come standard on the contact.

Details

Everything you need to know.

Brand	Honeywell
Model	949WH
Mount Type	Surface Mount
Connectivity Technology	Wired
Cable Length	15'
Standard Gap	1-1/4" (32mm)
Contact Rating	100mA at 28VDC
Contact Type	SPST (Single Pole Single Throw)
Color	White
Minimum Operating Temperature	-40°F
Length	2.0"
Application/Usage	Security System Sensors

Description

Honeywell Home 949WH Surface Mount Magnetic Contact with Leads, White

Surface mount magnetic reed switch contact designed for doors and windows. Features a hardwired 15-foot zip cord 2-wire lead that connects directly to zone terminals on wired alarm control panels. Compatible with VISTA systems and all standard 12V wired alarm systems. Two-piece design includes the contact with wire leads and matching magnet. Mount the contact on the door or window frame and the magnet on the moving door or window with a maximum gap of 1¼" between devices. Both components include two screw mounting holes for secure installation. Includes magnetic contact, spacers, and mounting screws. White finish.

Good to know: Mount the contact on the door or window frame and the magnet on the moving door or window, with a maximum gap of 1¼" between the two.
