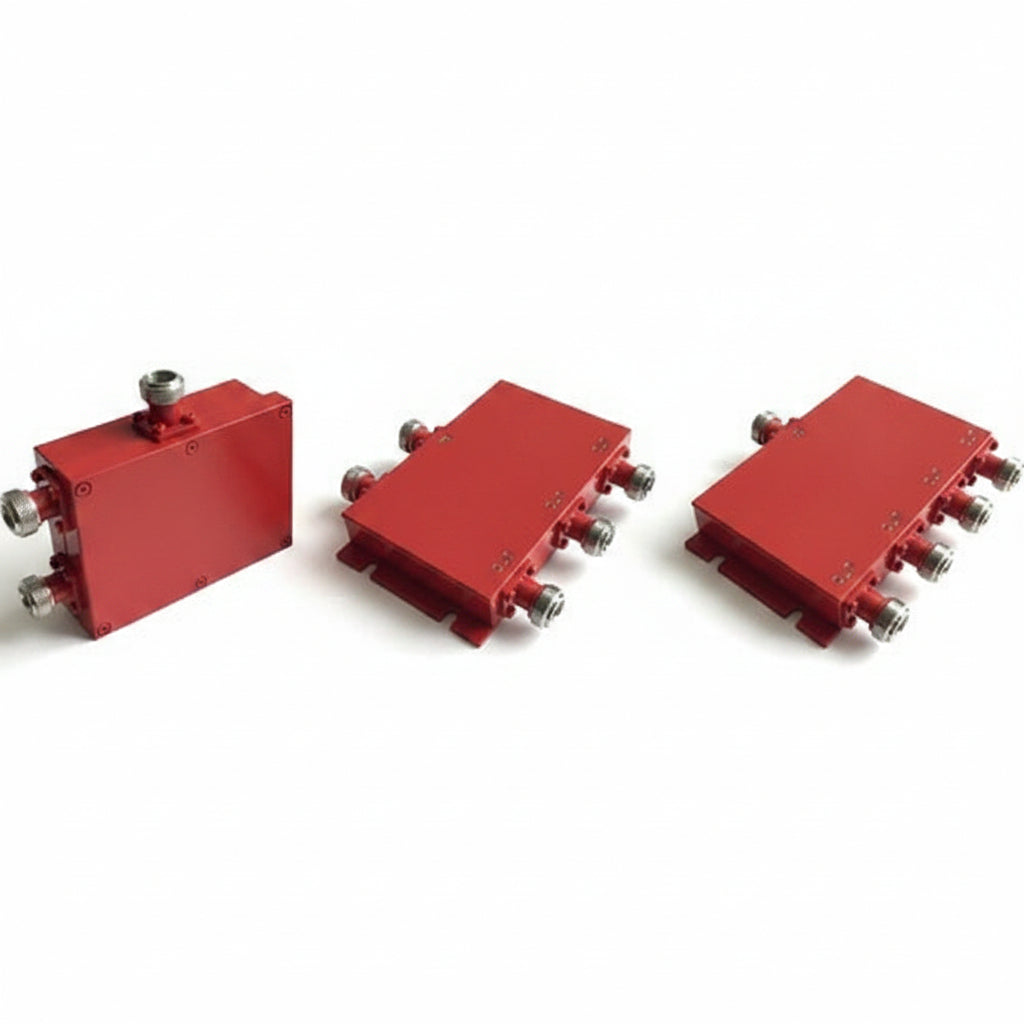

Honeywell BDA BDA-PS2-W2 Fiplex Broadband 2-Way Power Splitters, 698-2700 MHz, 50W

Name: Honeywell BDA BDA-PS2-W2 Fiplex Broadband 2-Way Power Splitters, 698-2700 MHz, 50W
Brand: Honeywell
SKU: Raz-BDA-PS2-W2
Price: 150.47 USD
Availability: InStock

Split it clean. Lose very little.

A passive 2-way Wilkinson power splitter from the Honeywell Fiplex line. It divides one RF signal across two outputs over 698MHz to 2GHz with low insertion loss.

$150.47

In stock

Fast shippingHoneywellSecure checkout

Honeywell BDA-PS2-W2 2-Way Power Splitters

One input, two outputsMultistage Wilkinson design

698MHz to 2GHzLow insertion loss, low VSWR ripple

Every split in your RF path costs you signal.

When one signal has to feed more than one place, a poorly built splitter adds loss and ripple. Both hurt performance in demanding RF applications.

Without itWithout a well-built splitter, a distribution run loses signal at the split and gets uneven response across the band.

✓

With the BDA-PS2-W2The BDA-PS2-W2 divides the signal in a multistage Wilkinson configuration with low insertion loss and low VSWR ripple.

What you get

Built for efficient distribution

A passive design that splits signal without active components or power consumption.

Multistage Wilkinson design

Passive devices designed in a multistage Wilkinson configuration for efficient signal distribution.

Honeywell BDA BDA-PS2-W2 Fiplex Broadband 2-Way Power Splitters, 698-2700 MHz, 50W

50W

Power input as splitter

Rated at 1W when used as a combiner.

Low insertion loss

Keeps signal loss low as the signal is divided between outputs.

Low VSWR ripple

Minimal VSWR ripple suits demanding RF applications.

Splitter or combiner

Power input is 50W as splitter and 1W as combiner, with other values available upon request.

Details

Everything you need to know.

Brand	Honeywell
Model	BDA-PS2-W2
Product Type	Signal Splitter
Product Line	Fiplex
Minimum Frequency	698MHz
Maximum Frequency	2GHz
Power Input (Splitter)	50W
Power Input (Combiner)	1W
Weight	8.47oz
Country of Origin	CN
Environmental Certification	RoHS

Description

Honeywell BDA BDA-PS2-W2 Fiplex Broadband 2-Way Power Splitters, 698-2700 MHz, 50W

Broadband power splitter engineered with multistage Wilkinson configuration for efficient signal distribution. Features low insertion loss and minimal VSWR ripple, making it ideal for demanding RF applications. Available in two, three, and four output port models. Standard power handling rated at 50W as splitter and 1W as combiner, with custom specifications available upon request. Passive design ensures reliable performance across broadband frequency ranges without active components or power consumption.

Good to know: Three and four output port models are available as standard, and other configurations are available upon request.
