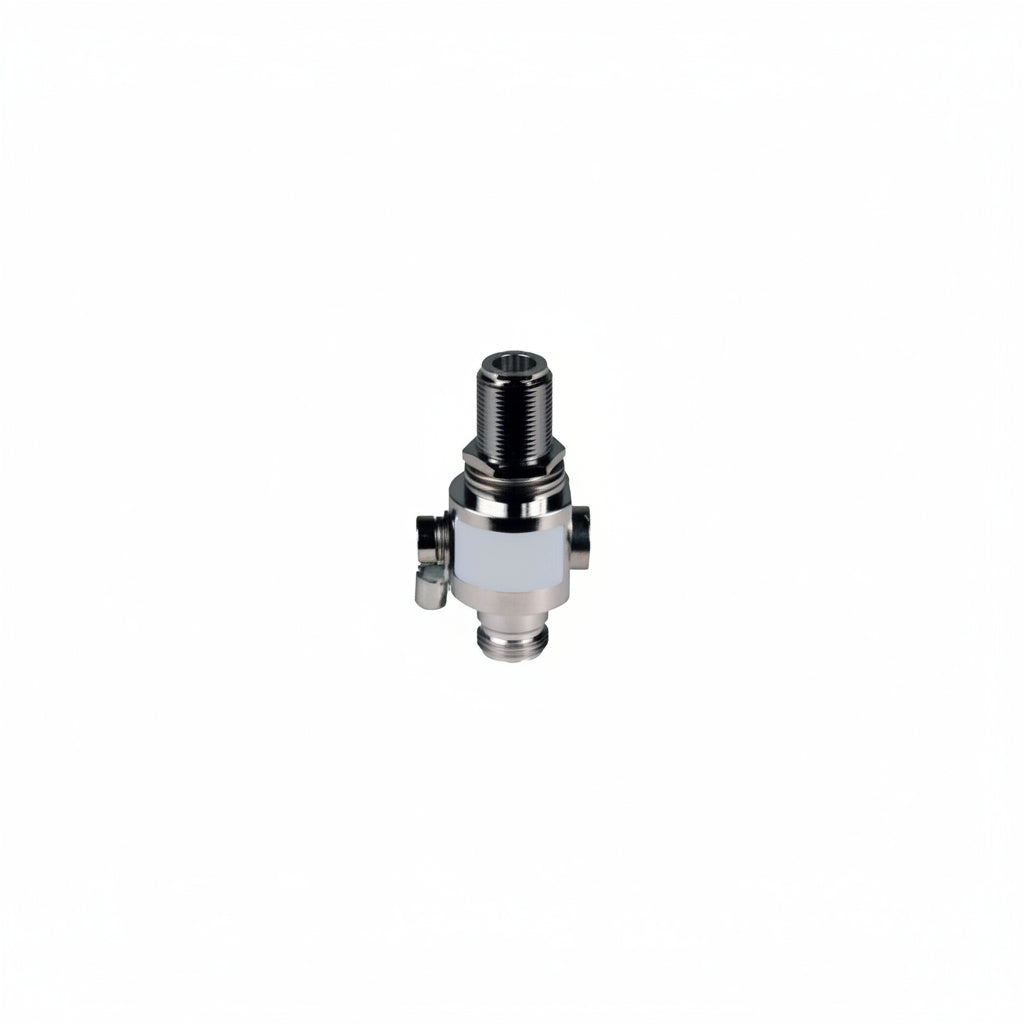

Honeywell BDA BDA-P8AX09-6G-N/FF Fiplex Coaxial Surge Protector

Name: Honeywell BDA BDA-P8AX09-6G-N/FF Fiplex Coaxial Surge Protector
Brand: Honeywell
SKU: Raz-BDA-P8AX09-6G-N/FF
Price: 213.0 USD
Availability: InStock

Stop the surge, keep the signal.

A Fiplex coaxial surge protector module that guards your RF coax connections against voltage spikes and transient damage, with insertion loss below 0.2 dB.

$213.00

In stock

Fast shippingHoneywellSecure checkout

Honeywell BDA-P8AX09-6G-N/FF Surge Protector

Coax line: surge protectedBi-directional protection

Insertion loss < 0.2 dBDC to 7 GHz, 50 Ohm

A voltage spike can travel down your coax line.

Coaxial connections carry RF signals into your equipment, and a spike or transient on the line can damage what sits at the other end. Protection belongs on the cable itself.

Without itWithout it, a surge on the coax has a direct path to your connected RF equipment.

✓

With the BDA-P8AX09-6G-N/FFWith it, surge suppression sits in the coax line while insertion loss stays below 0.2 dB.

What you get

Built to protect RF coax

Protection ratings and RF specs for coaxial lines in security, networking and RF systems.

Bi-directional protection

Surge suppression works on the coaxial line in both directions.

Honeywell BDA BDA-P8AX09-6G-N/FF Fiplex Coaxial Surge Protector

70W

Power rating

Rated for 70W power handling on the coaxial line.

Low insertion loss

Insertion loss is under 0.2 dB, so the protector adds very little loss to the signal path.

DC to 7 GHz range

The frequency range runs from DC to 7 GHz for a wide span of RF applications.

50 Ohm, 70W rated

Impedance is 50 Ohms and the power rating is 70W.

Details

Everything you need to know.

Brand	Honeywell
Model	BDA-P8AX09-6G-N/FF
Product Type	Surge Protector Module
Dataline Protection	Coaxial
Protection	Bi-directional
Impedance	50 Ohms
Insertion Loss	< 0.2 dB
Frequency Range	DC to 7 GHz
Power Rating	70W
Product Line	Fiplex
Sector	Fire
Country of Origin	CN

Description

Honeywell BDA BDA-P8AX09-6G-N/FF Fiplex Coaxial Surge Protector

Coaxial surge protector with UL listing for reliable RF signal protection. Features bi-directional surge suppression, 50 Ohm impedance, and minimal insertion loss below 0.2 dB. Supports DC to 7 GHz frequency range with 70W power rating. Ideal for safeguarding coaxial connections in security systems, networking equipment, and RF applications against voltage spikes and transient damage.

Good to know: This is a coaxial protector with 50 Ohm impedance, so it suits 50 Ohm coax lines. Confirm that your system's connectors and frequency range match before installing.
