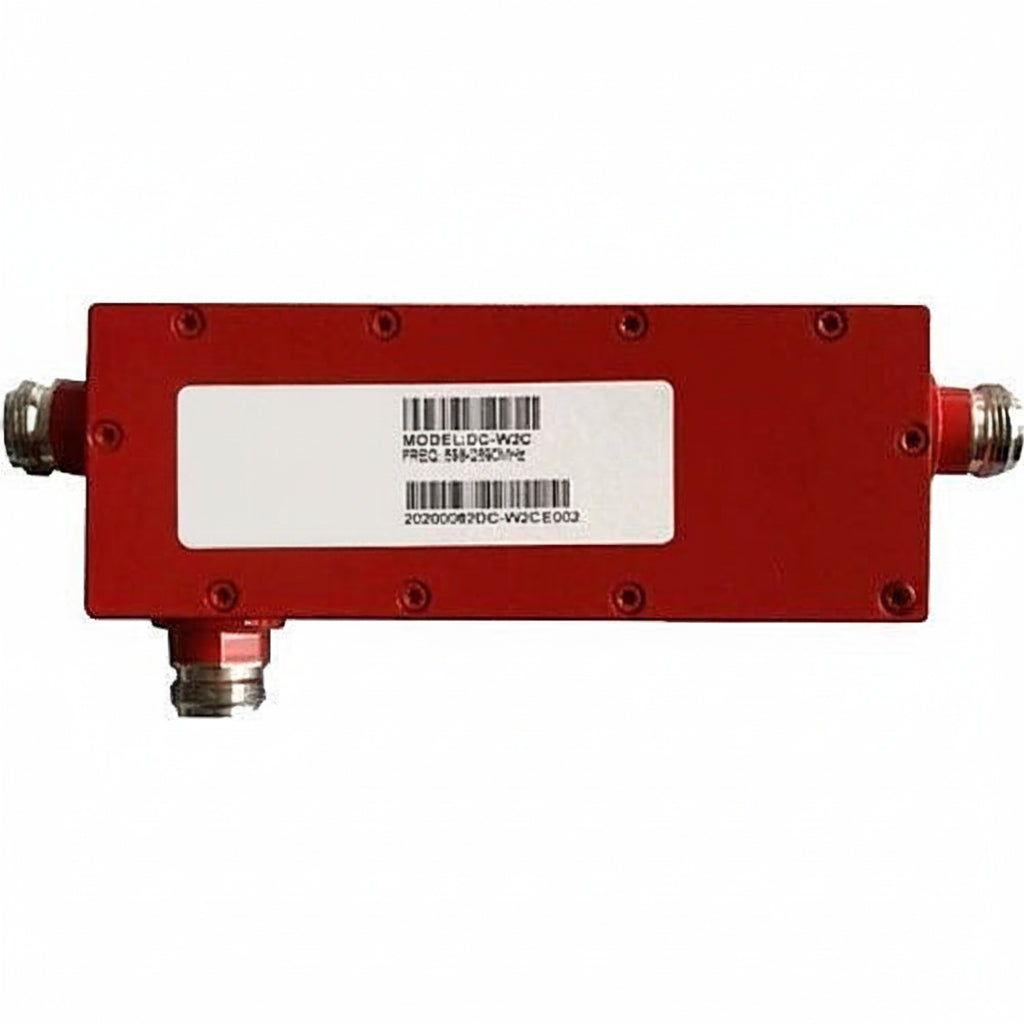

Honeywell BDA BDA-DC30-W2 Fiplex RF Directional Coupler, 698-2690 MHz, 30dB, 300W

Name: Honeywell BDA BDA-DC30-W2 Fiplex RF Directional Coupler, 698-2690 MHz, 30dB, 300W
Brand: Honeywell
SKU: Raz-BDA-DC30-W2
Price: 182.17 USD
Availability: InStock

Split the signal, keep the strength.

A passive RF directional coupler covering 698 - 2690 MHz for combining cables with minimal signal loss. It gives unequal power distribution to the output ports in in-building wireless and DAS setups.

$182.17

In stock · only 10 left

Fast shippingHoneywellSecure checkout

Honeywell BDA-DC30-W2 RF Directional Coupler

698 - 2690 MHzWideband frequency range

30 dB coupling, 300WImpedance 50 Ohms

Combining RF cables should not cost you signal.

In a BDA or DAS system, every junction can add loss and mismatch. A directional coupler with a low VSWR keeps the connection clean across the band.

Without itWithout a proper coupler, combining cables risks extra signal loss and poor port matching.

✓

With the BDA-DC30-W2With this coupler, you combine cables with minimal signal loss and a VSWR of 1.25 or less.

What you get

Built for in-building RF

A passive, wideband coupler made for BDA system integration and indoor coverage expansion.

Wideband coverage

Operates across 698 - 2690 MHz, supporting up to 2.69 GHz.

300W

Power handling

Rated for high power use in multi-carrier environments.

Minimal signal loss

Designed as a solution for combining cables with minimal signal loss.

Low VSWR

VSWR of 1.25 or less keeps reflections low at the ports.

High power handling

Rated for 300W with 30 dB coupling for demanding wireless infrastructure.

Details

Everything you need to know.

Brand	Honeywell
Model	BDA-DC30-W2
Product Type	Signal Coupler
Frequency	698 - 2690 MHz
Coupling	30 dB
Power Handling	300W
Impedance	50 Ohms
VSWR	≤1.25
Product Series	RSA
Product Line	Fiplex
Environmental Certification	RoHS
Weight	13.40oz

Description

Honeywell BDA BDA-DC30-W2 Fiplex RF Directional Coupler, 698-2690 MHz, 30dB, 300W

RF Directional Coupler for in-building wireless systems and DAS applications. Operates across 698–2690 MHz frequency range with 30 dB coupling and 300W power handling capacity. Wideband design supports public safety communications and RF signal distribution in multi-carrier environments. Suitable for BDA system integration and indoor coverage expansion. Durable construction for reliable performance in demanding wireless infrastructure deployments.

Good to know: This is a passive device that provides unequal power distribution to the output ports, so plan which port carries the coupled signal.
