Honeywell BDA BDA-AP6012J50RD-1 Trilogy AirCell 1/2" Plenum Fire Cable with Metal Raceway, CMP, NFPA-262, UL-444, CSA, FT6, 1' (0.304m), Metal Raceway, Reel, Red

Name: Honeywell BDA BDA-AP6012J50RD-1 Trilogy AirCell 1/2" Plenum Fire Cable with Metal Raceway, CMP, NFPA-262, UL-444, CSA, FT6, 1' (0.304m), Metal Raceway, Reel, Red
Brand: Honeywell
SKU: Raz-BDA-AP6012J50RD-1
Price: 52.0 USD
Availability: InStock

Fire-rated signal, plenum ready.

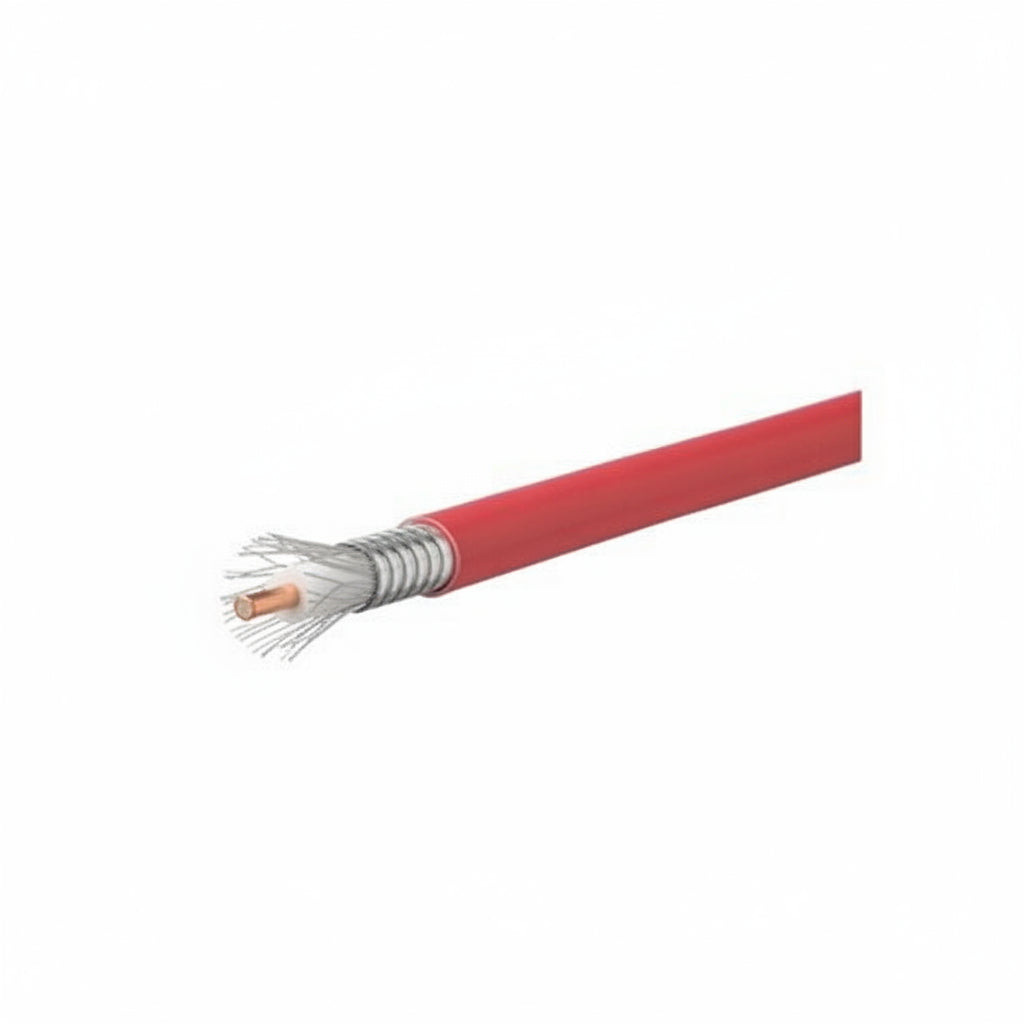

A red 1/2" corrugated coaxial cable with a jacketed design that conforms to NFPA-262, UL-444 and CSA 22.2/FT6, making it suitable for plenum environments.

$52.00

In stock

Fast shippingHoneywellSecure checkout

Honeywell BDA-AP6012J50RD-1 Plenum Fire Cable

Plenum rated, CMPNFPA-262, UL-444, CSA, FT6

Max frequency 10 GHz50 ohm impedance

Plenum spaces demand fire-rated cable.

Cable run through air-handling spaces has to meet fire standards. This cable is jacketed to conform to NFPA-262, UL-444 and Canadian CSA 22.2/FT6, making it suitable for plenum environments.

Without itWithout a plenum-rated cable, runs through plenum spaces do not meet the fire standards those spaces call for.

✓

With the BDA-AP6012J50RD-1With this cable, you get a 1/2" corrugated coax that conforms to NFPA-262, UL-444 and CSA 22.2/FT6 for plenum environments.

What you get

Built for plenum coax runs

This red corrugated coaxial cable pairs fire-standard conformance with a 50-ohm RF construction.

Plenum fire standards

The jacketed design conforms to NFPA-262, UL-444 and Canadian CSA 22.2/FT6, making it suitable for plenum environments.

Honeywell BDA BDA-AP6012J50RD-1 Trilogy AirCell 1/2" Plenum Fire Cable with Metal Raceway, CMP, NFPA-262, UL-444, CSA, FT6, 1' (0.304m), Metal Raceway, Reel, Red

10 GHz

Maximum frequency

Peak power rating is 35 KW with 94% velocity of propagation.

10 GHz frequency rating

Maximum frequency is 10 GHz, and the cable is described as rated for 6 GHz applications.

Low VSWR

VSWR typical at 700-960 / 1700-2200 MHz is 1.13 (24.3 dB).

Aluminum construction

A copper-clad aluminum center conductor pairs with a corrugated aluminum outer conductor.

Details

Everything you need to know.

Brand	Honeywell
Model	BDA-AP6012J50RD-1
Product Type	Fire Cable
Size	1/2"
Color	Red
Impedance	50 ohms
Maximum Frequency	10 GHz
Peak Power Rating	35 KW
Velocity of Propagation	94%
Center Conductor	Copper-Clad Aluminum
Outer Conductor	Corrugated Aluminum
Country of Origin	US

Description

Honeywell BDA BDA-AP6012J50RD-1 Trilogy AirCell 1/2" Plenum Fire Cable with Metal Racew...

1/2" red corrugated coaxial cable rated for 6 GHz applications. Features a jacketed design that conforms to NFPA-262, UL-444, and Canadian CSA 22.2/FT6 standards, making it suitable for plenum environments. Maximum frequency rating of 10 GHz with a peak power rating of 35 KW. VSWR typical at 700-960 / 1700-2200 MHz is 1.13 (24.3 dB). Velocity of propagation is 94% with 50-ohm impedance. Constructed with copper-clad aluminum center conductor and corrugated aluminum outer conductor. RoHS 2011/65/EU compliant. Orders above 800 ft are shipped on reels ranging from 800 ft to 1200 ft depending on available reel sizes.

Good to know: Orders above 800 ft are shipped on reels ranging from 800 ft to 1200 ft depending on available reel sizes.
