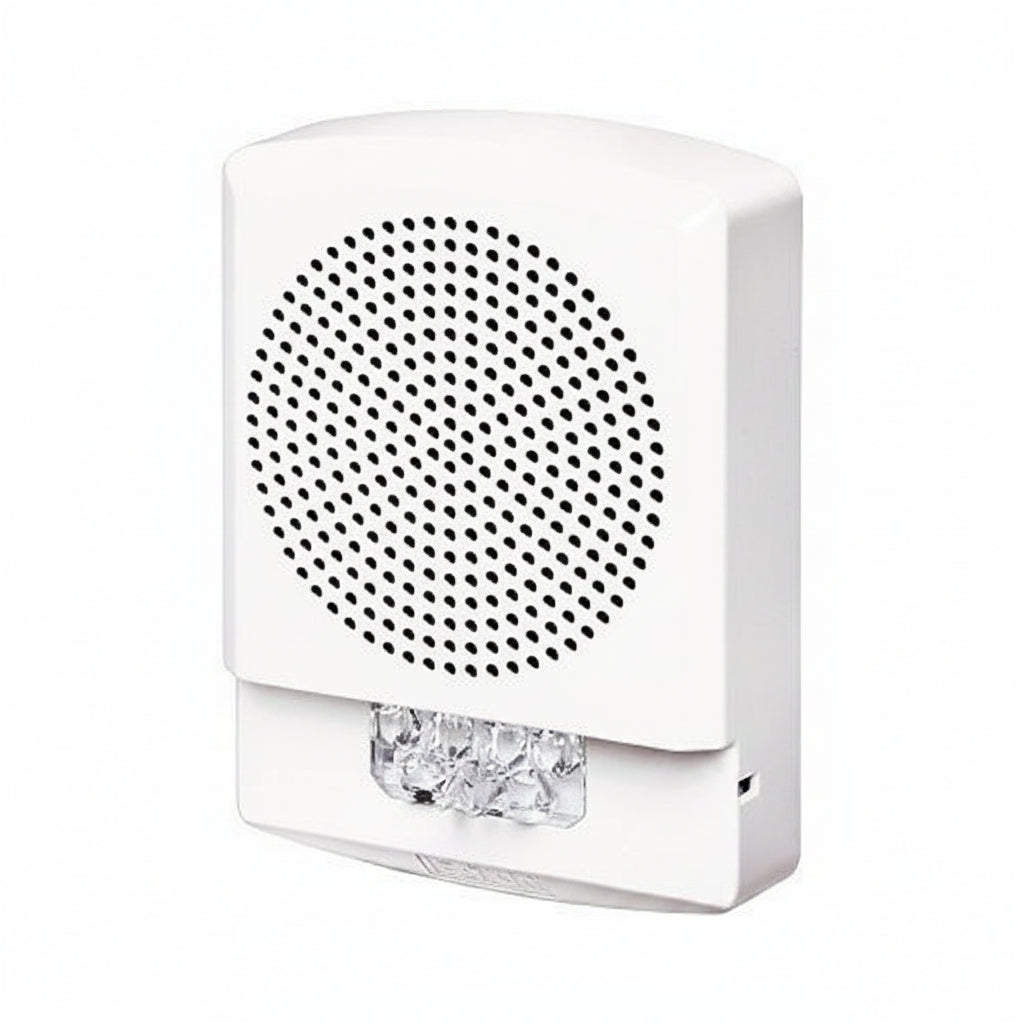

Eaton ELMTSW Wheelock Eluxa Multitone Strobe Horn, FIRE Lettering, Wall Mount, 24V, White

Wheelock Eluxa multitone horn strobe delivers eight distinct alerting sounds—Horn, Bell, March Time Horn, Code-3 Tone, Code-3 Horn, Slow Whoop, Siren, and Hi/Lo Tone—in a single compact device. Engineered to meet NFPA 72 fire and CO low frequency sounder codes for sleeping rooms without additional equipment. Advanced LED technology provides industry-leading energy efficiency with the lowest current draw across all candela settings, reducing power consumption and system costs. Six candela options (15, 30, 75, 110, 135, 185 cd) accommodate various indoor applications. Dual sound output levels—Standard and High dBA—offer flexible notification coverage. Wall-mounted design with low-profile construction suits indoor installations. Features pre-wire and pre-test capability via hinged mounting plate for simplified setup. Operates on 24V with filtered or unfiltered input voltages. Separate input terminals enable audible and strobe to function simultaneously from one input or independently using four-wire configuration. UL 1638 and 464 listed, CAN/ULC-S525 and S526 certified. Includes CSFM and Factory Mutual approvals. RoHS compliant with no mercury or hazardous substances. Fully compatible with all Fire Alarm Control Panels and backward compatible with existing Wheelock RSS strobe installations. Includes mounting plate. White housing with FIRE lettering.
