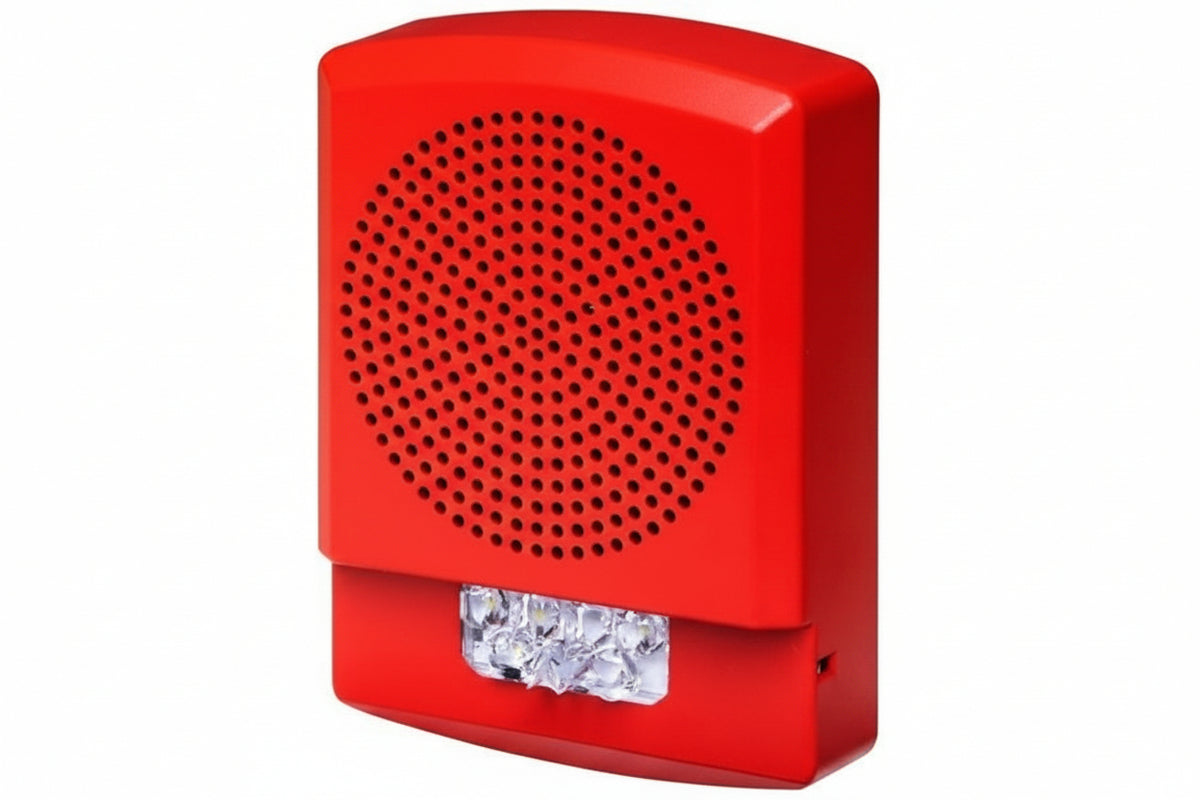

Eaton ELMTSR Wheelock Eluxa Multitone Strobe Horn, FIRE Lettering, Wall Mount, 24V, Red

Wheelock Eluxa multitone horn strobe delivers eight distinct alerting sounds in a single compact device, including Horn, Bell, March Time Horn, Code-3 Tone, Code-3 Horn, Slow Whoop, Siren, and Hi/Lo Tone. Engineered to meet NFPA 72 fire and CO low frequency sounder codes for sleeping rooms without additional equipment. Advanced LED technology provides industry-leading energy efficiency with the lowest current draw across full candela range, reducing power consumption and system costs. Six candela settings (15, 30, 75, 110, 135, 185 cd) accommodate various indoor applications. Dual sound output levels—Standard and High dBA—offer flexible notification options. Wall-mounted design features pre-wire and pre-test capability via hinged mounting plate for simplified installation. Operates on 24V with filtered or unfiltered input voltages. Separate input terminals enable audible and strobe to operate simultaneously from a single input or independently using 4-wire configuration. UL 1638 and 464 listed, CAN/ULC-S525 and S526 certified. Meets California State Fire Marshall and Factory Mutual approvals. RoHS compliant with no mercury or hazardous substances. Backward compatible with existing notification systems and can be installed alongside legacy strobe models in the same zone. Includes mounting plate. Clear lens with red housing and FIRE lettering for indoor applications.
