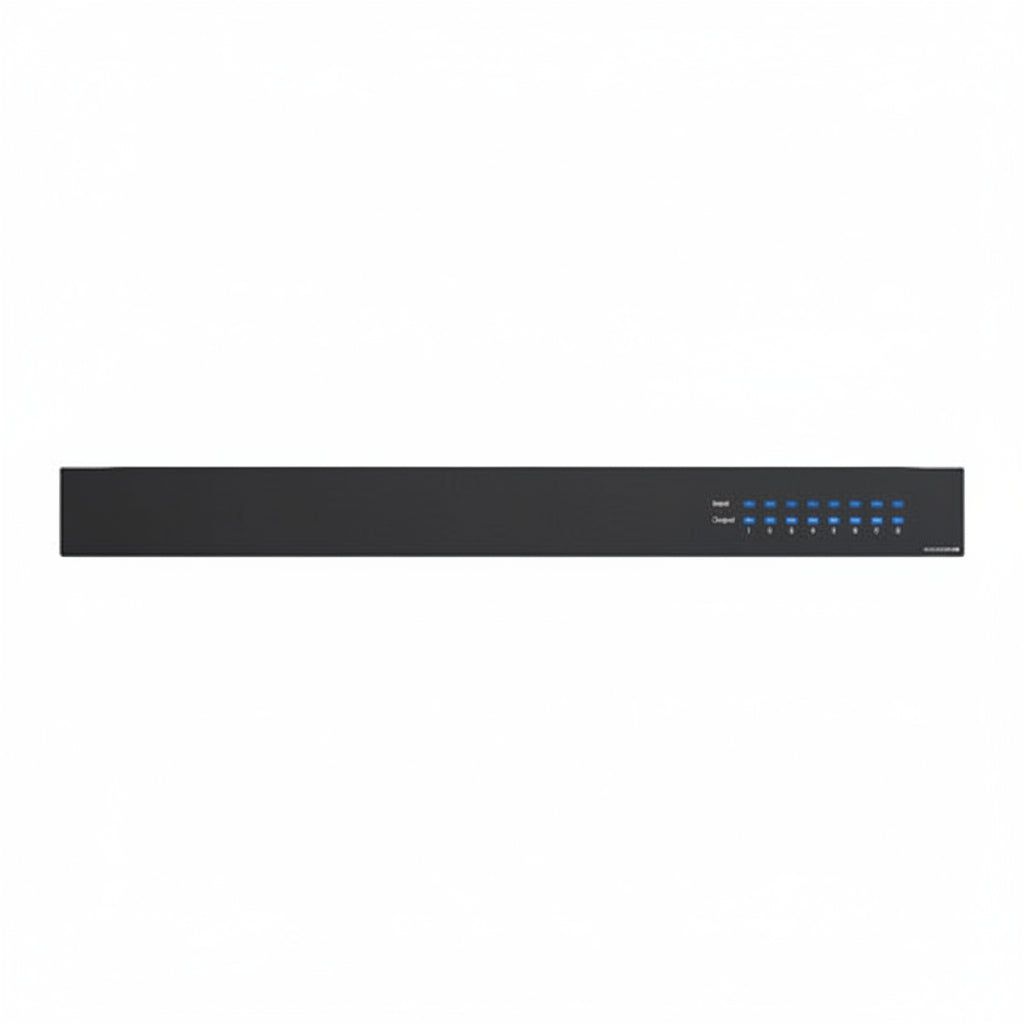

Episode EA-COM-AMP-8D-160 Business Music 8x160W Amplifier, 70-100V, 8-4 Ohms

Name: Episode EA-COM-AMP-8D-160 Business Music 8x160W Amplifier, 70-100V, 8-4 Ohms
Brand: Episode
SKU: Raz-EA-COM-AMP-8D-160
Price: 2898.0 USD
Availability: InStock

Power every room. Control it all.

An 8-channel, 1U business music amplifier with selectable 70V, 100V, 8-ohm and 4-ohm outputs, built for background music, paging and speech in restaurants, gyms and retail spaces.

$2,898.00

In stock

Fast shippingEpisodeSecure checkout

Episode EA-COM-AMP-8D-160 8x160W Amplifier

Selectable 70V/100V/8/4-ohm80-350W output per channel

1U rack designOvrC and IP control

One building, many zones, one amp rack.

Commercial spaces need music, paging and speech to cover several areas without a rack full of mismatched gear. Flexible outputs and built-in processing keep the system simple.

Without itWithout it, you juggle separate amps, outputs that do not match your speakers, and settings anyone can change.

✓

With the EA-COM-AMP-8D-160With it, channels share power dynamically, DSP handles EQ and compression, and lockout protects your settings.

What you get

Built for commercial audio

Flexible outputs, built-in processing and remote control in a single 1U unit.

Selectable outputs

Choose 70V, 100V, 8-ohm or 4-ohm outputs, with 80-350W per channel.

Episode EA-COM-AMP-8D-160 Business Music 8x160W Amplifier, 70-100V, 8-4 Ohms

amplifier channels

Eight channels of 80-350W output each, in a 1U rack design.

Shared channel power

Channels share power dynamically, so the power goes where it is needed.

Built-in DSP

EQ and Compression DSP with matrixing gives flexible control over your audio.

Remote and secure

IP control and OvrC compatibility support remote setup, and color-coded buttons with lockout secure settings.

Details

Everything you need to know.

Brand	Episode
Model	EA-COM-AMP-8D-160
Product Type	Amplifier
Maximum Frequency Response	20kHz
OvrC Enabled	Yes
Dimensions	19" x 1.75" x 14"
Weight	12.00lb
Operating Humidity	20-90% (Non-condensing)
Storage Temperature	14-122°F
Certifications & Standards	CE
Product Series	Episode Business Music Solution

Description

Episode EA-COM-AMP-8D-160 Business Music 8x160W Amplifier, 70-100V, 8-4 Ohms

The Episode Business Music Amplifier delivers professional-grade audio performance for commercial environments. With selectable 70V/100V/8-ohm/4-ohm outputs and 80-350W per channel, it powers background music, paging, and speech applications across restaurants, gyms, and retail spaces. Built-in DSP provides powerful EQ, compression, and matrixing for flexible audio management. Smart channel linking shares power dynamically, while the compact 1U rack-mount design maximizes space efficiency. IP control and OvrC integration enable remote setup, monitoring, and configuration for seamless installation and operation. Color-coded buttons with lockout protection secure your settings. Backed by a 5-Year Limited Warranty covering parts and labor on all defective components under normal use conditions.

Good to know: Pressing the tac button changes the output impedance. Color Mapping: 4 ohm = green.
