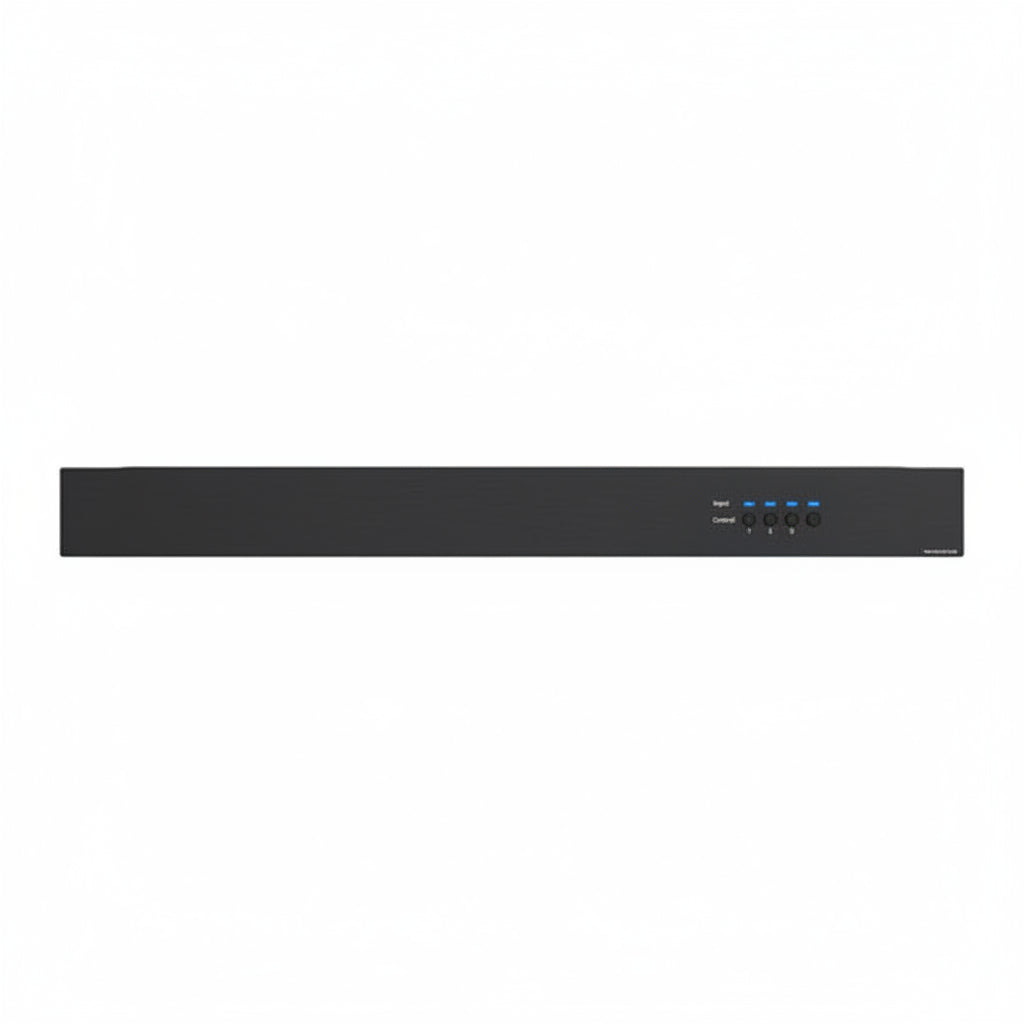

Episode EA-COM-AMP-4D-80 Commercial Series 4-Channel 80W Digital Amplifier with 70V/8 Ohms Support

Name: Episode EA-COM-AMP-4D-80 Commercial Series 4-Channel 80W Digital Amplifier with 70V/8 Ohms Support
Brand: Episode
SKU: Raz-EA-COM-AMP-4D-80
Price: 1380.0 USD
Availability: InStock

One rack space. Every zone covered.

A 1U, 4-channel digital amplifier with built-in DSP and matrixing for restaurants, gyms and retail spaces. It handles background music, paging and multi-zone audio.

$1,380.00

In stock

Fast shippingEpisodeSecure checkout

Episode EA-COM-AMP-4D-80 80W Digital Amplifier

4 channels, 80-350W per channelMaxShare power sharing

70V, 100V, 8-ohm, 4-ohmSet with rear panel buttons

Multi-zone audio needs more than a stack of amps.

Restaurants, gyms and retail floors often need music in several areas, paging on top, and one place to manage it all. Space in the rack is limited too.

Without itYou juggle separate amplifiers, mixers and processors, each taking up rack space and needing its own setup.

✓

With the EA-COM-AMP-4D-80Four amplified channels, DSP, matrixing and IP control sit in one 1U unit that you can monitor and configure through OvrC.

What you get

Built for commercial sound

Power, processing and control are combined in a single rack unit.

Intelligent power sharing

MaxShare Power Technology shares power across the four channels, delivering 80-350W per channel.

Episode EA-COM-AMP-4D-80 Commercial Series 4-Channel 80W Digital Amplifier with 70V/8 Ohms Support

Channels of direct drive amplification

Each channel can be configured individually from the rear panel.

Built-in DSP and matrixing

EQ, compression and matrixing are included for clear, customizable audio tailored to your space.

Flexible outputs

Supports 70V, 100V, 8-ohm and 4-ohm configurations, set per output with color-coded rear panel buttons.

Control and remote management

Remote input for automatic action triggering, IP control and OvrC support for remote monitoring, configuration and troubleshooting.

Details

Everything you need to know.

Brand	Episode
Model	EA-COM-AMP-4D-80
Product Type	Amplifier
Product Series	Episode Business Music Solution
Application/Usage	Corporate Building
Maximum Frequency Response	20kHz
Dimensions	19" x 1.75" x 14"
Weight	9.00lb
Operating Temperature	14-122°F
Storage Temperature	-22-158°F
Operating Humidity	20-90% (Non-condensing)
OvrC Enabled	Yes

Description

Episode EA-COM-AMP-4D-80 Commercial Series 4-Channel 80W Digital Amplifier with 70V/8 O...

The Episode Business Music Amplifier is a professional-grade audio solution built for commercial spaces including restaurants, gyms, and retail environments. This compact 1U amplifier delivers 80-350W per channel with intelligent power sharing, supporting multiple output configurations: 70V, 100V, 8-ohm, and 4-ohm. Advanced DSP features include powerful EQ, compression, and built-in matrixing for clear, customizable audio performance tailored to your space. Control and integration are seamless with color-coded buttons, 2-pin contact closure configuration, and IP control capabilities. OvrC support enables remote monitoring, configuration, and troubleshooting from anywhere, making installation and ongoing management effortless. The space-efficient design fits standard 1U racks, ideal for background music, paging systems, and multi-zone audio distribution. Backed by a 5-Year Limited Warranty covering parts and labor on defective components under normal use conditions, this amplifier provides reliable performance and peace of mind for your commercial audio infrastructure.

Good to know: Operating humidity must stay between 20-90% and non-condensing, and operating temperature between 14-122°F.
