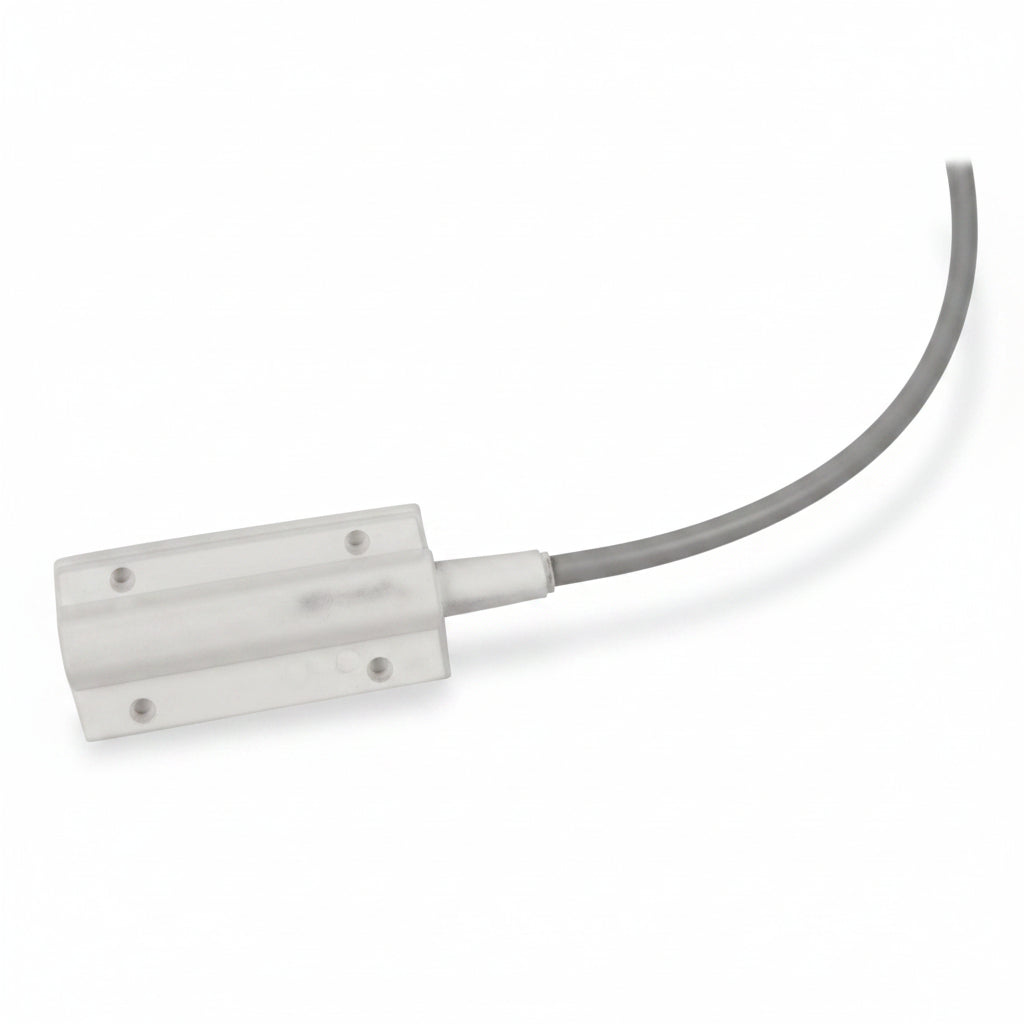

ADI PRO 0E-CBLMPULL3 Surface Mount Magnetic Contact

Name: ADI PRO 0E-CBLMPULL3 Surface Mount Magnetic Contact
Brand: ADI PRO
SKU: Raz-0E-CBLMPULL3
Price: 86.99 USD
Availability: InStock

Know the moment it opens.

A surface mount magnetic contact with 36" armored leads and high impact construction, made for indoor commercial installs that need a simple, durable way to sense an opening.

$86.99

In stock

Fast shippingADI PROSecure checkout

36" armored leadsSurface mount, easy to install

Closed loop, Form AReed Form N/O

A security system is only as good as its sensors.

A contact that is awkward to mount or built to a low standard can leave a protected opening unmonitored. Installers need a sensor that goes on quickly and keeps performing.

Without itWithout a dependable contact, an opening goes unwatched or the sensor needs repeat service calls.

✓

With the 0E-CBLMPULL3With the 0E-CBLMPULL3, you surface mount a high impact contact with 36" armored leads and a closed loop, Form A circuit.

What you get

Built for a clean install

Every detail here is aimed at fast mounting and consistent performance once it is in place.

Surface mount design

Easy installation surface mount means no cutting or recessing is described as part of the setup.

36"

Armored leads

36" (91.4cm) of armored lead comes attached to the contact.

36" armored leads

The 36" (91.4cm) armored leads give you a protected run of cable straight from the contact.

High impact construction

The plastic housing is built for durability and consistent performance.

Closed loop reed switch

Reed Form N/O with a closed loop, Form A contact, rated up to 100VDC/AC, 500mA, 7.5W.

Details

Everything you need to know.

Brand	ADI PRO
Model	0E-CBLMPULL3
Contact Form	Form A
Contact Type	Closed Loop
Reed Form	N/O
Max. Contact Rating	100VDC/AC, 500mA, 7.5W
Lead Length	36" (91.4cm), armored
Dimensions (L x W x H)	3.438" x 1.625" x 0.563" (87.3 x 41.3 x 14.3mm)
Color	White
Material	Plastic
Indoor/Outdoor	Indoor
Installation Type	Commercial

Description

ADI PRO 0E-CBLMPULL3 Surface Mount Magnetic Contact

The ADI PRO 0E-CBLMPULL3 is a crush-resistant surface mount magnetic contact ideal for indoor commercial and residential security applications. Features easy installation with 36" armored leads and high-impact construction for reliable, consistent performance. Reed switch Form N/O with closed loop design handles up to 100VDC/AC at 500mA (7.5W max). Compact dimensions of 3.438" x 1.625" x 0.563" fit seamlessly into tight spaces. Backed by a 1-year warranty for peace of mind.

Good to know: This contact is listed for indoor use, and its maximum contact rating is 100VDC/AC, 500mA, 7.5W, so keep your loop within that rating.
