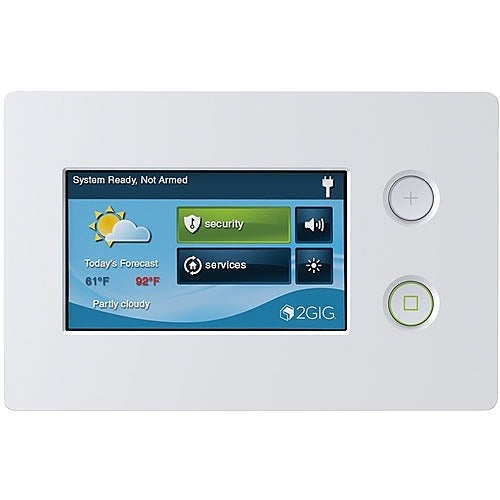

2GIG TS2-E Wireless 900MHz Touchscreen Keypad for GC2e Security Systems
Control from every room.
A wireless secondary touchscreen keypad for 2GIG GC2e security panels. It mirrors the panel's full-color interface so you can arm, disarm and check zones from another spot.

The panel is never where you are.
A single panel means walking back to it to arm, disarm or check a zone. A secondary keypad puts the same controls where you actually need them.
Your GC2e panel, extended
The TS2-E brings the GC2e interface to additional points around your property.
Mirrors the main panel
The full-color touchscreen replicates the GC2e panel interface for consistent, easy operation from a secondary location.

Open-air range
900 MHz bi-directional communication, measured in open air.
900 MHz frequency-hopping
Bi-directional 900 MHz communication offers up to 500 feet of open-air range for reliable coverage.
Z-Wave device control
Manage lights, locks, thermostats and other connected devices from the keypad.
Up to four keypads
Each system supports up to four keypads, for access and control from multiple points.
Everything you need to know.
| Brand | 2GIG |
| Model | TS2-E |
| Type | Wireless secondary touchscreen keypad |
| Compatible panel | 2GIG GC2e |
| Frequency | 900 MHz frequency-hopping spread-spectrum |
| Range | Up to 500 feet open-air |
| Display | Full-color LCD touchscreen |
| Keypads per system | Up to four |
| Power | Plug-in via 2GIG-AC2 adapter |
| Dimensions | 6.7"W x 4.3"H x 0.9"D |
| Required module | 2GIG-XCVR2e-345 900 MHz transceiver in the GC2e panel |
| Updates | Over-the-air firmware updates |
2GIG TS2-E Wireless 900MHz Touchscreen Keypad for GC2e Security Systems
Arm or disarm your system, monitor zone status, and access Z-Wave smart home controls directly from the keypad. Manage connected lights, locks, thermostats, and other smart devices integrated with your GC2e panel. The TS2-E supports up to four keypads per system, allowing comprehensive access from multiple locations.
Features include plug-in power via the 2GIG-AC2 adapter, over-the-air firmware updates, audible system chimes and alerts, and an idle dimming display to conserve energy. The sleek wall-mounted design (6.7"W × 4.3"H × 0.9"D) complements modern décor. Note: requires the 2GIG-XCVR2e-345 900 MHz transceiver module installed in the GC2e panel for operation.
Full-color touchscreen display replicates GC2e panel interface for consistent, easy operation from a secondary location
900 MHz frequency-hopping bi-directional communication with up to 500 feet open-air range for reliable coverage
Full Z-Wave smart home device control—manage lights, locks, thermostats, and connected devices from the keypad
Support for up to four keypads per system enables comprehensive access and control from multiple points
Over-the-air firmware updates keep the keypad current with latest features and performance enhancements
Plug-in power with 2GIG-AC2 adapter and audible system chimes provide straightforward operation and clear feedback
Need help with compatibility?
Looking for a manufacturer part number, compatible replacement, or quantity order? Contact Raztechs for sourcing and quote support.

2GIG TS2-E, ready to order.
- Type: Wireless secondary touchscreen keypad
- Compatible panel: 2GIG GC2e
- Frequency: 900 MHz frequency-hopping spread-spectrum
- Range: Up to 500 feet open-air
